Siemens 5TG1231
DELTA i-system carbon metallic Cover plate UAE connection socket suitable for Ackermann Cat. 3 2x 8-pole
- MPN
- 5TG1231
- Category
- Communication
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 5TG1231?

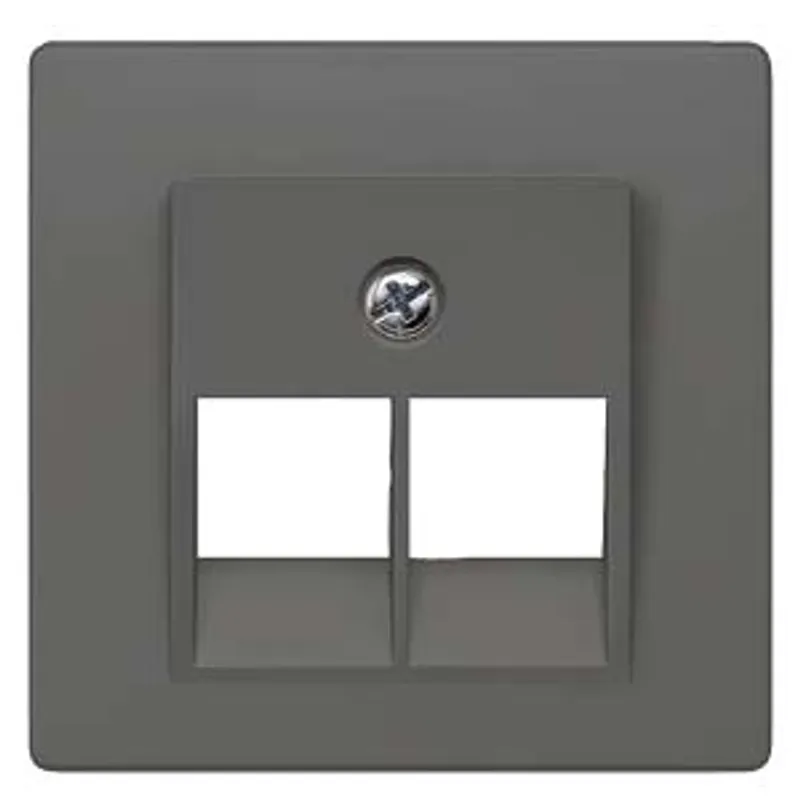

DELTA i-system carbon metallic Cover plate UAE connection socket suitable for Ackermann Cat. 3 2x 8-pole, 55x 55 mm
Specifications
Model
| product brand name | DELTA |
| product designation | Cover plates, for UAE outlet box, Cat.3, double |
| design of the product | Communication |

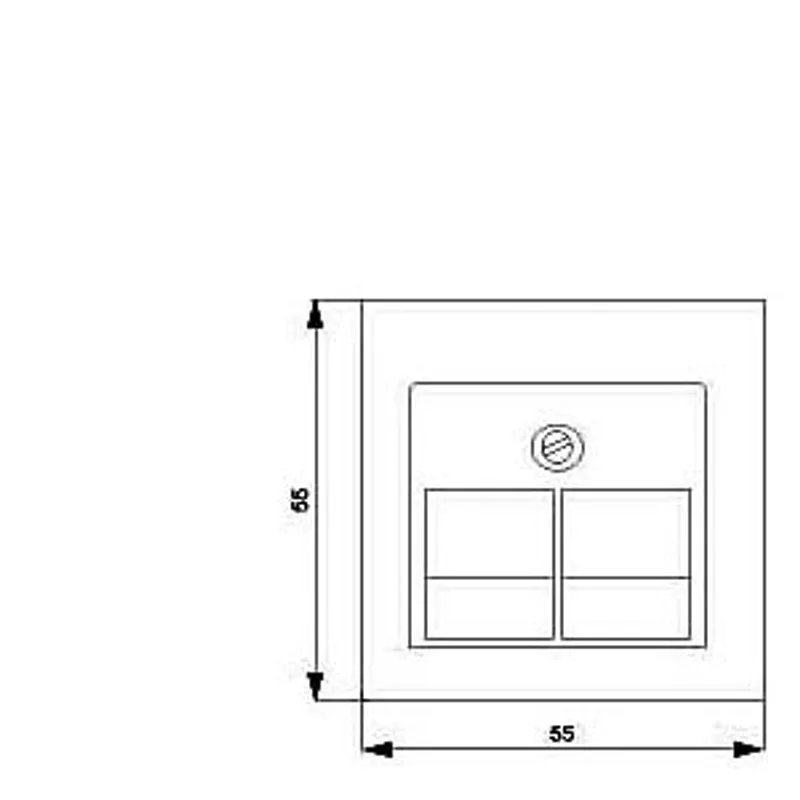

| cover plate version | 55x55 mm |
| type of composition | central plate |
General technical data
| mounting type | flush mounting |
| surface processing | others |
| product feature printed marking | No |
| material | thermoplastic |
Protection class
| protection class IP | IP20 |
Suitability
| suitability for use | UAE/IAE |
Appearance
| appearance | shiny |
| RAL color number (similar) | 7 016 |
| color | carbon metallic |
Product details
| product feature luster terminal | No |
| product feature dust cover | No |
| product component — labeling field | No |
| product component — hinged lid | No |
| product component — strain relief | No |
| product feature halogen-free | Yes |
| product feature transparent | No |
Mechanical Design
| height | 55 mm |
| fastening method | screw mounting |
| Net Weight | 11 g |
| material | plastic |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5TG1231: frequently asked questions
When can 5TG1231 be shipped?
5TG1231 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5TG1231 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5TG1231 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TG1231, subject to availability and destination.
