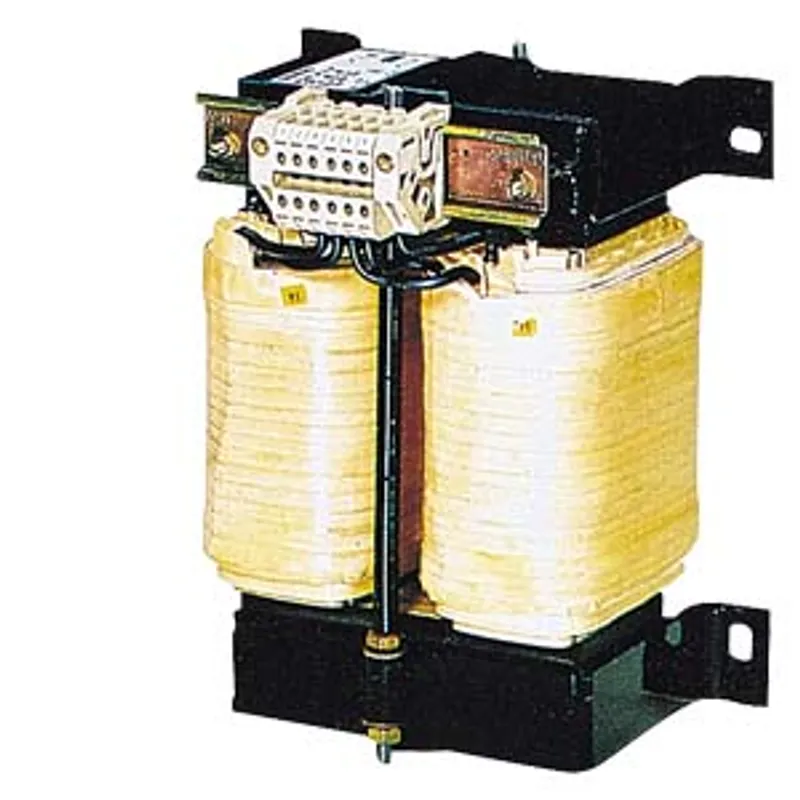

Siemens 4AT3032-5AT10-0FD0
Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 3.15 /16; Upri(V): 400+/-5%; Usec(V): 230; Isec(A): 13.7
- MPN
- 4AT3032-5AT10-0FD0
- Category
- Transformers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 4AT3032-5AT10-0FD0?
transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 3.15 /16; Upri(V): 400+/-5%; Usec(V): 230; Isec(A): 13.7; F(Hz): 50...60; vector group/shielding winding: II0 /0; temperature rise/insulation class: 55 /H; IP54; connection: screw connection; mounting: screws; EN 61558-2-1, -2-2, -2-4 >UL/CSA-recognized control transformer isolation transformer<
Specifications
General technical data
| product designation | transformer SITAS |
| product brand name | SIDAC |
| operating apparent power rated value | 3 150 VA |
| efficiency | 0.95 |
| connection method for transformers | Ii0 |
| certificate of suitability | CE / cRUus |
| product function — temperature monitoring | No |
| product function — insulation monitoring | No |
| product function — short-circuit and overload proof | No |
| number of shielding windings | 0 |
| short-term vector power | 17 800 VA |
Inputs
| phase number of the inputs | 1 |
| input voltage — _1 rated value | 420 V |
| input voltage — _2 rated value | 400 V |
| input voltage — _3 rated value | 380 V |
| electrical input frequency — minimum | 50 Hz |
| electrical input frequency — maximum | 60 Hz |
Outputs
| phase number of the outputs | 1 |
| output voltage — _1 rated value | 230 V |
| electrical output frequency — maximum | 60 Hz |
| electrical output frequency — minimum | 50 Hz |
Ambient conditions
| thermal class according to IEC 60085 | H |
| ambient temperature rated value | 55 °C |
| protection class IP | IP54 |
Mechanical data
| type of electrical connection — at output for main current circuit | screw-type terminals |
| type of electrical connection — at input for main current circuit | screw-type terminals |
| fastening method | screws |
| construction form of the iron core | UI 150/75 |
| width | 0.351 m |
| height | 0.395 m |
| depth | 0.33 m |
