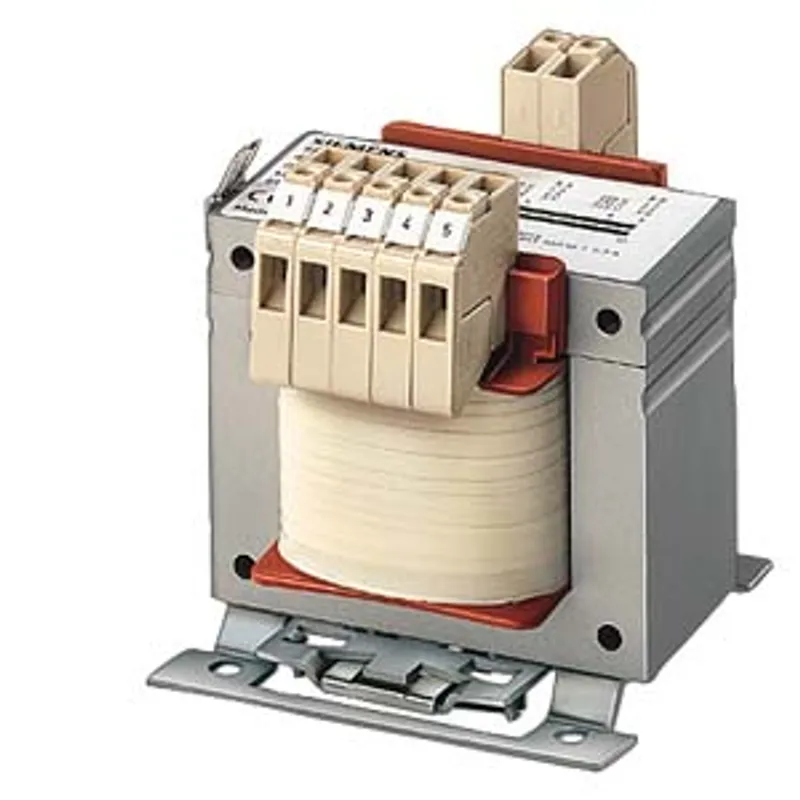

Siemens 4AM4042-5CT10-0FA0
Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.25 /0.85; Upri(V): 440+/-5%; Usec(V): 230; Isec(A): 1.09
- MPN
- 4AM4042-5CT10-0FA0
- Category
- Transformers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 4AM4042-5CT10-0FA0?
transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.25 /0.85; Upri(V): 440+/-5%; Usec(V): 230; Isec(A): 1.09; F(Hz): 50...60; vector group/shielding winding: II0 /0; temperature rise/insulation class: 40 /B; IP00; connection: screw/flat-type connection; mounting: screws / DIN rail; EN 61558-2-1, -2-2, -2-4 >UL/CSA-recognized control transformer isolation transformer<
Specifications
General technical data
| product designation | transformer SITAS |
| product brand name | SIDAC |
| operating apparent power rated value | 250 |
| efficiency | 0.89 |
| connection method for transformers | Ii0 |
| certificate of suitability | CE / cRUus |
| product function – temperature monitoring | No |
| product function – insulation monitoring | No |
| product function – short-circuit and overload proof | No |
| number of shielding windings | 0 |
| short-term vector power | 850 |
| relative short-circuit voltage | 5.4 |
Inputs
| phase number of the inputs | 1 |
| input voltage – _1 rated value | 462 |
| input voltage – _2 rated value | 440 |
| input voltage – _3 rated value | 418 |
| electrical input frequency – minimum | 50 |
| electrical input frequency – maximum | 60 |
Outputs
| phase number of the outputs | 1 |
| output voltage – _1 rated value | 230 |
| electrical output frequency – maximum | 60 |
| electrical output frequency – minimum | 50 |
Ambient conditions
| thermal class according to IEC 60085 | B |
| ambient temperature rated value | 40 |
| protection class IP | IP00 |
Mechanical data
| type of electrical connection – at output for main current circuit | screw-type terminals / tab terminals |
| type of electrical connection – at input for main current circuit | screw-type terminals / tab terminals |
| fastening method | screws / DIN rail |
| construction form of the iron core | EI 96/58 |
| width | 0.098 |
| height | 0.106 |
| depth | 0.118 |
