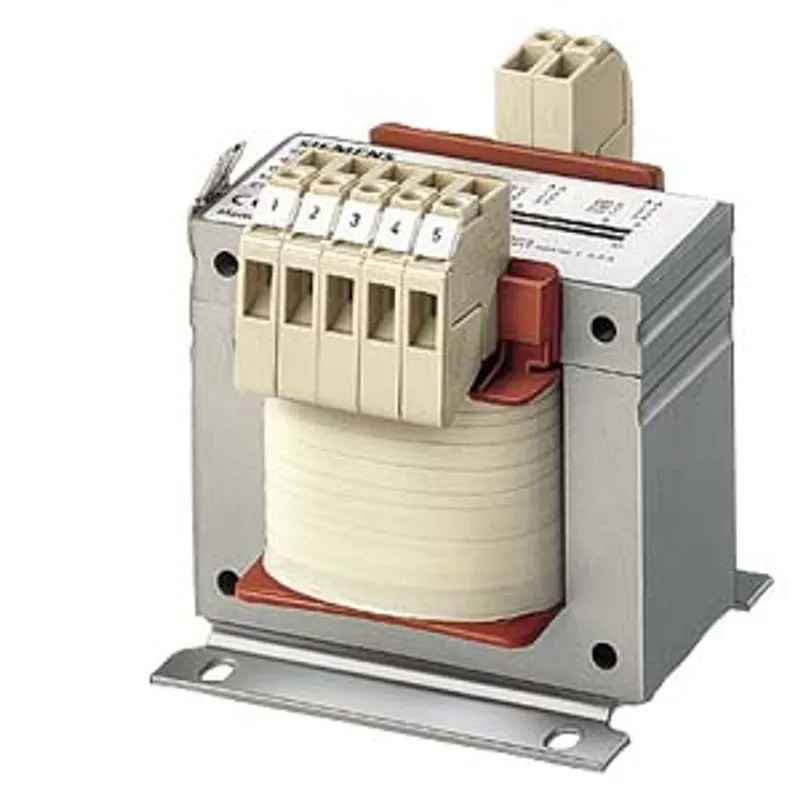

Siemens 4AM3442-5AT10-0FD0
Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.08 /0.31; Upri(V): 400+/-5%; Usec(V): 230; Isec(A): 0.35
- MPN
- 4AM3442-5AT10-0FD0
- Category
- Transformers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 4AM3442-5AT10-0FD0?
transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.08 /0.31; Upri(V): 400+/-5%; Usec(V): 230; Isec(A): 0.35; F(Hz): 50...60; vector group/shielding winding: II0 /0; temperature rise/insulation class: 40 /B; IP54; connection: screw/flat-type connection; mounting: screws / DIN rail; EN 61558-2-1, -2-2, -2-4 >UL/CSA-recognized control transformer isolation transformer<
Specifications
General technical data
| product designation | transformer SITAS |
| product brand name | SIDAC |
| operating apparent power rated value | 80 V·A |
| efficiency | 0.86 |
| connection method for transformers | Ii0 |
| certificate of suitability | CE / cRUus |
| product function — temperature monitoring | No |
| product function — insulation monitoring | No |
| product function — short-circuit and overload proof | No |
| number of shielding windings | 0 |
| short-term vector power | 310 V·A |
| relative short-circuit voltage | 7.7 % |
Inputs
| phase number of the inputs | 1 |
| input voltage — _1 rated value | 420 V |
| input voltage — _2 rated value | 400 V |
| input voltage — _3 rated value | 380 V |
| electrical input frequency — minimum | 50 Hz |
| electrical input frequency — maximum | 60 Hz |
Outputs
| phase number of the outputs | 1 |
| output voltage — _1 rated value | 230 V |
| electrical output frequency — maximum | 60 Hz |
| electrical output frequency — minimum | 50 Hz |
Ambient conditions
| thermal class according to IEC 60085 | B |
| ambient temperature rated value | 40 °C |
| protection class IP | IP54 |
Mechanical data
| type of electrical connection — at output for main current circuit | screw-type terminals / tab terminals |
| type of electrical connection — at input for main current circuit | screw-type terminals / tab terminals |
| fastening method | screws / DIN rail |
| construction form of the iron core | EI 84/42 |
| width | 0.086 m |
| height | 0.098 m |
| depth | 0.102 m |
