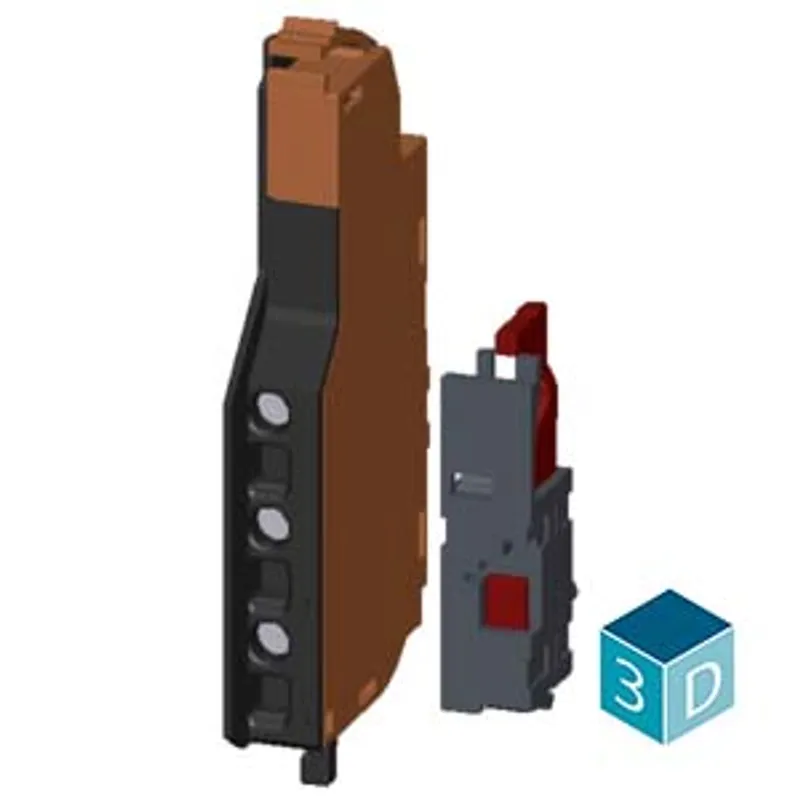

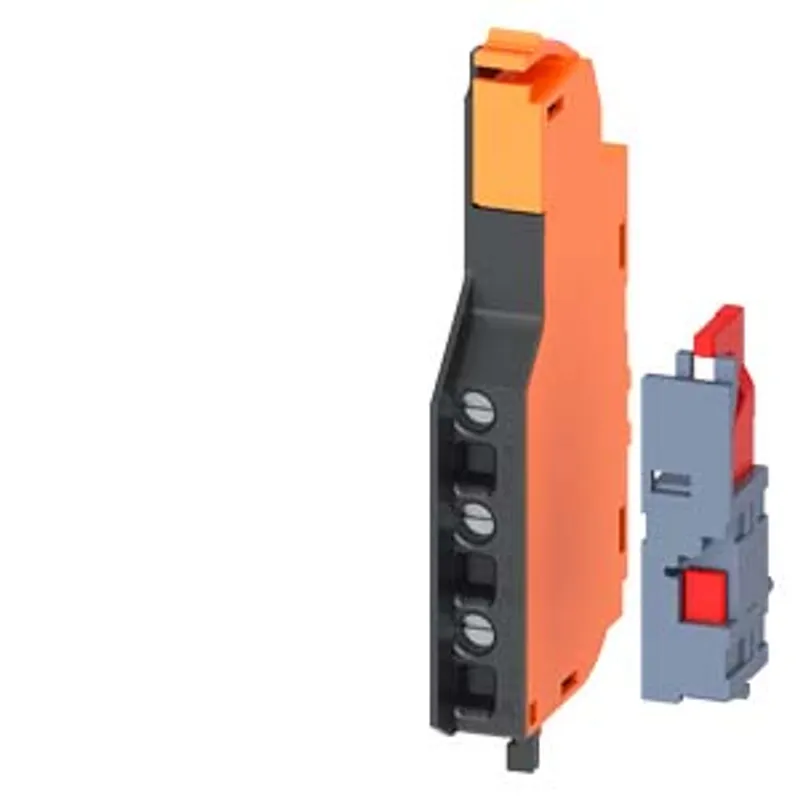

Siemens 3VA9988-0AB34
Short circuit alarm switch changeover contacts Type HQ (7 mm) accessory for: 3VA12/13/14
- MPN
- 3VA9988-0AB34
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 3VA9988-0AB34?

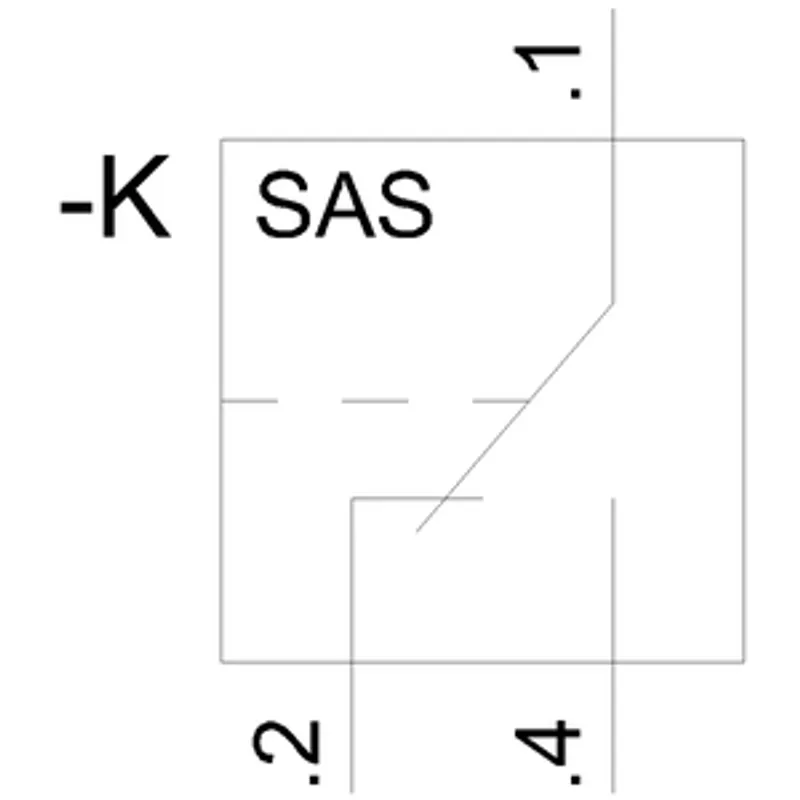

short circuit alarm switch changeover contacts Type HQ (7 mm) accessory for: 3VA12/13/14
Specifications
Model
| product brand name | SENTRON |
| product designation | Short-circuit signaling switch |
| accessories | Short-circuit signaling switch |
General technical data
| degree of pollution | 3 |
| overvoltage category | III |
Voltage
| surge voltage resistance | 4 kV |
| operating voltage / at AC / at 50 Hz / rated value / minimum | 240 V |
| operating voltage / at DC / rated value / minimum | 250 V |
Current
| thermal current | 6 A |
| operational current — at AC-12 / at 12 V | 6 A |
| operational current — at AC-12 / at 24 V | 6 A |
| operational current — at AC-12 / at 48 V | 6 A |
| operational current — at AC-12 / at 125 V | 6 A |
| operational current — at AC-12 / at 220/240 V | 6 A |
| operational current — at DC-12 / at 12 V | 6 A |
| operational current — at DC-12 / at 24 V | 4 A |
| operational current — at DC-12 / at 48 V | 2 A |
| operational current — at DC-12 / at 110 V | 0.5 A |
| operational current — at DC-12 / at 250 V | 0.25 A |
| operational current — at DC-13 / at 12 V | 1 A |
| operational current — at DC-13 / at 24 V | 0.8 A |
| operational current — at DC-13 / at 48 V | 0.4 A |
| operational current — at DC-13 / at 110 V | 0.2 A |
| operational current — at DC-13 / at 250 V | 0.1 A |
| operational current — at AC-15 / at 12 V | 3 A |
| operational current — at AC-15 / at 24 V | 3 A |
| operational current — at AC-15 / at 48 V | 3 A |
| operational current — at AC-15 / at 125 V | 3 A |
| operational current — at AC-15 / at 220/240 V | 3 A |

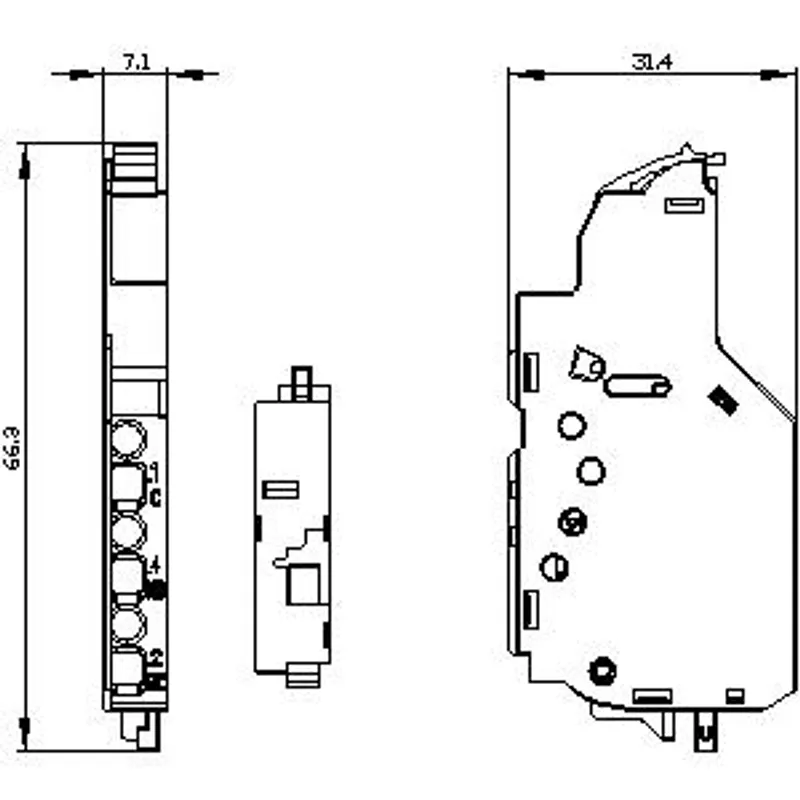

Mechanical Design
| height | 56 mm |
| width | 7 mm |
| depth | 30 mm |
| Net Weight | 28 g |
| tightening torque / with screw-type terminals / minimum | 0.4 N·m |
| tightening torque / with screw-type terminals / maximum | 0.5 N·m |
Connections according IEC
| stripped length | 15 mm |
| AWG number / as coded connectable conductor cross section / for auxiliary contacts — minimum | 20 |
| AWG number / as coded connectable conductor cross section / for auxiliary contacts — maximum | 16 |
Connetctions according UL
| stripped length [in] | 0.6 in |
| tightening torque [lbf·in] / with screw-type terminals / minimum | 3.5 lbf·in |
| tightening torque [lbf·in] / with screw-type terminals / maximum | 4.4 lbf·in |
