Siemens 3UF8200-1AA00-0

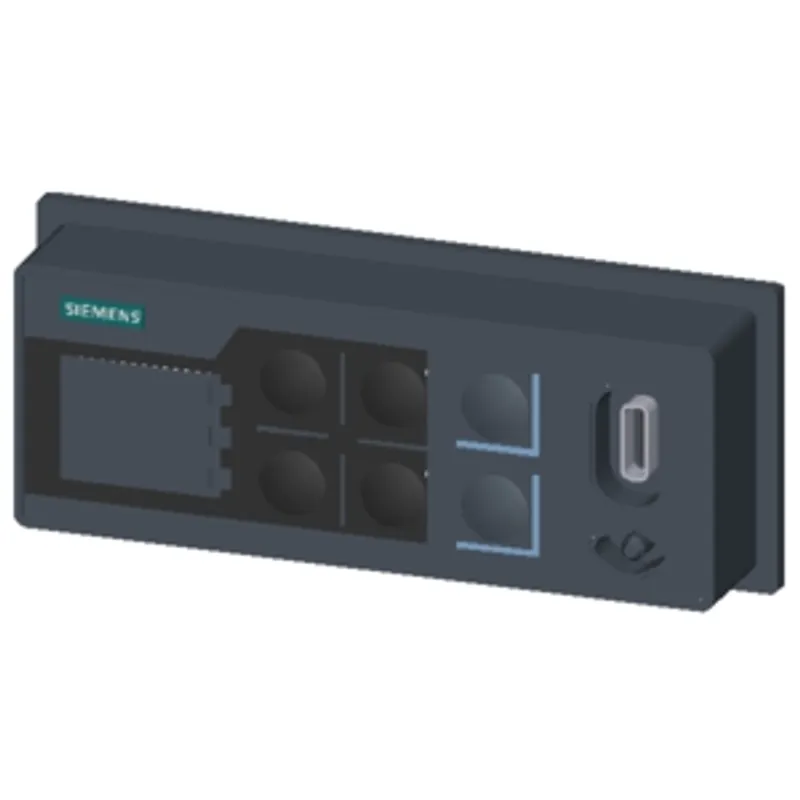

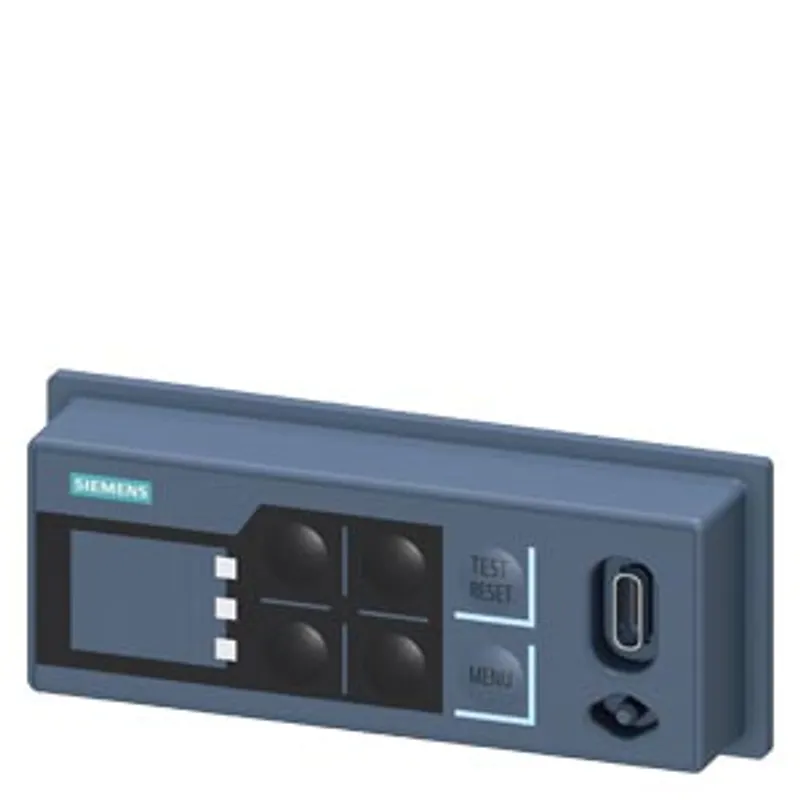

Operator panel with display for SIMOCODE M series, installation on device front or front panel mounting

MPN: 3UF8200-1AA00-0
Category: SIMOCODE M 3UF8 motor management and control devices

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 3UF8200-1AA00-0?

operator panel with display for SIMOCODE M series, installation on device front or front panel mounting, display with colored background, 3 LEDs for status display, 6 buttons for manual control, USB-C interface

Specifications

General

product brand name	SIMOCODE
product designation	operator panels
product type designation	M-CP

General technical data

certificate of suitability	CE / RoHS
apparent power consumption	0.5 V·A
consumed active power	0.5 W
protection class IP on the front	IP40/IP54
degree of protection NEMA rating	12
shock resistance according to IEC 60068-2-27	15 g / 11 ms
vibration resistance	1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g
number of keys	6
reference code according to IEC 81346-2	A
Substance Prohibitance (day/month/year)	01/01/2024
SVHC substance name	2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1
Net Weight	44.58 g

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1	class A
EMC immunity according to IEC 60947-1	corresponds to degree of severity 3
conducted interference — due to burst according to IEC 61000-4-4	1 kV
conducted interference — due to conductor-earth surge according to IEC 61000-4-5	2 kV
conducted interference — due to conductor-conductor surge according to IEC 61000-4-5	1 kV
field-based interference according to IEC 61000-4-3	10 V/m
electrostatic discharge according to IEC 61000-4-2	6/8 kV

Communication/ Protocol

design of the interface

USB-C

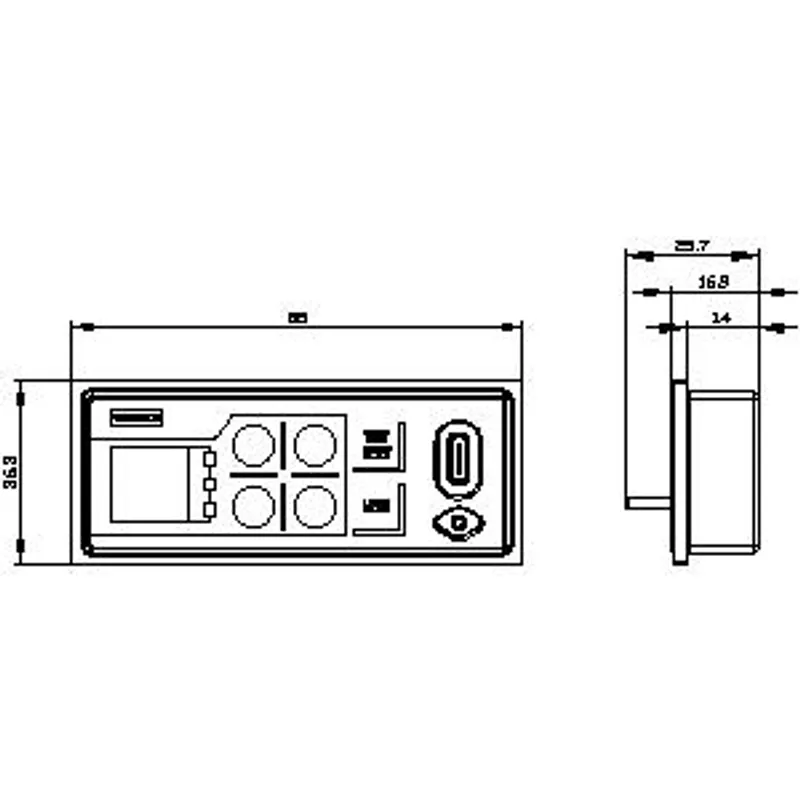

Installation/ mounting/ dimensions

mounting position	vertical
fastening method	front mounting / on basic unit
height	36.3 mm
width	88 mm
depth	25.7 mm

Ambient conditions

installation altitude at height above sea level — maximum	4 000 m
installation altitude at height above sea level — 1 maximum	2 000 m
installation altitude at height above sea level — 2 maximum	3 000 m; max. +50 °C (no protective separation)
installation altitude at height above sea level — 3 maximum	4 000 m; max. +40 °C (no protective separation)
ambient temperature — during operation	-25 ... +70 °C
ambient temperature — during storage	-40 ... +70 °C
ambient temperature — during transport	-40 ... +70 °C
environmental category — during operation according to IEC 60721	3K24 (condensation occasionally, no precipitation, no water, no ice formation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3B2, 3S5 (sand must not enter the device), 3M6
environmental category — during storage according to IEC 60721	1K22 (condensation occasionally, no precipitation, no water, no ice formation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1B2, 1S10 (sand must not enter the device), 1M4
environmental category — during transport according to IEC 60721	2K12 (no condensation, no thermal shock), 2B2, 2C1, 2S1, 2M2
relative humidity during operation	5 ... 95 %

Display

number of status displays	4
number of displays	1

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3UF8200-1AA00-0PDF
