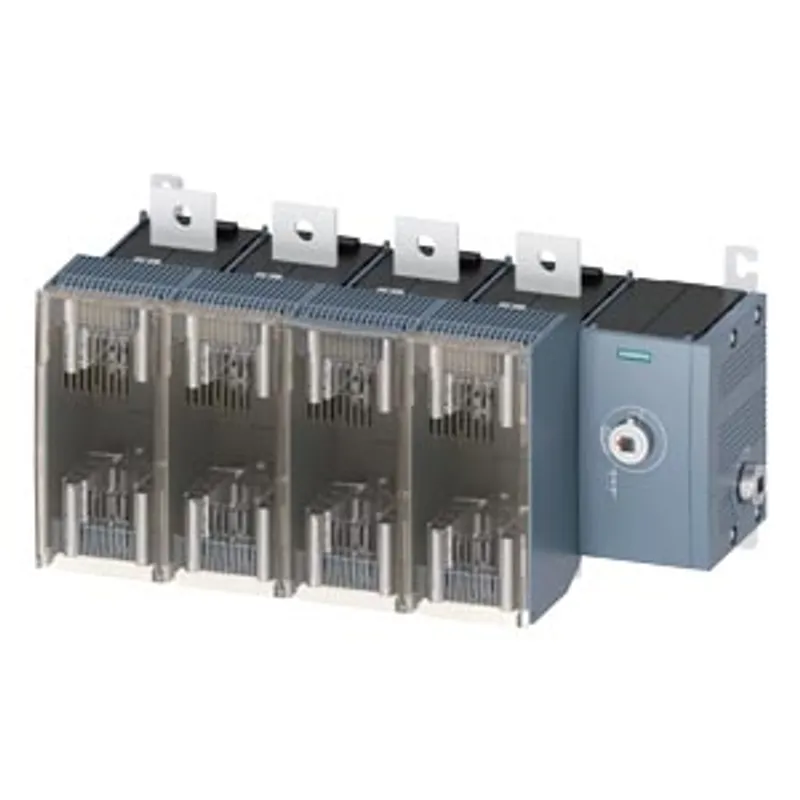

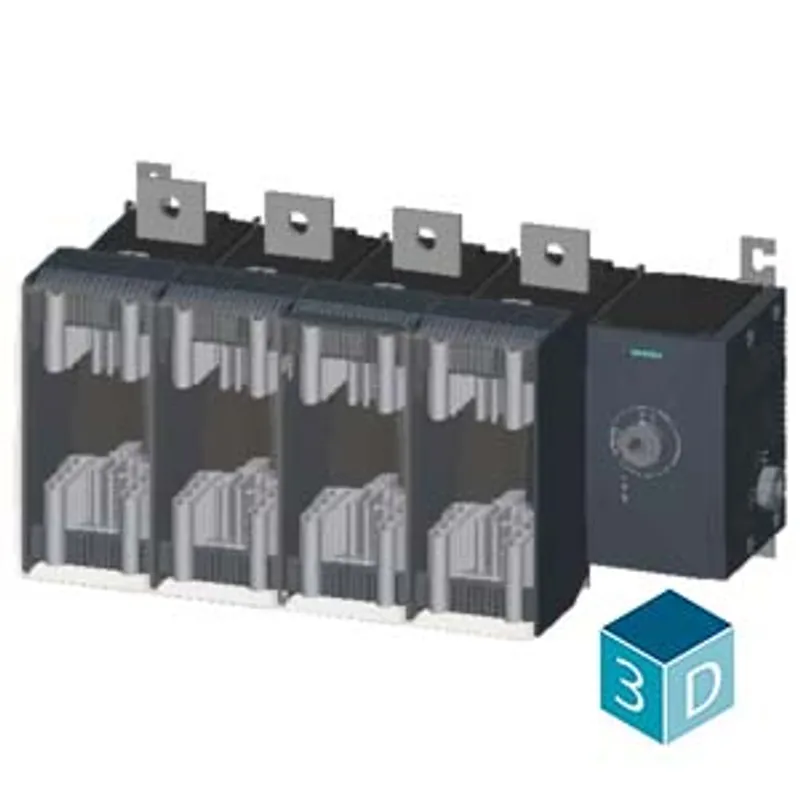

Siemens 3KF5463-4RF11
Switch disconnector with fuse 630 A, frame size 5
- MPN
- 3KF5463-4RF11
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

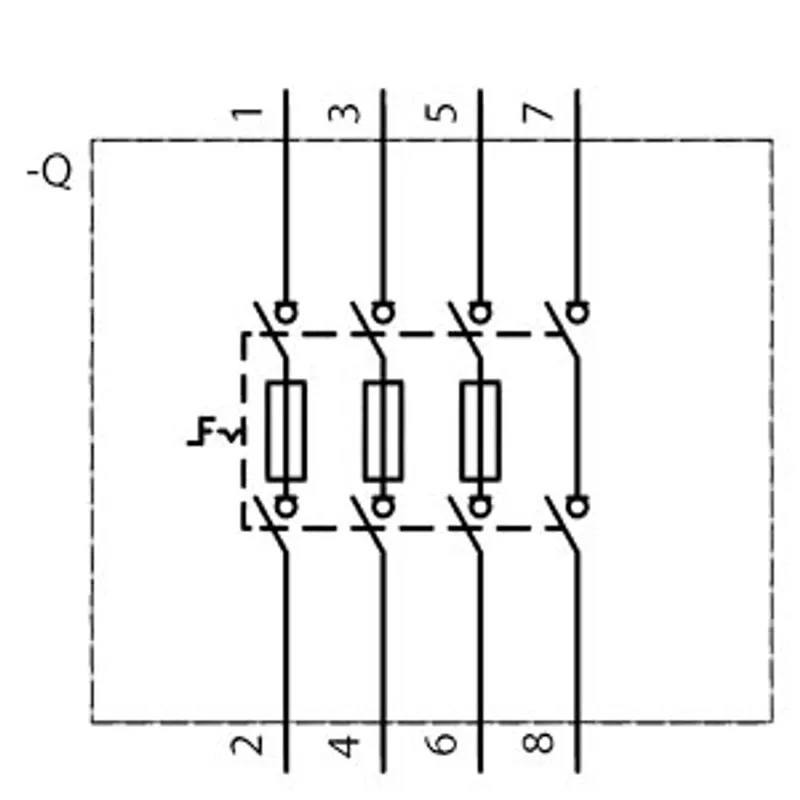

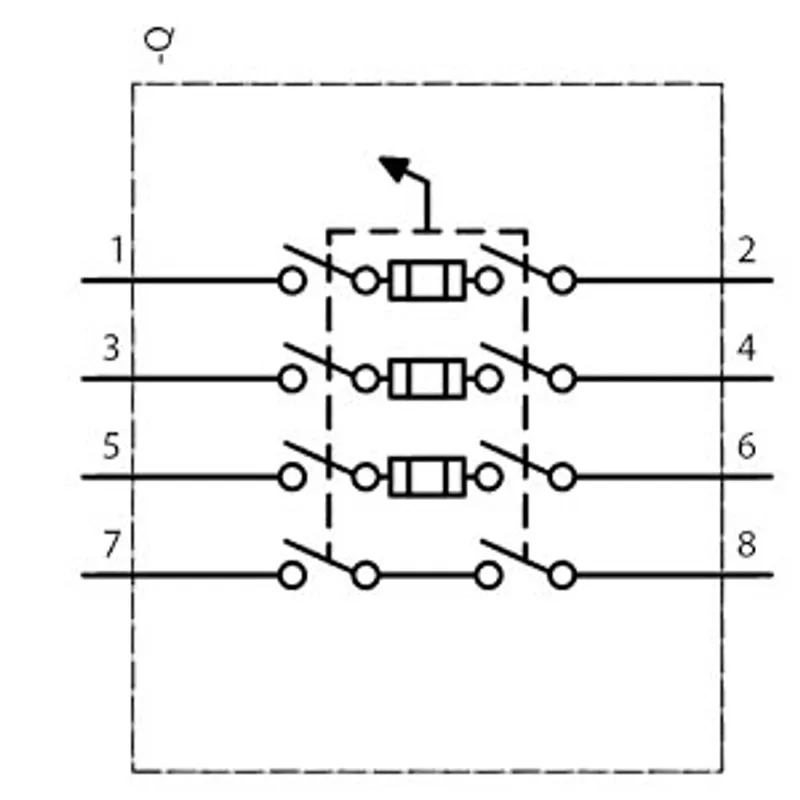

What is the Siemens 3KF5463-4RF11?
switch disconnector with fuse 630 A, frame size 5, 4-pole for LV HRC fuse size 2 and 3 lateral operating mechanism rig basic unit without handle flat connector without fuses
Specifications
Model
| product brand name | SENTRON |
| product designation | 3KF switch disconnector with fuses |
| design of the product | 3KF switch disconnector with fuses |
| product version | 3KF NH |
| design of the actuating element | without |
| design of handle | Without |
| direction of actuation | from right |
| type of the driving mechanism motor drive | No |
| number of poles | 4 |
| size of disconnecting link | 3 and 2 |
| size of switch disconnector | 5 |
| size of fuse link | NH2, NH3 |
| mechanical service life (operating cycles) typical | 6 000 |
| electrical endurance (operating cycles) — at AC-23 A at 440 V | 1 500 |
| electrical endurance (operating cycles) — at AC-23 A at 690 V | 1 000 |
| electrical endurance (operating cycles) — at DC-23 A at 440 V | 1 000 |
| I2t value — with closed switch for combination switch + fuse at 500 V maximum | 4 100 000 A²·s |
| I2t value — with closed switch for combination switch + fuse at 400 V maximum | 4 100 000 A²·s |
| I2t value — with closed switch at 690 V for combination switch + gG fuse maximum | 2 050 000 A²·s |
| I2t value — of the fuse at 500 V maximum permissible | 10 400 000 A²·s |
| I2t value — of the gG fuse at 690 V maximum permissible | 7 000 000 A²·s |
| I2t value — of the aM fuse at 690 V maximum permissible | 7 000 000 A²·s |
| position of the switch operating mechanism | right |
| fuse system | LV HRC fuse |
| overvoltage category | IV |
| operating voltage with current paths in series — with degree of pollution 2 at DC rated value | 440 / 3 |
| operating voltage with current paths in series — with degree of pollution 3 at DC rated value | 440 / 3 |
| surge voltage resistance rated value | 12 kV |
Supply voltage
| operating voltage at AC rated value maximum | 690 V |
Protection class
| protection class IP | IP00 |
| protection class IP — with closed switch with cover or cable lug cover | IP20 |
| protection class IP — on the front | IP00 |
Dissipation
| power loss [W] — with conventional rated thermal current per pole | 40 W |
| power loss [W] — with conventional rated thermal current per device | 120 W |
| power loss [W] — with conventional rated thermal current without fuse per pole | 40 W |
| power loss [W] — with conventional rated thermal current without fuse per device | 120 W |
| power loss [W] — for rated value of the current at AC in hot operating state per pole | 40 W |
| power loss [W] — of the fuse per fuse maximum | 48 W |
Main circuit
| operating power at AC-23 A at 500 V rated value | 400 kW |
| operational current rated value | 630 A |
Auxiliary circuit
| number of connected NC contacts for auxiliary contacts | 0 |
| number of connected NO contacts for auxiliary contacts | 0 |
| number of connected CO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 8 |
| number of NO contacts for auxiliary contacts | 8 |
| suitability for use main switch | Yes |
| suitability for use switch disconnector | Yes |
| suitability for use EMERGENCY OFF switch | Yes |
| suitability for use maintenance/repair switch | Yes |
| product feature interlock | No |
| product function phase failure monitoring | No |
| product component — voltage trigger | No |
| product component — undervoltage release | No |
| product component — undervoltage release with leading contact | No |
| product feature sealable | Yes |
| product extension auxiliary switch | Yes |
| product extension optional locking capability | Yes |
| product extension optional motor drive | No |
| product extension optional fuse monitoring | Yes |
| product function — fuse monitoring | No |
| product function — overvoltage protection monitoring | No |
Short circuit
| short-circuit current making capacity (Icm) for switch disconnector at 690 V AC/440 V DC without fuse link rated value minimum | 44 kA |
| conditional short-circuit current with line-side fuse protection — at 500 V by gG fuse rated value | 100 kA |
| conditional short-circuit current with line-side fuse protection — at 690 V by gG fuse rated value | 80 kA |
Connections
| arrangement of electrical connectors for main current circuit | Top and bottom |
| tightening torque with screw-type terminals — minimum | 50 N·m |
| tightening torque with screw-type terminals — maximum | 75 N·m |
| type of connectable conductor cross-sections for aluminum conductor stranded with lug | 1x (25 ... 300 mm²), 2x (25 ... 300 mm²) |
| type of connectable conductor cross-sections — for copper busbar | 1x (50 x 10 mm²) |
| type of connectable conductor cross-sections for copper conductor — stranded with lug according to DIN 46234 | 1x (25 ... 240 mm²), 2x (25 ... 240 mm²) |
| type of connectable conductor cross-sections for copper conductor — stranded with lug according to DIN 46235 | 1x (25 ... 300 mm²), 2x (25 ... 300 mm²) |
| type of electrical connection for main current circuit | flat connector |

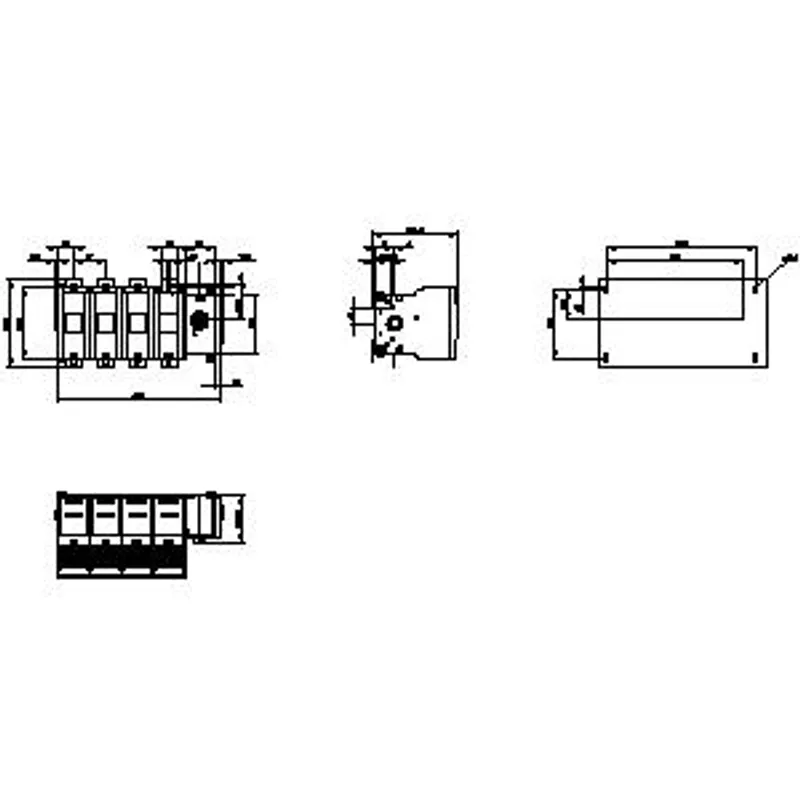

Mechanical Design
| height | 270 mm |
| width | 511 mm |
| depth | 262 mm |
| fastening method | floor mounting |
| fastening method — 4-hole front mounting | No |
| fastening method — front mounting with central attachment | No |
| fastening method — rail mounting | No |
| mounting position | any |
| Net Weight | 21.7 kg |
Environmental conditions
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 70 °C |
| ambient temperature during storage — minimum | -50 °C |
| ambient temperature during storage — maximum | 80 °C |
