Siemens 3KD9201-0
Accessory for 3KD size 2 Direct operating mechanism, for front operating mechanism
- MPN
- 3KD9201-0
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

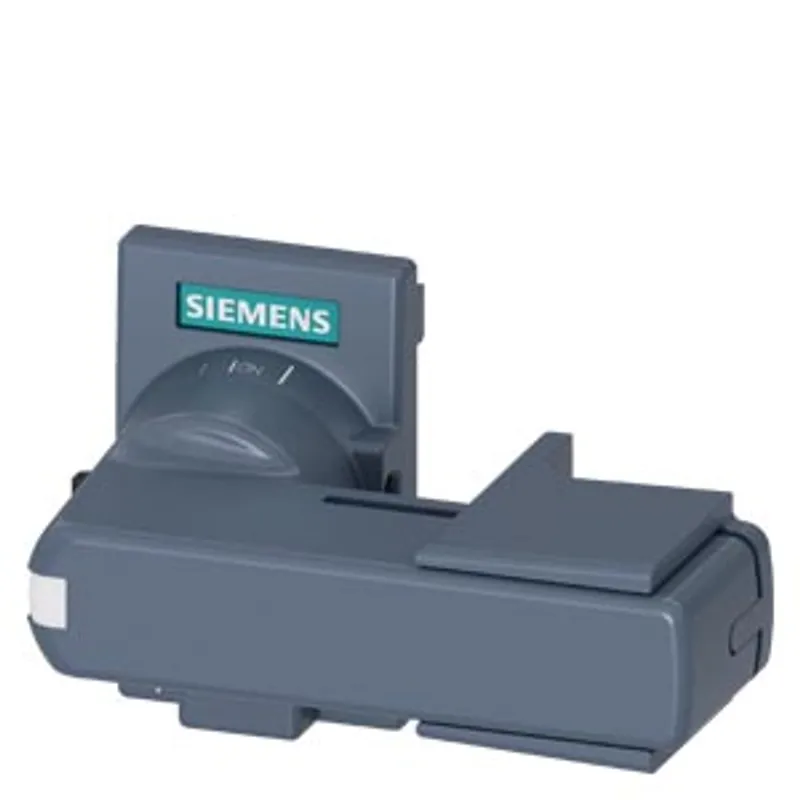

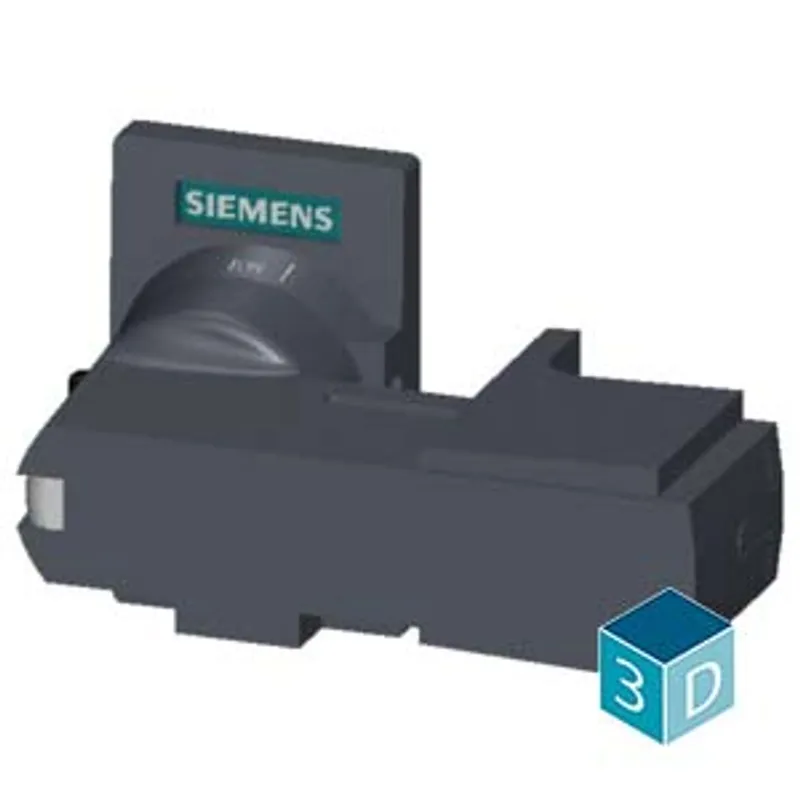

What is the Siemens 3KD9201-0?
Accessory for 3KD size 2 Direct operating mechanism, for front operating mechanism, grey Flat version can be locked in OFF position with one padlock
Specifications
Model
| product brand name | SENTRON |
| product designation | Accessories for switch disconnectors |
| design of the product | Direct operating mechanism DIN43880 |
| type of the driving mechanism | Manual operating mechanism |
| protection class IP on the front | IP30 |
Suitability
| suitability for use | For 3KD, size 2 |
Appearance
| color of the actuating element | gray |
Product details
| product feature interlock | Yes |
| product feature can be locked into OFF position | Yes |
| display version for switch position indicator | ON-OFF-TEST |

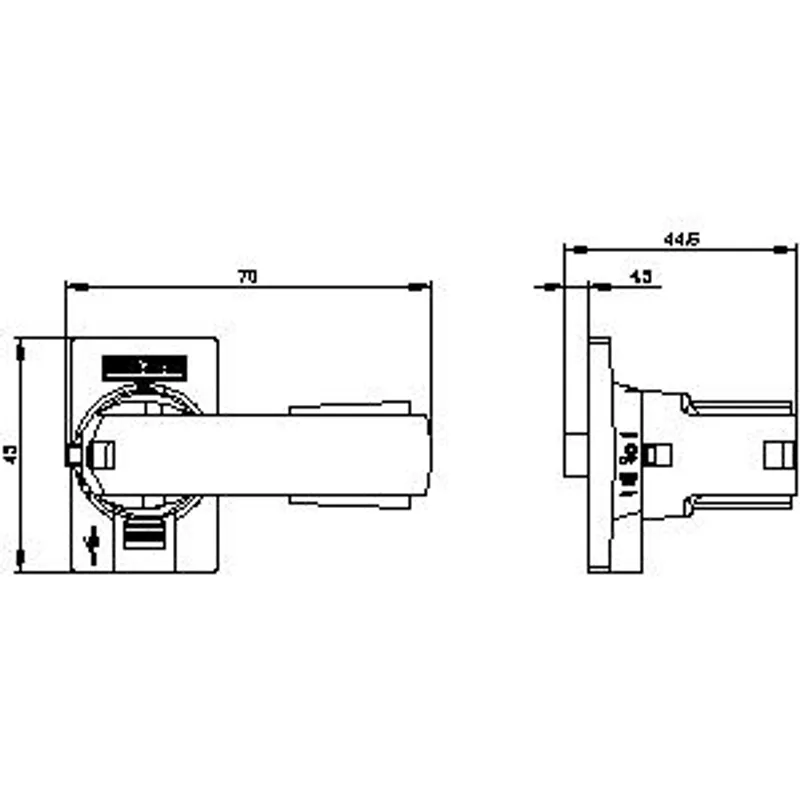

Mechanical Design
| height | 45 mm |
| width | 70 mm |
| depth | 45 mm |
| Net Weight | 0.14 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3KD9201-0: frequently asked questions
When can 3KD9201-0 be shipped?
3KD9201-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3KD9201-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3KD9201-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3KD9201-0, subject to availability and destination.
