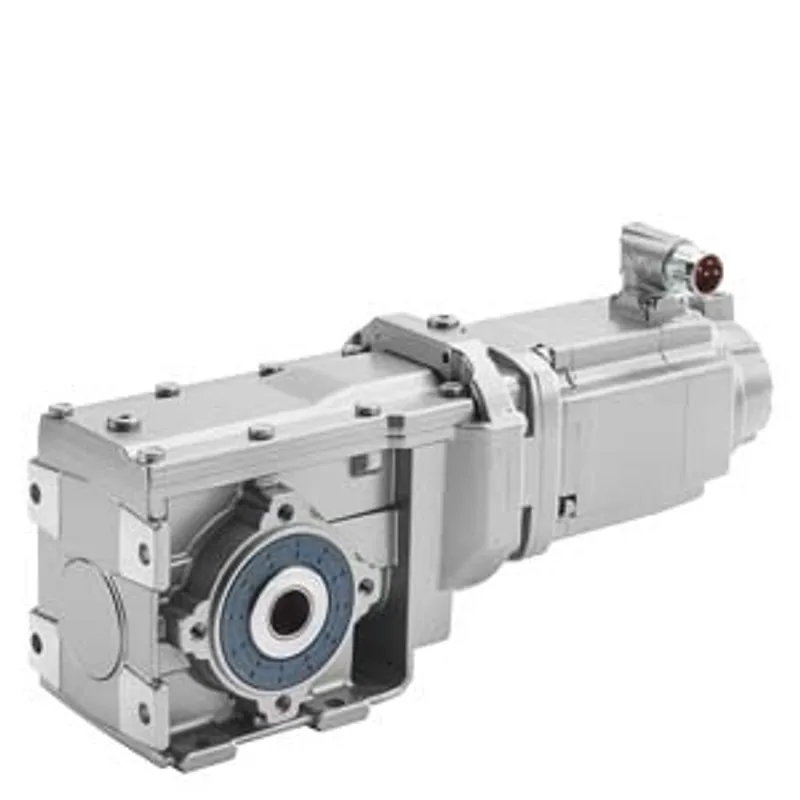

Siemens 1FG1505-5ZD24-9HG2-Z D11+J2R+K07+N2A+N36+N50+P20+Q93+X01+Y84 – SIMOTICS S-1FG1 synchronous servo geared motor bevel…

MPN: 1FG1505-5ZD24-9HG2-Z D11+J2R+K07+N2A+N36+N50+P20+Q93+X01+Y84 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	22.8 kg

Shipping & availability

When can 1FG1505-5ZD24-9HG2-Z D11+J2R+K07+N2A+N36+N50+P20+Q93+X01+Y84 be shipped?

1FG1505-5ZD24-9HG2-Z D11+J2R+K07+N2A+N36+N50+P20+Q93+X01+Y84 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1FG1505-5ZD24-9HG2-Z D11+J2R+K07+N2A+N36+N50+P20+Q93+X01+Y84 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1FG1505-5ZD24-9HG2-Z D11+J2R+K07+N2A+N36+N50+P20+Q93+X01+Y84 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1FG1505-5ZD24-9HG2-Z D11+J2R+K07+N2A+N36+N50+P20+Q93+X01+Y84, subject to availability and destination.

SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox K49 motor type CT 600V AH48 Mmax=10.5 Nm Pn=0.94 kW housing flange i:156.34, N1max=4500 r/min N2max=29 r/min M2max=420 Nm D11: mounting position M1-A J2R: special res. 2-pole w. M23 without PT K07: CLP ISO PG VG220 N2A: DC link voltage 339 V N36: special FD brake AH48 4 Nm N50: power connector 8-pole with Pt1000, P20: additional customer label N506650 X01: matt black RAL 9005 Y84=customer specifications on the rating plate (max. 20 characters) customer-specific motor according to AGT 876182
