remote USB type A port - 1 m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magelis XBT GT |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.22 kg |
Shipping & availability
When can XBTZGUSB be shipped?
XBTZGUSB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up XBTZGUSB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for XBTZGUSB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTZGUSB, subject to availability and destination.

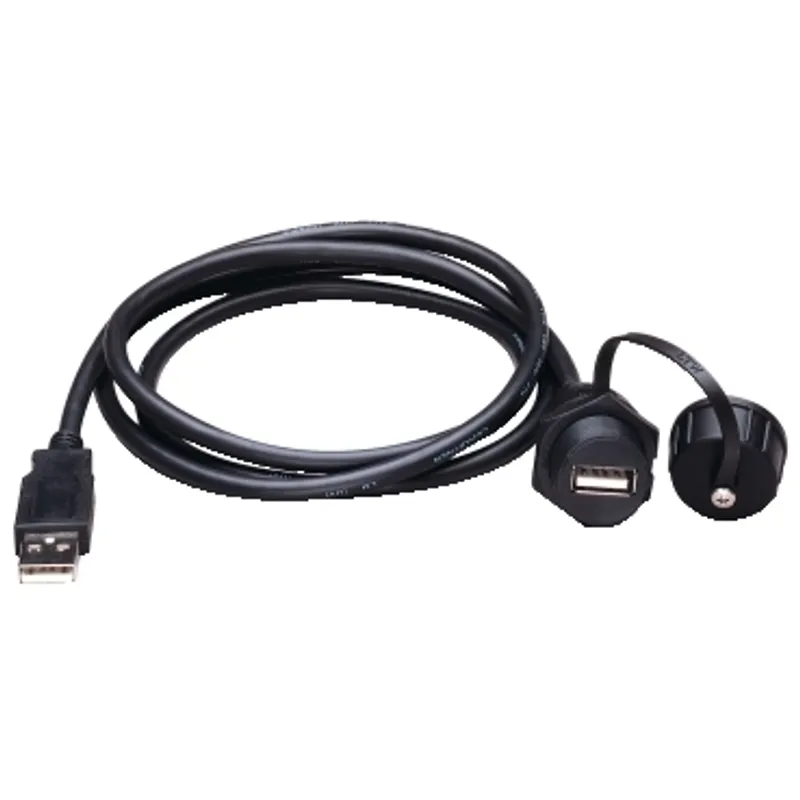

This Magelis XBTZ is a remote USB type A port location for Magelis terminal. It enables the USB port to be located remotely on the rear of the HMI terminal on a panel or cabinet door. It has 1 meter cable length and 21mm fixing hole diameter.
Specifications
Specifications
| Range of product | Harmony XBT |
| Accessory / separate part category | Protection accessories |
| Accessory / separate part type | Remote USB port |
| Accessory / separate part designation | Remote USB port |
| Accessory / separate part destination | 3.5" small touch screen panel, Advanced panel, 3.4" small touch screen panel |
| Cable length | 1 m |
| Product compatibility | XBTGT6..., XBTGT1..5, XBTGT4..., XBTOT..., XBTGT7..., XBTGT2..., XBTGK...., HMISTO, HMIGTO, XBTGT5..., XBTGTW..., HMISTU |
| Connector type | USB type A |
| Net weight | 0.22 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 22.000 cm |
| Package 1 Weight | 121.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.054 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 320 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 61.864 kg |
| Warranty (in months) | 18 |
