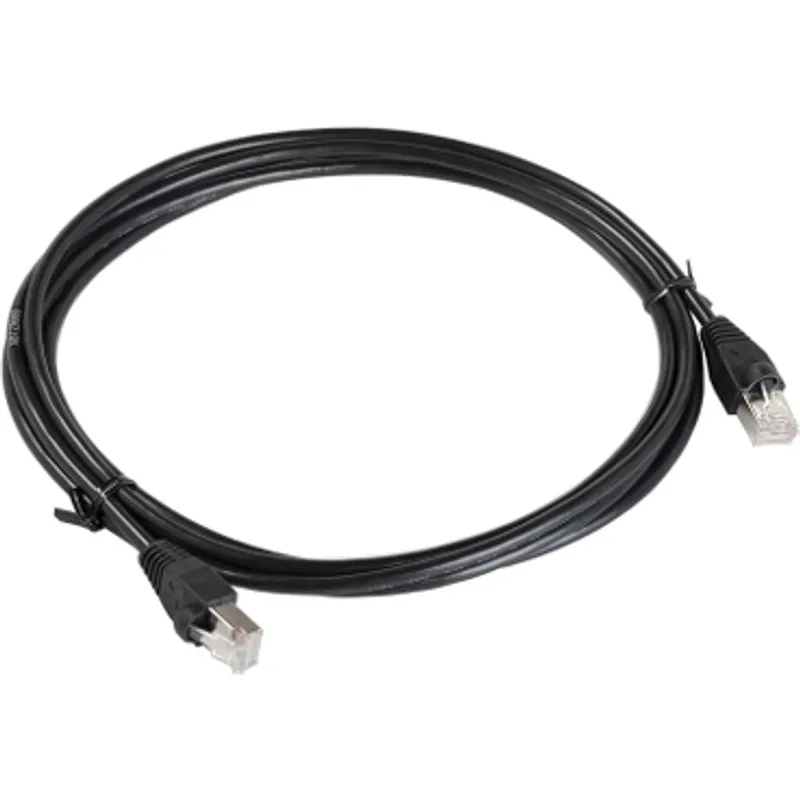

Schneider Electric XBTZ9980 – Magelis XBT N, R, RT, Modbus serial link for XBT terminal, 2.5 m, connectors RJ45
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magelis XBT N, R, RT |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.23 kg |
| UPC / EAN | 3389118316508 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can XBTZ9980 be shipped?
XBTZ9980 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up XBTZ9980 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for XBTZ9980 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTZ9980, subject to availability and destination.
This Magelis XBTZ is a RS 485 cable for Modbus serial link. It is equipped with one male RJ45 connector at each end. it is 2.5 meters long. It enables direct connection between Magelis XBT terminals and PLCs.
Specifications
Specifications
| Range of product | Modicon M221, Harmony XBT |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Connecting cable |
| Accessory / separate part designation | Modbus serial link |
| Accessory / separate part destination | Small touch screen panel, XBT terminal |
| Cable length | 2.5 m |
| Product compatibility | XBTN400, XBTGTW..., XBTRT500, XBTRT511, XBTGT1..., XBTR400, XBTN200 |
| Range compatibility | Preventa XPSMC, Modicon M340, Altivar 31, Altistart 48, Altivar 71, Lexium 05, Altivar 61, TeSys U, Harmony HMI GTO, TeSys T, Harmony STO & STU |
| Electrical connection | 2 male connectors RJ45 |
| Communication port protocol | Modbus |
| Physical interface | RS485 |
| Net weight | 0.23 kg |
Packaging
| Package 1 | 1 PCE, 18.6 cm × 17.5 cm × 2.4 cm (L × W × H), 93 g |
| Package 2 | 25 S02, 40 cm × 30 cm × 15 cm (L × W × H), 2.65 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet XBTZ9980 |
