Schneider Electric VZ20

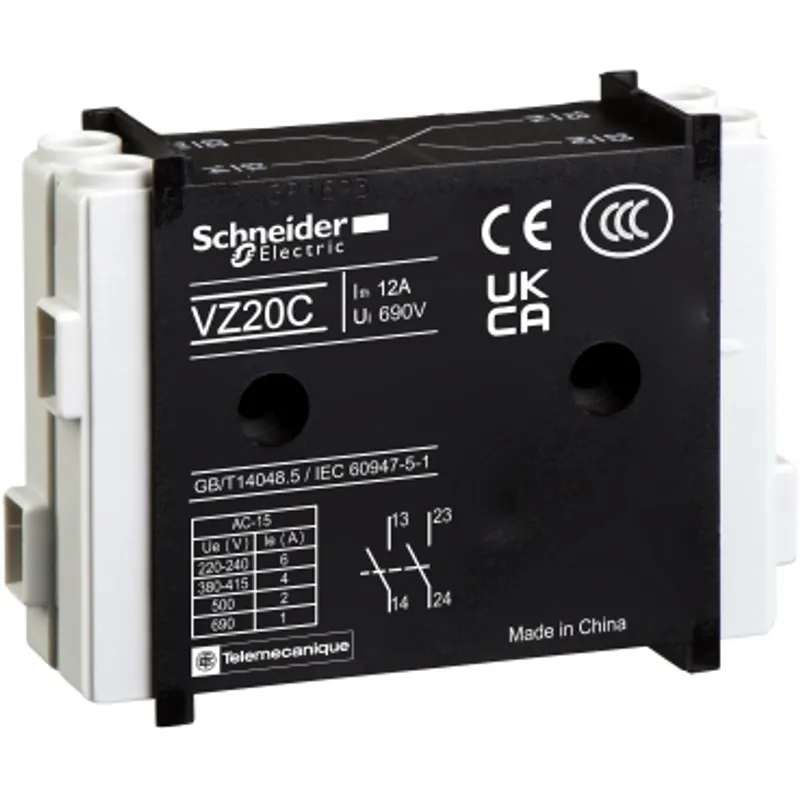

Auxiliary contact block,TeSys Control,1 NO + 1 NO,for V02-V6
- MPN
- VZ20
- EAN
- 3389110551976
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VZ20?
TeSys Vario add-on module, auxiliary contact block, for TeSys Vario V02 to V6 switch bodies. It provides 2NO contacts (late make) rated for AC operation until 12A/690V and DC operation until 8A/250V. To be mounted on one side of the switch body. A maximum of 2 additional auxiliary contact block modules VZ7 or VZ20 can be attached to the switch body, one in each side. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | VZ |
| Product or component type | Auxiliary contact block |
| Performance level | High performance |
| Contacts type and composition | 1 NO + 1 NO |
| Product compatibility | V3, V01, V2, V0, V6, V4, V1, V5, V02 |
| Network type | DC, AC |
| Network frequency | 50/60 Hz |
| Mounting location | Left, Right |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 12 A |
| [Ithe] conventional enclosed thermal current | 10 A |
| Mechanical durability | 100000 cycles |
| Electrical durability | 30000 cycles DC-11, 100000 cycles AC-15 |
| Connections - terminals | Screw clamp terminals 2 cable(s) 0.75…1.5 mm² - flexible - with cable end, Screw clamp terminals 2 cable(s) 1…2.5 mm² - solid |
| Tightening torque | 0.7 N.m - on screw clamp terminals |
| Height | 65 mm |
| Width | 20 mm |
| Depth | 48.5 mm |
| Net weight | 0.05 kg |
| Standards | IEC 60947-5 |
| Product certifications | GL, UL, CSA, UKCA |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…50 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 5.500 cm × 3.500 cm (L × W × H), 54.400 g |
| Package 2 | 69 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 4.001 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VZ20: frequently asked questions
When can VZ20 be shipped?
VZ20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VZ20 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VZ20 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VZ20, subject to availability and destination.
