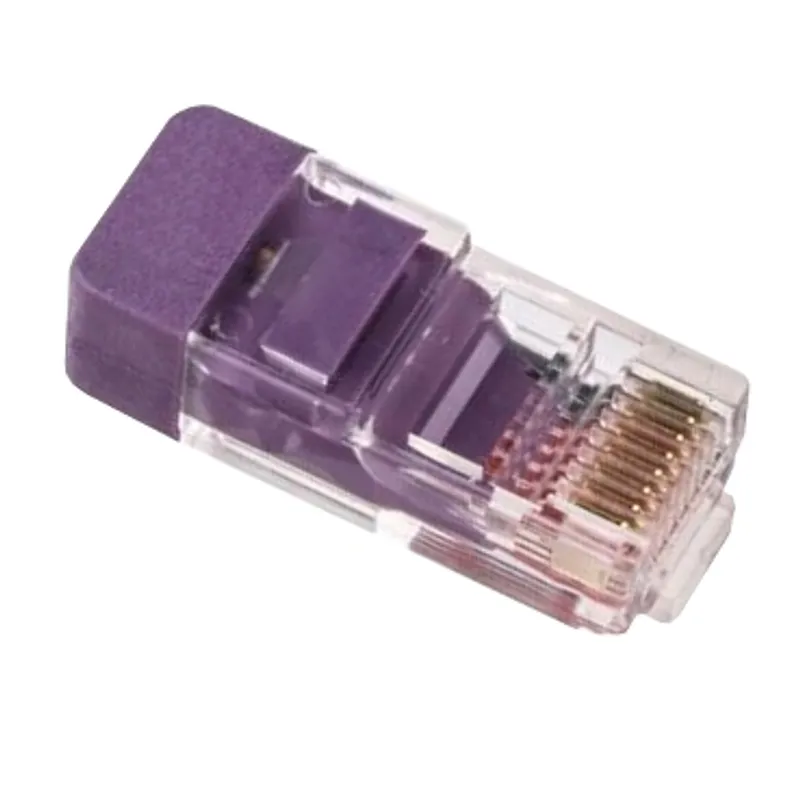

Schneider Electric VW3A8306RC
Modbus line terminator, Zelio Logic, for end of RS485 line, RJ45 connector
- MPN
- VW3A8306RC
- EAN
- 3389110400533
- Category
- Zelio Logic SR2/SR3
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3A8306RC?
This line termination enables your product integration in Modbus serial link connection. It has a 120Ohm resistance and RJ45 connection type. It is sold in lots of 2.
Specifications
Specifications
| Range of product | Altivar |
| Bus type | Modbus |
| Accessory / separate part category | Connection accessory |
| Accessory / separate part type | Line terminator |
| Accessory / separate part destination | RJ45 connector |
| Quantity per set | Set of 2 |
| Range compatibility | Altivar 61, Altivar 71Q, Altivar Easy 310, Altivar 31, Preventa XPS MF, Altivar Machine ATV320, Altivar 32, Lexium SD3, Modicon LMC058, Altivar Easy 610, Altivar 21, Zelio Logic, Altivar Process ATV600, Altistart 48, Altivar Process ATV900, Modicon M258, Altivar 312, Altivar Machine ATV340 except Sercos drives, Modicon M238, Altivar 61Q, Altivar 31C, Altistart 22, Altivar 212, Altivar 71, Altivar 12 |
| Communication port protocol | Modbus |
| Terminator resistance | 120 Ohm |
| Terminator capacitance | 1 nF |
| Net weight | 0.2 kg |
Packaging
| Package 1 | 1 PCE, 6.000 cm × 6.000 cm × 2.000 cm (L × W × H), 9.000 g |
| Package 2 | 100 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 1.548 kg |
| Package 3 | 800 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 22.384 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A8306RC: frequently asked questions
When can VW3A8306RC be shipped?
VW3A8306RC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A8306RC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A8306RC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A8306RC, subject to availability and destination.
