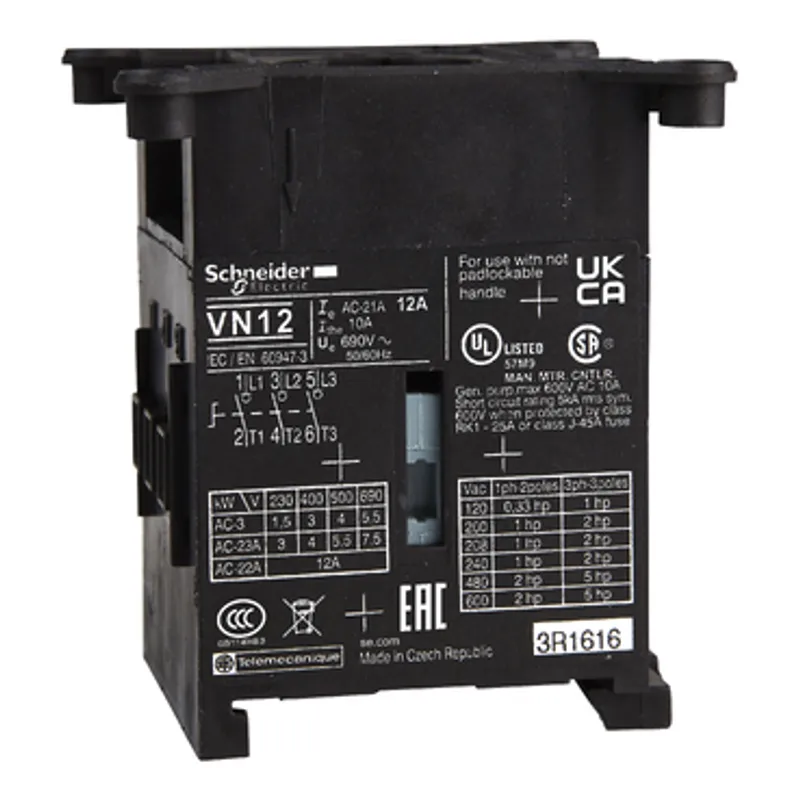

Schneider Electric VN12
Switch body,TeSys Control,3 poles,12A,compact size
- MPN
- VN12
- EAN
- 3389110759839
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VN12?
TeSys mini-Vario switch body, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. It can be used to switch DC circuits until 250V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 2 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Product name | TeSys VARIO |
| Product or component type | Switch body |
| Performance level | Standard |
| Poles description | 3P |
| Contacts type and composition | 3 NO |
| Network type | DC, AC |
| Network frequency | 50/60 Hz |
| Mounting support | Symmetrical rail |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ith] conventional free air thermal current | 12 A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ie] rated operational current | 8.1 A (AC-23) at 400 V |
| Rated operational power in W | 3 kW at 400...415 V (AC-3), 4 kW at 500 V (AC-3), 4 kW at 690 V (AC-3), 1.5 kW at 230...240 V (AC-3), 5.5 kW at 500 V (AC-23A), 7.5 kW at 690 V (AC-23A), 3 kW at 230...240 V (AC-23A), 4 kW at 400...415 V (AC-23A) |
| Intermittent duty class | 30 |
| Making capacity ( I Rms) | 120 A at 400 V AC-21A, 120 A at 400 V AC-22A, 120 A at 400 V AC-23A |
| [Icm] rated short-circuit making capacity | 0.5 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 140 A at 400 V duration: 1 s |
| Rated conditional short-circuit current | 6 kA at 400 V - associated fuse 12 A aM, 6 kA at 400 V - associated fuse 12 A gG |
| Breaking capacity | 120 A at 400 V (AC-22A), 120 A at 400 V (AC-23A), 120 A at 400 V (AC-21A) |
| Mechanical durability | 50000 cycles |
| Electrical durability | 30000 cycles DC-1...5, 50000 cycles AC-21 |
| Suitability for isolation | Yes |
| Connections - terminals | Power circuit: screw clamp terminals4 mm² - solid, Power circuit: screw clamp terminals4 mm² - flexible - with cable end |
| Tightening torque | Power circuit: 7 N.m - on screw clamp terminals |
| Height | 46.5 mm |
| Width | 56 mm |
| Depth | 62 mm |
| Net weight | 0.11 kg |
| Standards | IEC 60947-3 |
| Product certifications | UL, CSA, GL, UKCA |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mechanical robustness | Vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6, Shocks 11 ms (15 gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20…50 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
Packaging
| Package 1 | 1 PCE, 12.000 cm × 8.500 cm × 7.800 cm (L × W × H), 119.000 g |
| Package 2 | 24 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.328 kg |
| Package 3 | 192 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 36.860 kg |
