Schneider Electric VBFXGE2

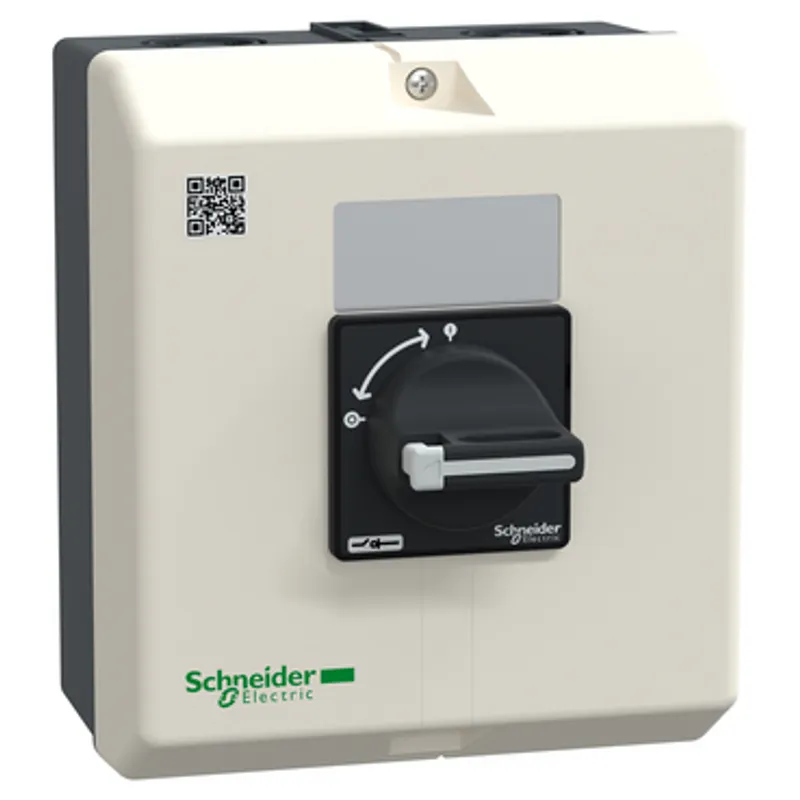

Empty enclosure,TeSys Control,black padlockable handle and black front plate,IP65,for V3/V4
- MPN
- VBFXGE2
- EAN
- 3389110602876
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VBFXGE2 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VBFXGE2?
TeSys enclosed starters, empty enclosure for mounting a switch disconnector for main switching in motor applications up to 30kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). to be equipped with a Vario switch body V3-V4 (to be ordered separately), with 3 possible add-on module attachments Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | VBFX |
| Product or component type | Enclosure |
| Product compatibility | V3, V4 |
| Handle colour | Black |
| Handle front plate colour | Black |
| Rotary handle padlocking | With |
| [Ithe] conventional enclosed thermal current | 50 A, 63 A |
| Environmental characteristic | Standard environment |
| Height | 180 mm |
| Width | 157 mm |
| Depth | 152 mm |
| Net weight | 0.66 kg |
| IP degree of protection | IP65 |
Packaging
| Package 1 | 1 PCE, 20.300 cm × 19.100 cm × 17.000 cm (L × W × H), 692.000 g |
