Schneider Electric V2

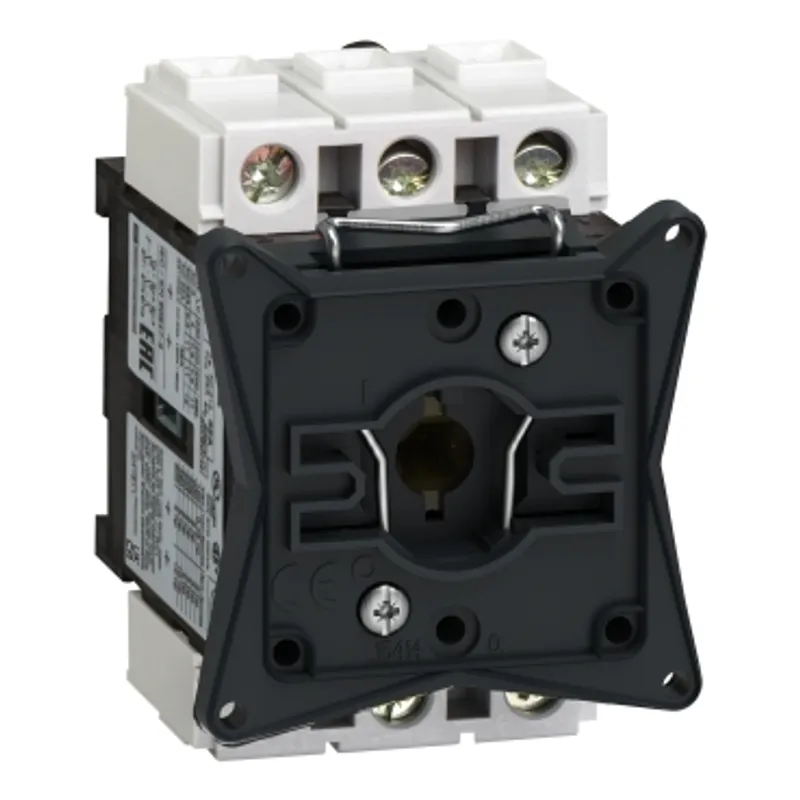

Switch body,TeSys Control,3 poles,40A
- MPN
- V2
- EAN
- 3389110551709
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric V2?
TeSys Vario switch body, 3 poles, 40A/690V, for motor switching applications up to 15kW@400V AC-23. It can be used to switch DC circuits until 250V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Product Name | TeSys VARIO |
| Device Short Name | V |
| Product Type | Switch body |
| Mounting Support | Plate, Symmetrical rail |
| Performance Level | High performance |
| Number of Poles | 3P |
| Contact Type and Composition | 3 NO |
| Network type | AC, DC |
| Network frequency | 50/60 Hz |
| [Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
| IEC Rated Operational Power in W | 11 kW at 400...415 V (AC-3), 11 kW at 690 V (AC-3), 15 kW at 500 V (AC-3), 15 kW at 690 V (AC-23A), 18.5 kW at 500 V (AC-23A), 5.5 kW at 230...240 V (AC-3), 7.5 kW at 230...240 V (AC-23A), 15 kW at 400...415 V (AC-23A) |
| [Ie] Rated Operational Current | 29 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current | 40 A |
| [Ithe] Conventional Enclosed Thermal Current | 32 A |
| Making capacity ( I Rms) | 400 A at 400 V AC-21A, 400 A at 400 V AC-22A, 400 A at 400 V AC-23A |
| Breaking Capacity | 320 A at 400 V (AC-21A), 320 A at 400 V (AC-22A), 320 A at 400 V (AC-23A) |
| Rated Conditional Short Circuit Current | 10 kA at 400 V - associated fuse 50 A aM, 10 kA at 400 V - associated fuse 50 A gG |
| [Icm] Rated Short Circuit Making Capacity | 1 kA at 400 V at Ipeak |
| Intermittent duty class | 30 |
| Suitability for isolation | Yes |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand Rms current | 480 A at 400 V duration: 1 s |
| Mechanical Durability | 100000 cycles |
| Electrical Durability | 100000 cycles AC-21, 30000 cycles DC-1...5 |
| IEC Terminal Connection | Power circuit: screw clamp terminals10 mm² - solid, Power circuit: screw clamp terminals6 mm² - flexible - with cable end |
| Tightening Torque | Power circuit: 2.1 N.m - on screw clamp terminals |
| Height | 74 mm |
| Width | 55 mm |
| Depth | 60 mm |
| Product Weight | 0.2 kg |
| Standards | IEC 60947-3 |
| Product Certifications | UL, CSA, GL, UKCA, CCC |
| Degree of Protection | IP20 conforming to IEC 60529 |
| Protective Treatment | TC |
| Mechanical Robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient Air Temperature for Operation | -20…50 °C |
| Fire Resistance | 960 °C conforming to IEC 60695-2-1 |
Packaging
| Package 1 | 1 PCE, 12.500 cm × 8.500 cm × 8.000 cm (L × W × H), 175.000 g |
| Package 2 | 24 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.731 kg |
| Package 3 | 192 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 46.652 kg |
