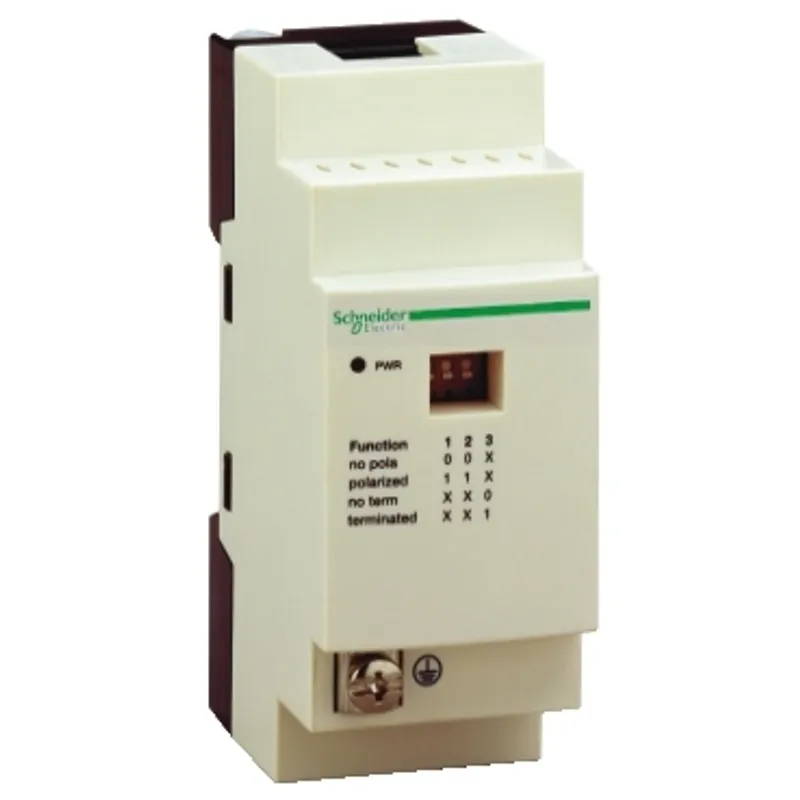

Schneider Electric TWDXCAT3RJ
Serial link tap junction box - for PLC Twido - 1 RJ45 - 2 RJ45
- MPN
- TWDXCAT3RJ
- EAN
- 3595863895377
- Category
- Zelio Logic SR2/SR3
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TWDXCAT3RJ (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric TWDXCAT3RJ?
This module is part of the Modicon TM3 range, an offering of I/O expansion modules for Modicon M200 PLCs. This discrete I/O module provides 16 digital inputs and 16 digital outputs. It manages 16 sink/source 24V DC inputs and 16 relay outputs. Digital I/O modules can be used to create configurations with up to 196 digital I/O. The I/O response time is 4ms (turn-on), 4ms (turn-off). It is furnished with removable screw terminal block, 11x 1.5squaremm for outputs and 9x 1.5squaremm for inputs, with 3.81mm pitch adjustment. Its dimensions are 51mm (width) x 84.6mm (depth) x 90mm (height), and it weighs 0.208kg. This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This module is specially designed and only applicable for Modicon M200 logic controller. It is sold individually. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
Specifications
Specifications
| Range of product | Twido |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Tap junction box |
| Accessory / separate part designation | Tap junction box |
| Accessory / separate part destination | RS485 serial link |
| Product specific application | Lines prepolarised (2 R 620 Ohm), Line end adaptor (RC 120 Ohm, 1 nF) |
| Range compatibility | Modicon M238 logic controller, Twido programmable controller |
| Electrical connection | 1 connector RJ45 (for main cable), 2 connectors RJ45 (for tap-off) |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.08 kg |
Packaging
| Package 1 | 1 PCE, 12.000 cm × 6.800 cm × 6.400 cm (L × W × H), 130.000 g |
| Package 2 | 24 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.645 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TWDXCAT3RJ: frequently asked questions
Can I still buy the TWDXCAT3RJ now that it is discontinued?
Yes. Schneider Electric has discontinued the TWDXCAT3RJ, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TWDXCAT3RJ be shipped?
TWDXCAT3RJ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TWDXCAT3RJ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TWDXCAT3RJ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TWDXCAT3RJ, subject to availability and destination.
