Schneider Electric TMAT4CSET
Connector set for M241 - IO
- MPN
- TMAT4CSET
- EAN
- 3606480611223
- Category
- Modicon M241
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric TMAT4CSET?

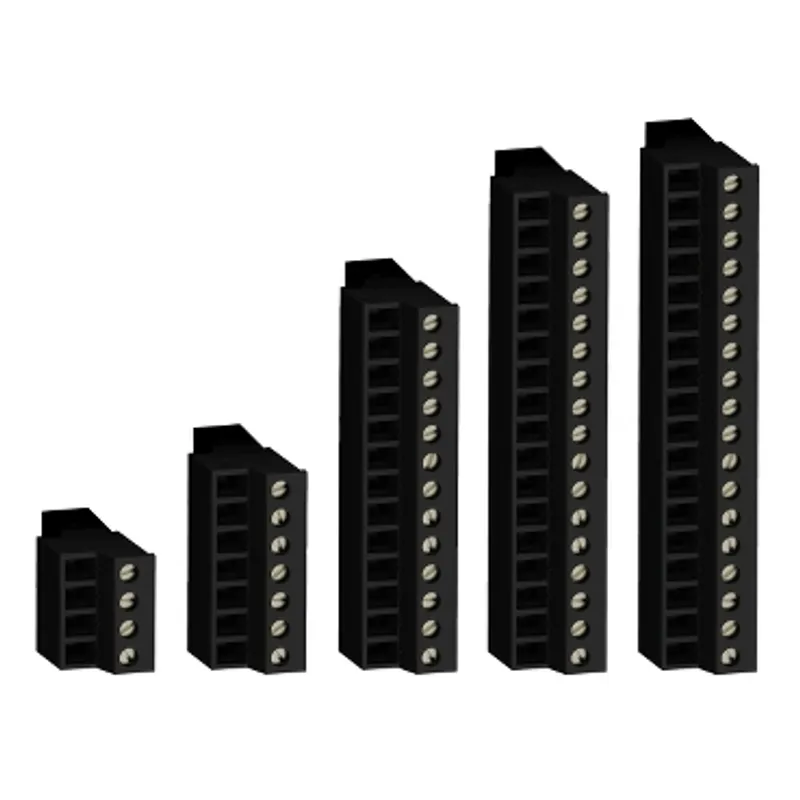

connector set for M241 - IO This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This connector set is dedicated to Modicon M241 logic controllers. It is composed of 8 removable connectors with screw terminals to connect to the serial line, to the I/O and to the CANopen bus. It weighs 0.127kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. The pack of this set contains 1 terminal block connector and 7 Molex connectors.
Specifications
Specifications
| Accessory / separate part category | Connection accessories |
| Product or component type | Terminal block |
| Accessory / separate part type | Screw terminal block |
| Range compatibility | Modicon M241 |
| Product compatibility | Logic controller |
| Accessory / separate part destination | Modicon M241 |
| Number of connectors | 1 terminal block connector(s), 7 Molex connector(s) |
| Electrical connection | Removable screw terminal blockfor connection to the CANopen bus, Molex removable screw terminalsfor serial communication, Molex removable screw terminalsfor inputs/outputs |
Packaging
| Package 1 | 1 PCE, 10.000 cm × 8.000 cm × 2.000 cm (L × W × H), 140.000 g |
| Package 2 | 50 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 7.055 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TMAT4CSET: frequently asked questions
When can TMAT4CSET be shipped?
TMAT4CSET is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TMAT4CSET in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TMAT4CSET and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TMAT4CSET, subject to availability and destination.
