Schneider Electric TMASD1

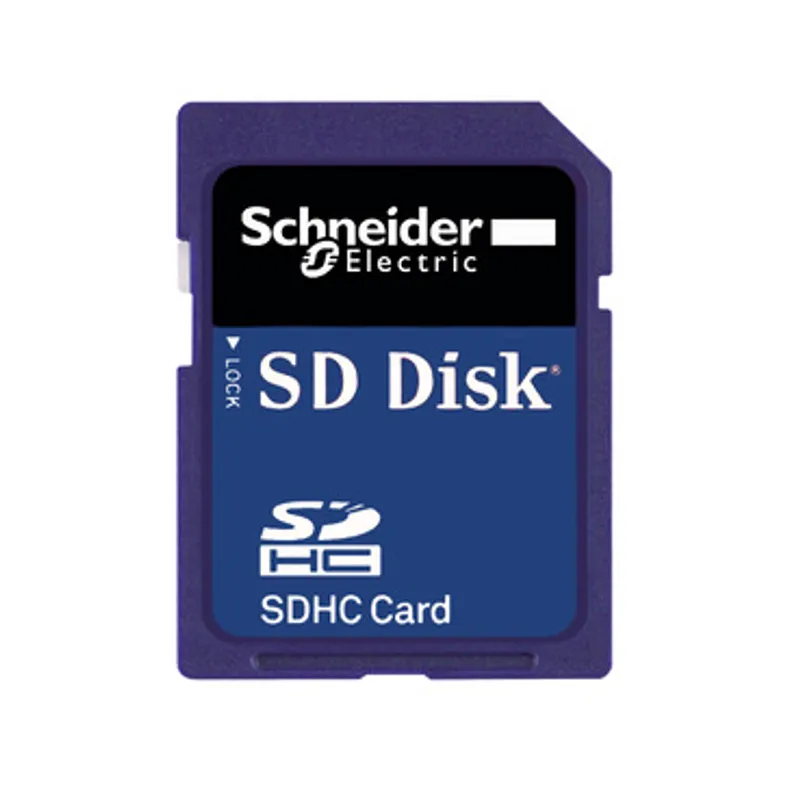

Memory card, Modicon, for M2xx controller

MPN: TMASD1
EAN: 3595864181912
Category: Modicon M221

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Schneider Electric TMASD1?

This memory card is proposed as an option available for Modicon M221 and M221 Book logic controllers. It s used for backing up and transferring applications, loading firmware, data logging. It is also used for duplicating applications between controllers. It has 256 MB capacity. Achieve benchmark performance while increasing profitability with Modicon M221 through intuitive machine programming with EcoStruxure Machine Expert Basic.

Specifications

Range of product	Modicon M221, Modicon M251, Modicon M241
Accessory / separate part type	SD card
Product compatibility	Logic controller
Range compatibility	Modicon M241, Modicon M221, Modicon M251
Memory type	Flash
Memory capacity	256 MB
Accessory / separate part category	Separate parts
Product specific application	Program transfer, Application backup
MTBF reliability	3000000 H
Data retention time	10 year(s) at 25 °C
Number of read/write cycles	100000
Net weight	0.004 kg
Ambient air temperature for operation	-10…70 °C
Ambient air temperature for storage	-25…85 °C
Resistance to electrostatic discharge	15 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Vibration resistance	1 gn conforming to IEC 61131-2 2007
Shock resistance	15 gn conforming to IEC 61131-2 2007
Relative humidity	0…95 % without condensation

Packaging

Package 1	1 PCE, 14.500 cm × 12.000 cm × 1.000 cm (L × W × H), 25.000 g
Package 2	50 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 1.566 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet TMASD1PDF
