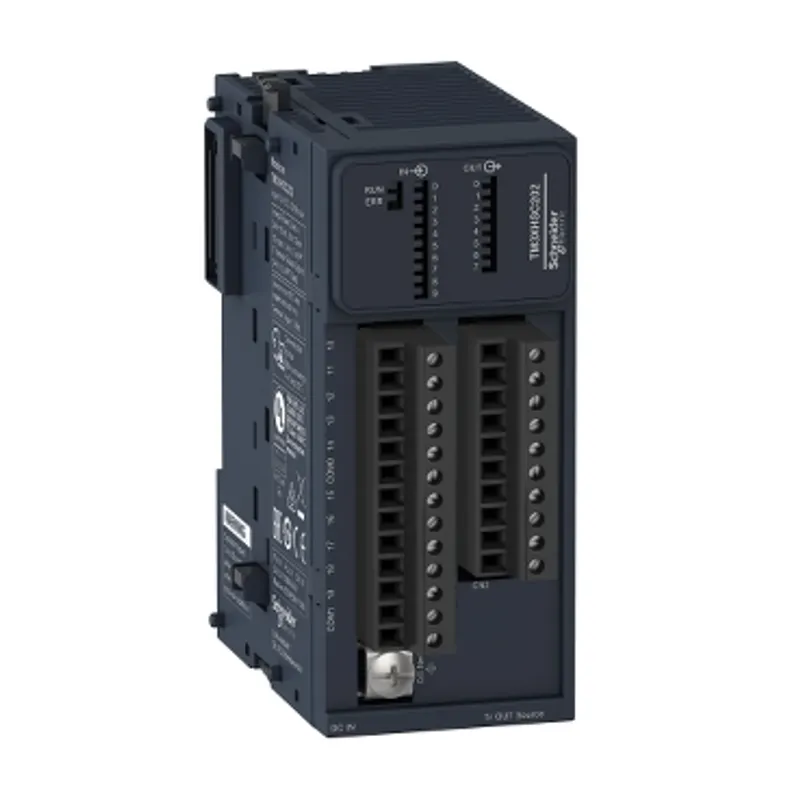

counter module, Modicon TM3, high speed, 2 channels HSC, 10 inputs, 8 outputs, screw

Name: counter module, Modicon TM3, high speed, 2 channels HSC, 10 inputs, 8 outputs, screw
Brand: Schneider Electric
SKU: TM3XHSC202

MPN: TM3XHSC202 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon TM3
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.15 kg

Shipping & availability

When can TM3XHSC202 be shipped?

TM3XHSC202 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TM3XHSC202 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TM3XHSC202 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM3XHSC202, subject to availability and destination.

Specifications

Range of product	Modicon TM3
Product or component type	Module hight speed counting
[Us] rated supply voltage	24 V DC by external supply (- 15...20 %)
Number of input channels	10
Number of output channels	8
Discrete I/O number	18
Range compatibility	Modicon M262
Current consumption	100 mA at 5 V DC, 50 mA at 24 V DC
Counting frequency	200 kHz
Discrete input voltage	24 V DC
Electrical circuit type	Standard input, Latch input
Discrete input logic	Sink or source
Output voltage	24 V DC for transistor output
Output voltage limits	30 V DC
Discrete output current	300 mA for fast output (Q0...Q7)
Discrete output logic	Source
Output protection type	Against overload and short-circuits
Reset	Automatic reset
Local signalling	1 LED for I/O, 1 LED for RUN, 1 LED for ERR
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715, Top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit
Services	HSC simple - functions available: One shot/Modulo, HSC main single phase - functions available: One shot/Modulo/Event counting, HSC main dual phase - functions available: Modulo/Free-large, Period meter - functions available: Edge to Edge, Edge to Opposite
Counting mode	2 main expert function (main counting function, frequency meter, period meter), Max 8 simple counting function
Event management	No event, Thresholds < 10 µs
Height	90 mm
Depth	85 mm
Width	39 mm
Net weight	150 g
DC supply voltage	24 V
Product certifications	cULus, IACS E10, RCM, CE, UKCA, EAC
Standards	CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 1604, CSA C22.2 No 213, EN/IEC 61131-2:2007, UL 508, EN/IEC 61010-2-201
Resistance to electrostatic discharge	8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2
Resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
Resistance to fast transients	2 kV for alimentation cable conforming to EN/IEC 61000-4-4, 1 kV for Ethernet line conforming to EN/IEC 61000-4-4, 1 kV for serial link conforming to EN/IEC 61000-4-4, 1 kV for input conforming to EN/IEC 61000-4-4, 1 kV for transistor output conforming to EN/IEC 61000-4-4
Resistance to conducted disturbances	10 V 0.15...80 MHz conforming to EN/IEC 61000-4-4
Electromagnetic emission	Conducted emissions - test level: 120...69 dBµV/m QP at 10…150 kHz conforming to EN/IEC 55011, Conducted emissions - test level: 63 dBμV/m QP at 1.5…30 MHz conforming to EN/IEC 55011, Radiated emissions - test level: 40 dBµV/m class A at 30…230 MHz conforming to EN/IEC 55011, Conducted emissions - test level: 79...63 dBμV/m QP at 150…1500 kHz conforming to EN/IEC 55011, Radiated emissions - test level: 47 dBµV/m class A at 230…1000 MHz conforming to EN/IEC 55011
Ambient air temperature for operation	-20…60 °C horizontal installation, -20…50 °C vertical installation
Ambient air temperature for storage	-40…85 °C
Relative humidity	10…95 %, without condensation (in operation), 10…95 %, without condensation (in storage)
IP degree of protection	IP20
Pollution degree	2
Operating altitude	0...2000 m
Storage altitude	0…3000 m
Vibration resistance	3.5 mm at 2…8.4 Hz on DIN rail, 1 gn at 8.4…200 Hz on DIN rail, 3.5 mm at 2…8.4 Hz on panel, 1 gn at 8.4…200 Hz on panel
Shock resistance	15 gn for 11 ms
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.200 cm
Package 1 Width	10.400 cm
Package 1 Length	12.400 cm
Package 1 Weight	220.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	18
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.700 kg
Warranty (in months)	18
