TM3TI4DAnalog input module, Modicon TM3, 4 temperature differential inputs, screw, 24V DC

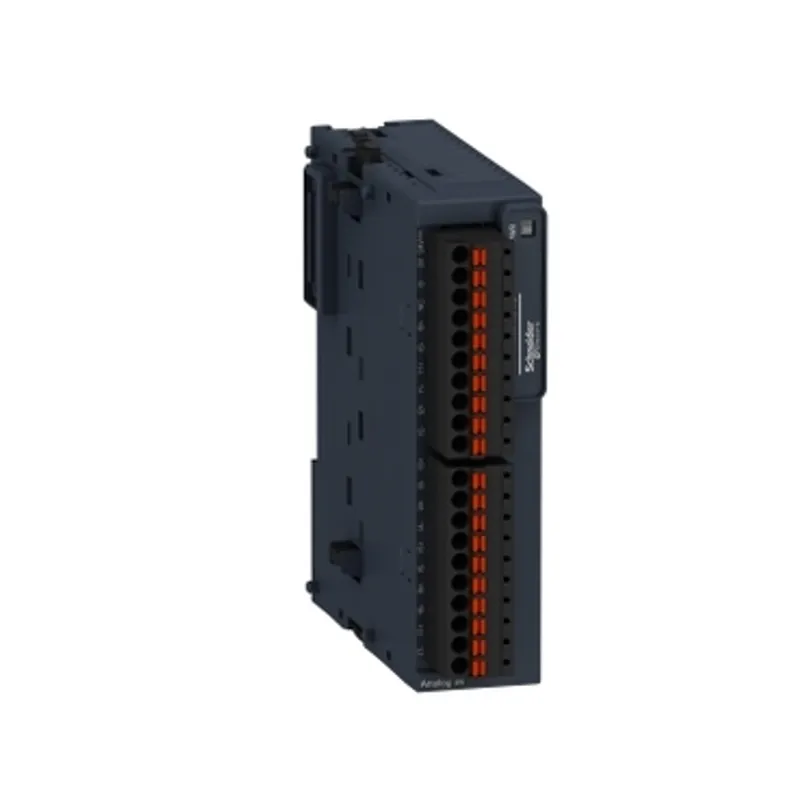

Schneider Electric TM3TI8TG
Analog input module, Modicon TM3, 8 temperature inputs, spring, 24V DC
- MPN
- TM3TI8TG
- EAN
- 3606480649035
- Category
- Modicon TM3
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric TM3TI8TG?
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 8 inputs with 16bit and 15bit + sign resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 30mA at 24V DC via external supply, 45mA/40mA at 5V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.1kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Specifications
Specifications
| Range of product | Modicon TM3 |
| Product or component type | Analog input module |
| Range compatibility | Modicon M221, Modicon M241, Modicon M251, Modicon M262 |
| Analogue input number | 8 |
| Analogue input type | Thermocouple - 200...1000 °C thermocouple J, Thermocouple - 200...1300 °C thermocouple K, Thermocouple 0...1760 °C thermocouple R, Thermocouple 0...1760 °C thermocouple S, Thermocouple 0...1820 °C thermocouple B, Thermocouple - 200...400 °C thermocouple T, Thermocouple - 200...1300 °C thermocouple N, Thermocouple - 200...800 °C thermocouple E, Thermistor -90...150 °C NTC 10k, Thermistor 100...10000 Ohm PTC |
| Analogue input resolution | 16 bits, 15 bits + sign |
| Input impedance | >= 1 MOhm |
| Sampling duration | 100 ms |
| Conversion time | 100 ms + 100 ms per channel + 1 controller cycle time |
| Absolute accuracy error | +/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C, +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C, +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C, +/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C, +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C, +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C, +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C, +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C, +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C |
| Repeat accuracy | +/-0.5 %FS |
| Cross talk | <= 1 LSB |
| Type of cable | Twisted shielded pairs cable <30 m for input circuit |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply, 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| LSB value | 0.1 °C, 1 Ohm |
| Insulation | Between output and supply at 1500 V AC, Between output and internal logic at 500 V AC |
| Immunity to microbreaks | 10 ms |
| Temperature drift | +/- 0.01 %FS/°C |
| Non-linearity | +/- 0.2 %FS |
| Typical current consumption | 30 mA at 24 V DC, 45 mA at 5 V DC, 40 mA at 5 V DC |
| Local signalling | 1 LED green for PWR |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715, Top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit |
| Height | 90 mm |
| Width | 23.6 mm |
| Depth | 70 mm |
| Net weight | 0.1 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | CE, UKCA, RCM, EAC, CULus, CULus HazLoc |
| Standards | IEC 61131-2 |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011, Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Ambient air temperature for operation | -10…55 °C (horizontal installation), -10…35 °C (vertical installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail, 3 gn (f = 8.4…150 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
Packaging
| Package 1 | 1 PCE, 13.000 cm × 11.000 cm × 8.000 cm (L × W × H), 185.000 g |
| Package 2 | 9 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.335 kg |
| Package 3 | 288 P12, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 75.696 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TM3TI8TG: frequently asked questions
When can TM3TI8TG be shipped?
TM3TI8TG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TM3TI8TG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TM3TI8TG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM3TI8TG, subject to availability and destination.
