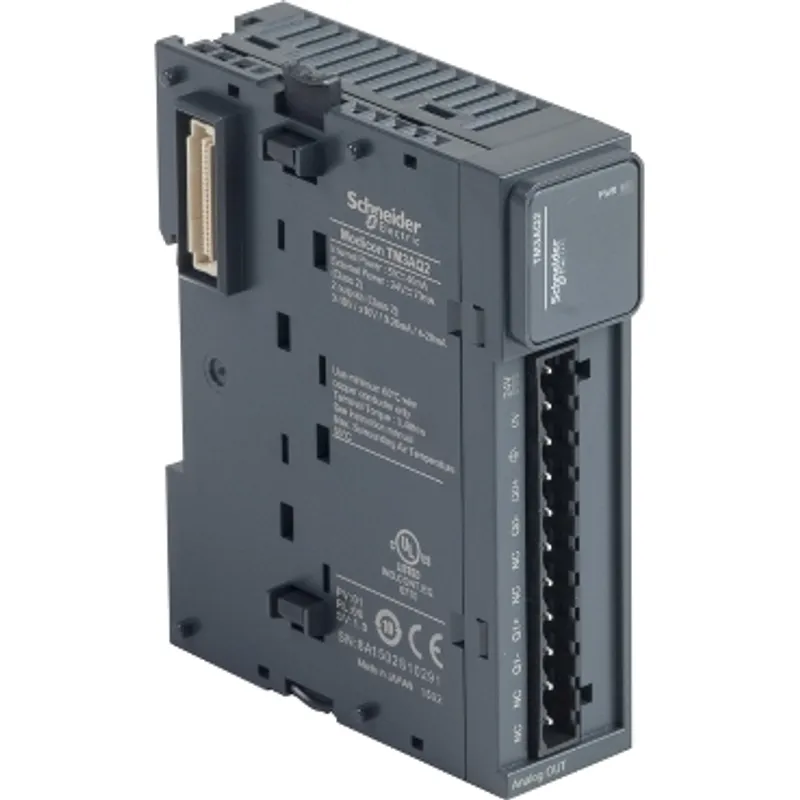

Schneider Electric TM3AQ2
Analog output module, Modicon TM3, 2 outputs, screw, 24V DC
- MPN
- TM3AQ2
- EAN
- 3606480648960
- Category
- Modicon TM3
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric TM3AQ2?
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue output module provides 2 outputs with 11bit + sign and 12bit resolution. It is an output module with a rated supply voltage of 24V DC and a current consumption of 70mA at 24V DC via external supply full load. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Specifications
Specifications
| Range of product | Modicon TM3 |
| Product or component type | Analog output module |
| Range compatibility | Modicon M221, Modicon M241, Modicon M251, Modicon M262 |
| Analogue output number | 2 |
| Analogue input resolution | 12 bits, 11 bits + sign |
| Stabilisation time | 1 ms |
| Analogue output type | Current: 4...20 mA, Current: 0...20 mA, Voltage: 0...10 V, Voltage: - 10...10 V |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Absolute accuracy error | +/- 0.1 % of full scale at 25 °C, +/- 1 % of full scale |
| Repeat accuracy | +/- 0.4 %FS |
| Output ripple | 20 mV |
| Cross talk | <= 1 LSB |
| Type of cable | Twisted shielded pairs cable <30 m for output circuit |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs and supply |
| LSB value | 2.44 mV, 0...10 V, 4.88 mV, - 10...10 V, 4.88 µA, 0...20 mA, 3.91 µA, 4...20 mA |
| Insulation | Between output and supply at 1500 V AC, Between output and internal logic at 500 V AC |
| Immunity to microbreaks | 10 ms |
| Load impedance ohmic | 1 kOhm voltage, 300 Ohm current |
| load type | Resistive |
| Temperature drift | +/- 0.006 %FS/°C |
| Non-linearity | +/- 0.01 %FS |
| Typical current consumption | 40 mA at 5 V DC full load, 35 mA at 5 V DC no load, 30 mA at 24 V DC no load, 70 mA at 24 V DC full load |
| Local signalling | 1 LED green for PWR |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715, Top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit |
| Height | 90 mm |
| Width | 23.6 mm |
| Depth | 70 mm |
| Net weight | 0.115 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | CE, UKCA, RCM, EAC, CULus, CULus HazLoc |
| Standards | IEC 61131-2 |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011, Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Ambient air temperature for operation | -10…55 °C (horizontal installation), -10…35 °C (vertical installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail, 3 gn (f = 8.4…150 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
Packaging
| Package 1 | 1 PCE, 12.698 cm × 10.629 cm × 7.566 cm (L × W × H), 220.0 g |
| Package 2 | 42 S04, 60 cm × 40 cm × 30 cm (L × W × H), 10.32 kg |
| Package 3 | 336 P12, 80 cm × 120 cm × 75 cm (L × W × H), 94 kg |
