Schneider Electric TM1STNTCW69755

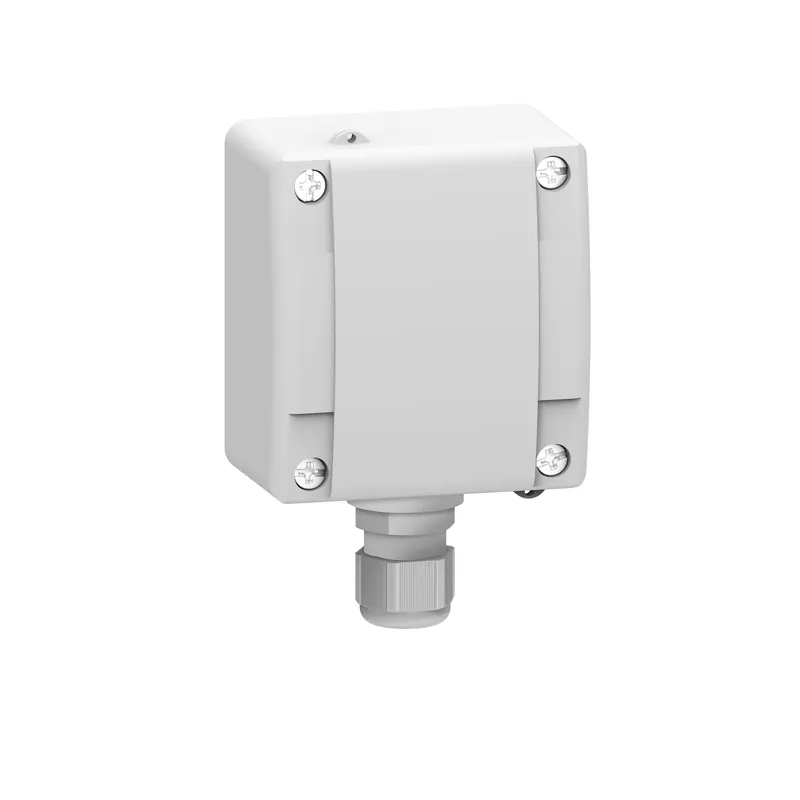

NTC for air wall mounting
- MPN
- TM1STNTCW69755
- EAN
- 3606481390189
- Category
- Modicon M171/M172/M173
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric TM1STNTCW69755?
"This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This probe controls the temperature level from minus 50 to 100 degrees Celsius." "This temperature probe has an IP 65 rate." "It is an outside air wall-mounting probe." "It has one NTC output (temperature)." "It measures 75mm high, 69mm wide, and 44mm deep, and weighs 0.050kg." "It is made to control temperature in HVAC or Pumping Applications." "It is sold in a 1-piece package." "It is suitable for panel mounting with two Ø4mm hole, 53mm width center distance, and 62mm height center distance." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon M171/M172 |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part type | Probe |
Complementary
| Temperature probe type | NTC |
| Device mounting | Wall mounted |
| Mounting support | Mounting box |
| Output type | NTC 10 kOhm/25 °C +/- 1 °C |
| Product specific application | Outdoor temperature measurement |
| Measurement range | - 50...100 °C |
| Electrical connection | Screw-clamp terminals |
| fixing mode | 2 fixing points |
| Width | 69 mm |
| Height | 75 mm |
| Depth | 44 mm |
Environment
| IP degree of protection | IP65 |
| Ambient air temperature for operation | -50…100 °C |
| Ambient air temperature for storage | -50…100 °C |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TM1STNTCW69755: frequently asked questions
When can TM1STNTCW69755 be shipped?
TM1STNTCW69755 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TM1STNTCW69755 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TM1STNTCW69755 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM1STNTCW69755, subject to availability and destination.
