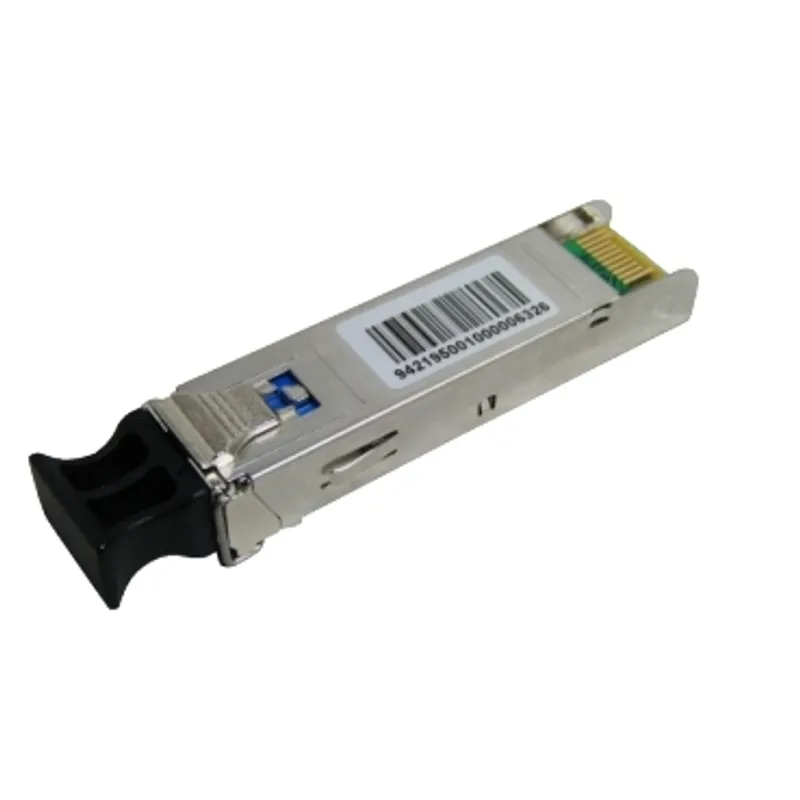

Schneider Electric TCSEAAF1LFU00
Fiber SFP module for TCSESM switches - 1000BASE-SX, multimode
- MPN
- TCSEAAF1LFU00
- EAN
- 3595863892499
- Category
- Modicon Networking
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric TCSEAAF1LFU00?
This product is part of the Modicon Networking range, an accessory of Modicon Switch. This product is a multi mode fiber optic adaptor. It comes with 1000BASE-SX Ethernet port. Its dimensions are 20mm (width) x 18mm (height) x 50mm (depth) and weighs 0.040 kg. It is compatible with MCSESM and TCSESM switch. The Modicon Switch range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Specifications
Specifications
| Range of product | Modicon Networking |
| Product or component type | SFP module |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Fiber optic adaptor |
| Accessory / separate part designation | Fiber optic adaptor |
| Accessory / separate part destination | Gigabit ports with LC connector |
| Mode of transmission | Multi mode 50/125 µm, Multi mode 62.5/125 µm |
| Product compatibility | MCSESM switch, TCSESM switch |
| Depth | 50 mm |
| Port Ethernet | 1000BASE-SX |
| Width | 20 mm |
| Height | 18 mm |
| Net weight | 0.04 kg |
| Ambient air temperature for operation | 0…60 °C |
Packaging
| Package 1 | 1 PCE, 17.500 cm × 12.500 cm × 3.700 cm (L × W × H), 76.000 g |
| Package 2 | 32 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.216 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TCSEAAF1LFU00: frequently asked questions
When can TCSEAAF1LFU00 be shipped?
TCSEAAF1LFU00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TCSEAAF1LFU00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TCSEAAF1LFU00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TCSEAAF1LFU00, subject to availability and destination.
