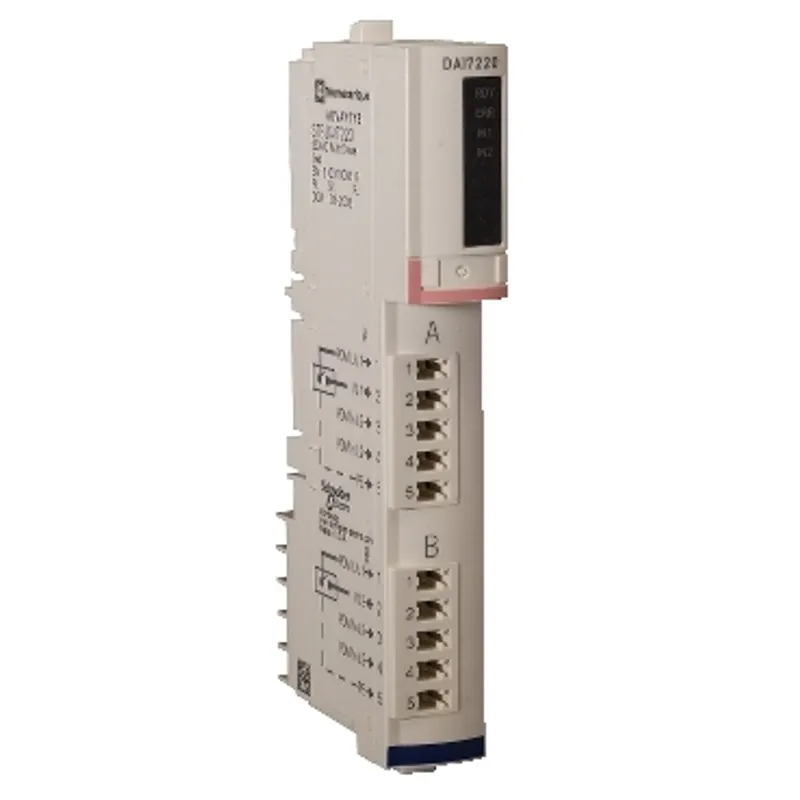

Schneider Electric STBDAI7220K
Standard digital input kit - Modicon STB - 230 V AC - 2 I
- MPN
- STBDAI7220K
- EAN
- 3595863991130
- Category
- Modicon STB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric STBDAI7220K?
Schneider Electric standard digital input kit - Modicon STB - 230 V AC - 2 I, manufacturer part number STBDAI7220K. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Standard digital input kit |
| Kit composition | STBXTS1110, 5-terminal screw type connector, STBDAI7220 module, STBXTS2110, 5-terminal spring clamp connector, STBXBA2000 base |
| Product compatibility | Power distribution module STBPDT2100/2105, I/O base STBXBA2000 |
| Discrete input number | 2 type 1 at 230 V AC |
| Voltage state 0 guaranteed | 0...40 V |
| Current state 1 guaranteed | >= 4 mA |
| Current state 0 guaranteed | <= 2 mA |
| Discrete input frequency | 47...63 Hz |
| Response time on input | 1.5 ms (off to on), 1.5 ms (on to off) |
| Protection type | Reverse polarity, Short-circuit and automatic overload protection |
| Power supply type | Power distribution module |
| Typical current consumption | 40 mA at 5 V DC for logic bus |
| Electrical connection | Screw terminal |
| Isolation between channels and bus | 1780 Vrms for 1 minute |
| Hot swapping fallback | Yes for standard NIMs |
| Local signalling | 1 LED (green) for module status (RDY), 1 LED per channel (green) for channel status (IN1 to IN2), 1 LED (red) for module error (ERR) |
| Height | 18.4 mm |
| Width | 125 mm |
| Depth | 65.1 mm |
| Net weight | 0.122 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | CSA, UL, FM Class 1 Division 2 |
| Standards | EN/IEC 61131-2 type 1 |
| Ambient air temperature for operation | 0…60 °C (without derating) |
| Ambient air temperature for storage | -40…85 °C without derating |
| Relative humidity | 95 % at 60 °C without condensation |
| Operating altitude | <= 2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3 gn (f = 58…150 Hz) on 35 mm DIN rail, 5 gn (f = 58…150 Hz) on 35 mm DIN rail, +/- 3.5 mm (f = 10…58 Hz) |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
Packaging
| Package 1 | 1 PCE, 13.000 cm × 8.000 cm × 2.700 cm (L × W × H), 140.000 g |
| Package 2 | 28 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 4.172 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
STBDAI7220K: frequently asked questions
When can STBDAI7220K be shipped?
STBDAI7220K is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up STBDAI7220K in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for STBDAI7220K and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for STBDAI7220K, subject to availability and destination.
