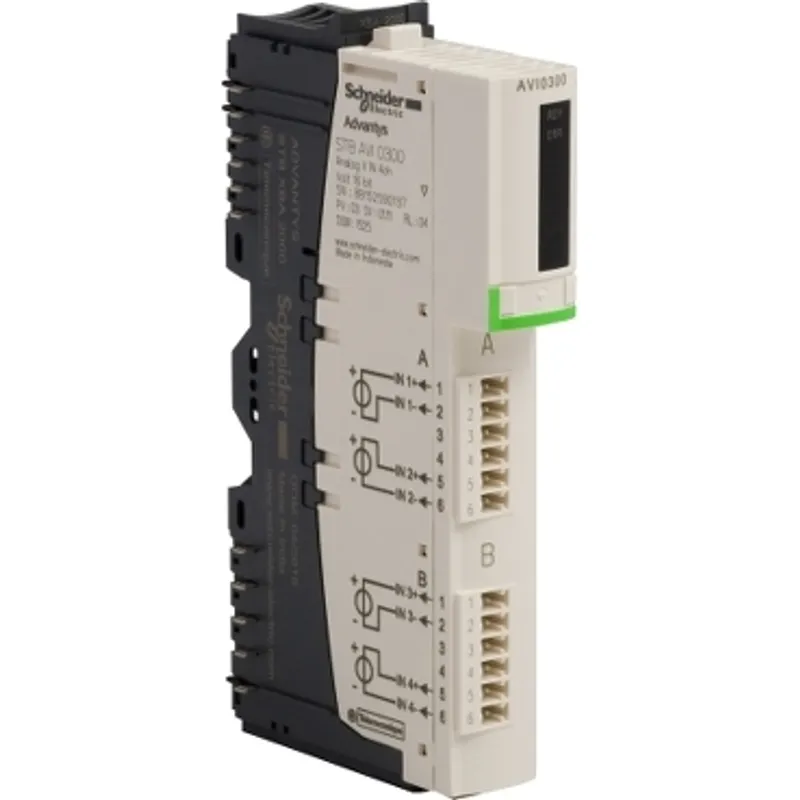

Schneider Electric STBAVI0300K
Analog input kit, Modicon STB, standard, +/- 10V, 4 I, 15bits with sign
- MPN
- STBAVI0300K
- EAN
- 3595863948707
- Category
- Modicon STB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric STBAVI0300K?
"This input kit is part of the Modicon STB range, an offer of modular distributed I/O." "This standard analog input kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC)." "The kit has 4 analog inputs." "Setting can be done via Advantys STB configuration software." "It weighs 0.11kg." "It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications." "The kit includes STBXBA1000 base, STBAVI0300 module, STBXTS1100 6-terminal screw type connector, and STBXTS2100 6-terminal spring clamp connector." "The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network."
Specifications
Specifications
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Standard analog input kit |
| Kit composition | STBAVI0300 module, STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base |
| Product compatibility | Mounting base STBXBA1000, Power distribution module STBPDT3100/3105 |
| Analogue input number | 4 |
| Analogue output number | 0 |
| Hot swapping fallback | Yes for standard NIMs |
| Height | 18.4 mm |
| Width | 128.3 mm |
| Depth | 70 mm |
| Marking | CE |
| Relative humidity | 95 % at 60 °C without condensation |
Packaging
| Package 1 | 1 PCE, 13.200 cm × 8.000 cm × 2.200 cm (L × W × H), 148.000 g |
| Package 2 | 28 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 4.670 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
STBAVI0300K: frequently asked questions
When can STBAVI0300K be shipped?
STBAVI0300K is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up STBAVI0300K in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for STBAVI0300K and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for STBAVI0300K, subject to availability and destination.
