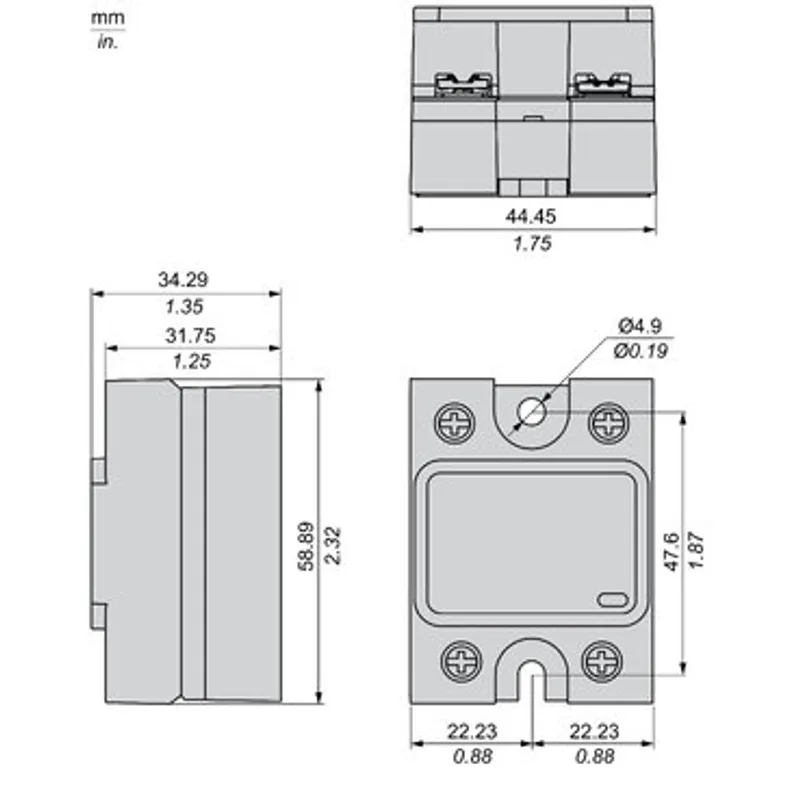

Schneider Electric SSP1D412BDT
Single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC
- MPN
- SSP1D412BDT
- EAN
- 3606485442006
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric SSP1D412BDT?
This Harmony SSP solid state panel mount single-phase relay is rated 12A, is controlled with a 3.5V to 32V DC input, has a rated load voltage of 1V to 150V DC with DC switching. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Provided accessory | Thermal pad |
| Product or component type | Panel mount relay |
| Device short name | SSP1 |
| Mounting support | Panel |
| Number of phases | 1 phase |
| [In] rated current | 12 A |
| Solid state output type | DC switching, Mosfet output |
| Output switching mode | DC switching |
| test button | Without test button |
| [Uc] control circuit voltage | 3.5...32 V DC |
| Minimum switching voltage | 3.5 V DC turn-on |
| Maximum switching voltage | 1 V DC turn-off |
| Response time | 0.1 ms (turn-on), 0.1 ms (turn-off) |
| Input current | 10…15 mA |
| Output voltage | 1...150 V DC |
| Load current | 0.001…12 A |
| Surge current | 31 A for 10 ms |
| Co-ordination type | Type 1 - 10 A miniature circuit breaker (MCB) - curve B, Type 2 - 6 A miniature circuit breaker (MCB) - curve B |
| Maximum leakage current | 0.3 mA off-state |
| Maximum voltage drop | <2.8 V on-state |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Maximum capacitance | 50 pF for input/output |
| Dielectric strength | 2.5 kV AC for input/output, 2.5 kV AC for input or output to case |
| [Uimp] rated impulse withstand voltage | 2.5 kV output to case |
| Tightening torque | 1.5...1.7 N.m for input, 2...2.2 N.m for output |
| Connections - terminals | Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input, Screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output, Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input, Screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output, Forked type tag connectors: 9.2 x 4 mm for input, Ring lugs: 9.2 x 4 mm for input, Forked type tag connectors: 11.7 x 4.5 mm for output, Ring lugs: 11.7 x 4.5 mm for output |
| Thermal resistance | 0.71 °C/W junction to case |
| thermal pad impedance | 0.48 °C-in²/W at 25 psi |
| LED indicator | LED, green for input |
| IP degree of protection | IP20 |
| Safety reliability data | MTTFd = 1875.9 years, B10d = 1731395 |
| Net weight | 89.2 g |
| Device presentation | Complete product |
| Ambient air temperature for operation | -40…80 °C |
| Ambient air temperature for storage | -40…125 °C |
| Pollution degree | 2 |
| Overvoltage category | III |
| Product certifications | CE, UL, EAC, CSA |
| Marking | CE, UL, EAC, CSA |
| Standards | IEC 62314, UL 508, IEC 60950-1, CSA C22.2 No 14-13 |
Packaging
| Package 1 | 1 PCE, 6.5 cm × 4.8 cm × 3.8 cm (L × W × H), 95.0 g |
| Package 2 | 30 S01, 40.0 cm × 15.0 cm × 15.0 cm (L × W × H), 3.162 kg |
