single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 4 to 32V DC, output 48 to 660V AC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Harmony Solid State Relays |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 89.2 kg |
Shipping & availability
When can SSP1A450BDT be shipped?
SSP1A450BDT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SSP1A450BDT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SSP1A450BDT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SSP1A450BDT, subject to availability and destination.

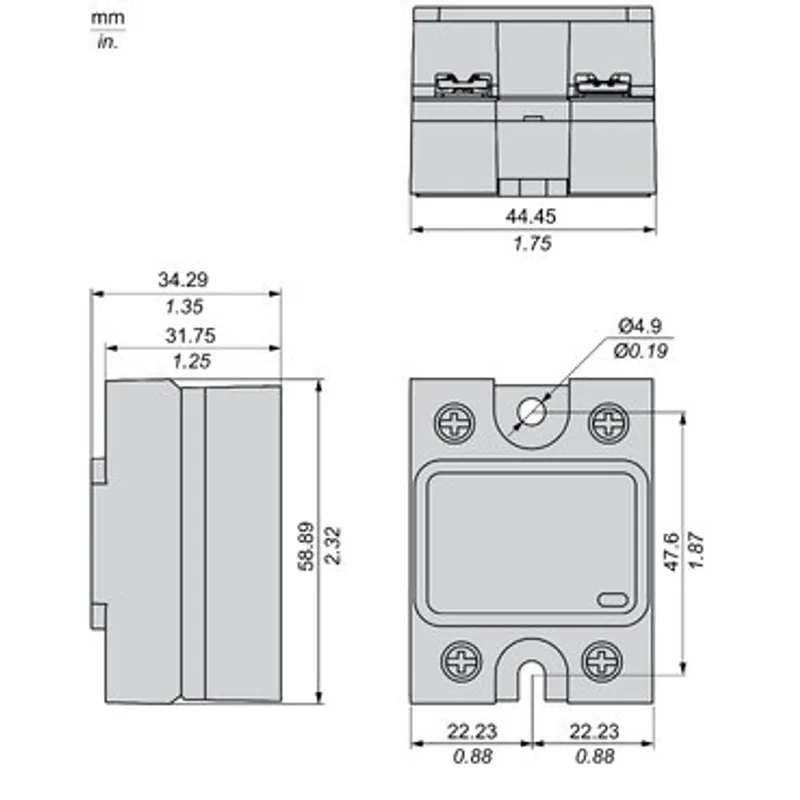

This Harmony SSP solid state panel mount single-phase relay is rated 50A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Provided accessory | Thermal pad |
| Product or component type | Panel mount relay |
| Device short name | SSP1 |
| Mounting support | Panel |
| Number of phases | 1 phase |
| [In] rated current | 50 A |
| Solid state output type | SCR output, Zero voltage switching |
| Output switching mode | Zero voltage switching |
| test button | Without test button |
| [Uc] control circuit voltage | 4...32 V DC |
| Minimum switching voltage | 4 V DC turn-on |
| Maximum switching voltage | 1 V DC turn-off |
| Response time | 0.5 cycle (turn-on), 0.5 cycle (turn-off) |
| Input current | 7…12 mA |
| Output voltage | 48...660 V AC |
| Load current | 0.15…50 A |
| Transient overvoltage | 1200 V |
| Surge current | 625 A for 16.6 ms |
| Maximum I²t for fusing | 1770 A².s for 10 ms at 50 Hz, 1629 A².s for 8.33 ms at 60 Hz |
| Co-ordination type | Type 1 - 40 A miniature circuit breaker (MCB) - curve B, Type 2 - 32 A miniature circuit breaker (MCB) - curve B |
| Maximum leakage current | 1 mA off-state |
| Maximum voltage drop | <1.15 V on-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Power factor | 0.5 (with maximum load) |
| Motor controller rating | 0.75 hp 120 V AC, 2 hp 240 V AC, 5 hp 480 V AC |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Maximum capacitance | 8 pF for input/output |
| Dielectric strength | 4 kV AC for input/output, 4 kV AC for input or output to case |
| [Uimp] rated impulse withstand voltage | 6 kV output to case, 6 kV input to output |
| Tightening torque | 1.5...1.7 N.m for input, 2...2.2 N.m for output |
| Connections - terminals | Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input, Screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output, Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input, Screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output, Forked type tag connectors: 9.2 x 4 mm for input, Ring lugs: 9.2 x 4 mm for input, Forked type tag connectors: 11.7 x 4.5 mm for output, Ring lugs: 11.7 x 4.5 mm for output |
| Thermal resistance | 0.45 °C/W junction to case |
| thermal pad impedance | 0.48 °C-in²/W at 25 psi |
| LED indicator | LED, green for input |
| IP degree of protection | IP20 |
| Safety reliability data | B10d = 1731395, MTTFd = 1875.9 years |
| Net weight | 89.2 g |
| Device presentation | Complete product |
| Ambient air temperature for operation | -40…80 °C |
| Ambient air temperature for storage | -40…125 °C |
| Pollution degree | 2 |
| Overvoltage category | III |
| Product certifications | UL, CE, EAC, CSA |
| Marking | EAC, UL, CE, CSA |
| Standards | CSA C22.2 No 14-13, UL 508, IEC 60950-1, IEC 62314 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.800 cm |
| Package 1 Width | 4.800 cm |
| Package 1 Length | 6.500 cm |
| Package 1 Weight | 97.000 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.250 kg |
| Warranty (in months) | 18 |
