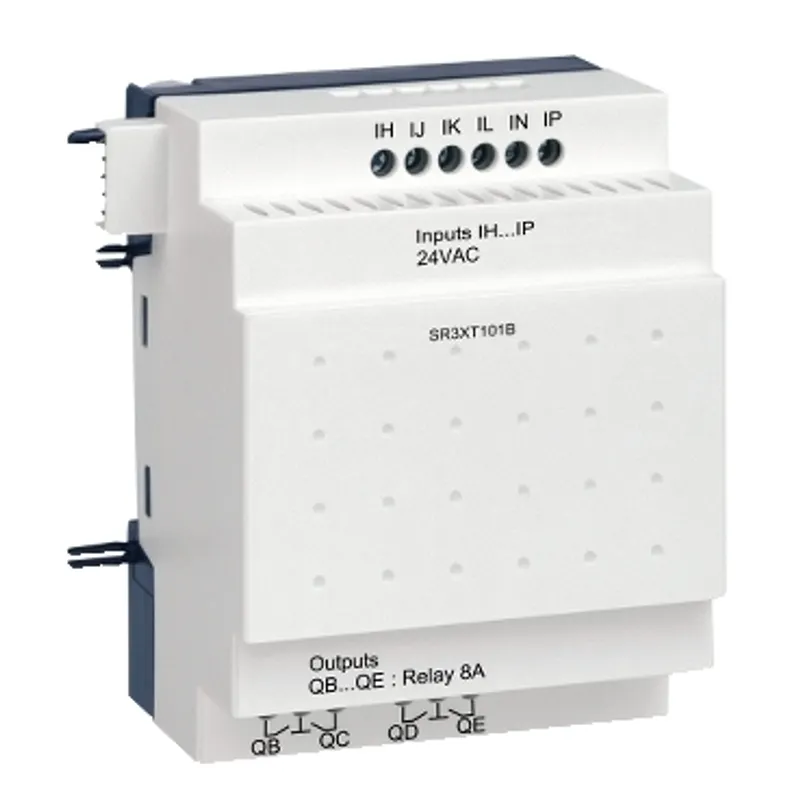

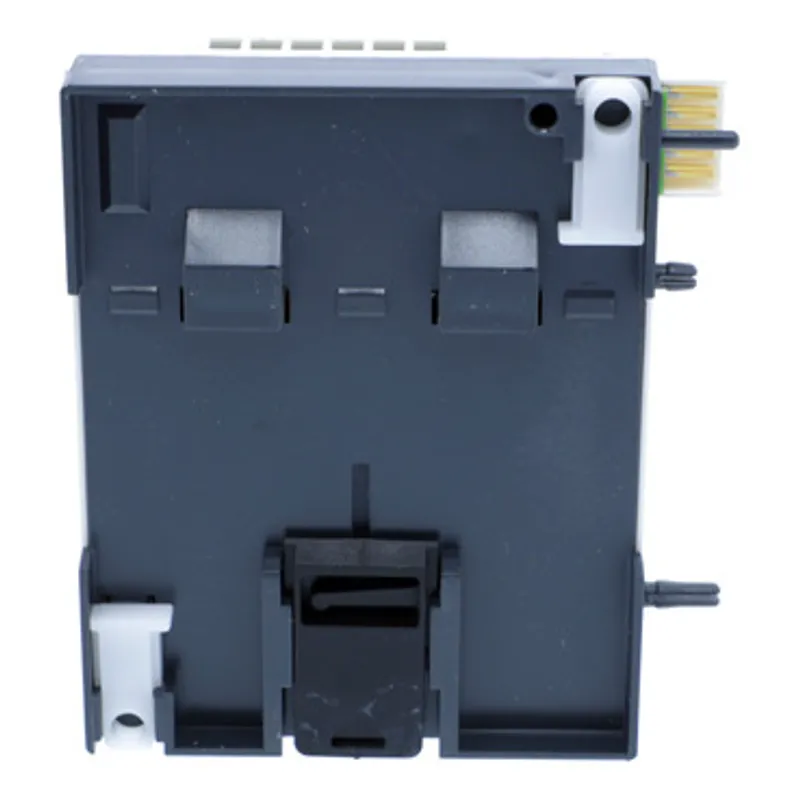

Schneider Electric SR3XT101B
Discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 24V AC
- MPN
- SR3XT101B
- EAN
- 3389110550184
- Category
- Zelio Logic SR2/SR3
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric SR3XT101B?
This product is part of Zelio Logic SR2/SR3, an offer of smart relays for simple automation systems from 10 to 40 I/Os. This discrete I/O extension module offers 6 discrete inputs with 4 relay outputs. It is a module with discrete input voltage of 24V AC with discrete input frequency of 47Hz to 53Hz, 57Hz to 63Hz. It is an IP20 and IP40 rated product. It weighs 0.2kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 61000-4-2 L3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 L3 and EN/IEC 60068-2-6 Fc standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Specifications
Specifications
| Range of product | Zelio Logic |
| Product or component type | Discrete I/O extension module |
| Number or control scheme lines | 120 with ladder programming |
| Cycle time | 6…90 ms |
| Backup time | 10 years at 25 °C |
| Clock drift | 12 min/year at 0…55 °C |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 24 V AC |
| Supply voltage limits | 20.4…28.8 V |
| Supply frequency | 50/60 Hz |
| Reverse polarity protection | With |
| Discrete input number | 6 |
| Discrete input voltage | 24 V AC |
| Discrete input current | 4.4 mA |
| Discrete input frequency | 47...53 Hz, 57...63 Hz |
| Voltage state 1 guaranteed | >= 14 V for discrete input |
| Voltage state 0 guaranteed | <= 5 V for discrete input |
| Current state 1 guaranteed | >= 2 mA (discrete input) |
| Current state 0 guaranteed | <= 0.5 mA (discrete input) |
| Input impedance | 4.6 kOhm for discrete input |
| Number of outputs | 4 relay |
| Output voltage limits | 5...30 V DC (relay output), 24...250 V AC |
| Contacts type and composition | NO for relay output |
| Output thermal current | 8 A for all 4 outputs for relay output |
| Electrical durability | AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1, DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1 |
| Switching capacity in mA | >= 10 mA at 12 V (relay output) |
| Operating rate in Hz | 0.1 Hz (at Ie) for relay output, 10 Hz (no load) for relay output |
| Mechanical durability | 10000000 cycles for relay output |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| Response time | 50 ms with ladder programming (from state 0 to state 1) for discrete input, 50 ms with ladder programming (from state 1 to state 0) for discrete input, 50...255 ms with FBD programming (from state 0 to state 1) for discrete input, 50...255 ms with FBD programming (from state 1 to state 0) for discrete input, 10 ms (from state 0 to state 1) for relay output, 5 ms (from state 1 to state 0) for relay output |
| Connections - terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid, Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid |
| tightening torque | 0.5 N.m |
| Overvoltage category | III conforming to IEC 60664-1 |
| Net weight | 0.2 kg |
| Product certifications | GOST, GL, C-Tick, CSA, UL |
| Standards | IEC 61000-4-2 level 3, IEC 61000-4-5, IEC 61000-4-6 level 3, IEC 60068-2-6 Fc, IEC 60068-2-27 Ea, IEC 61000-4-11, IEC 61000-4-3, IEC 61000-4-12, IEC 61000-4-4 level 3 |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529 |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone B, Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| Pollution degree | 2 conforming to IEC 61131-2 |
| Ambient air temperature for operation | -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2, -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3048 m |
| Relative humidity | 95 % without condensation or dripping water |
Packaging
| Package 1 | 1 PCE, 10.000 cm × 9.000 cm × 6.500 cm (L × W × H), 182.000 g |
| Package 2 | 30 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.945 kg |
