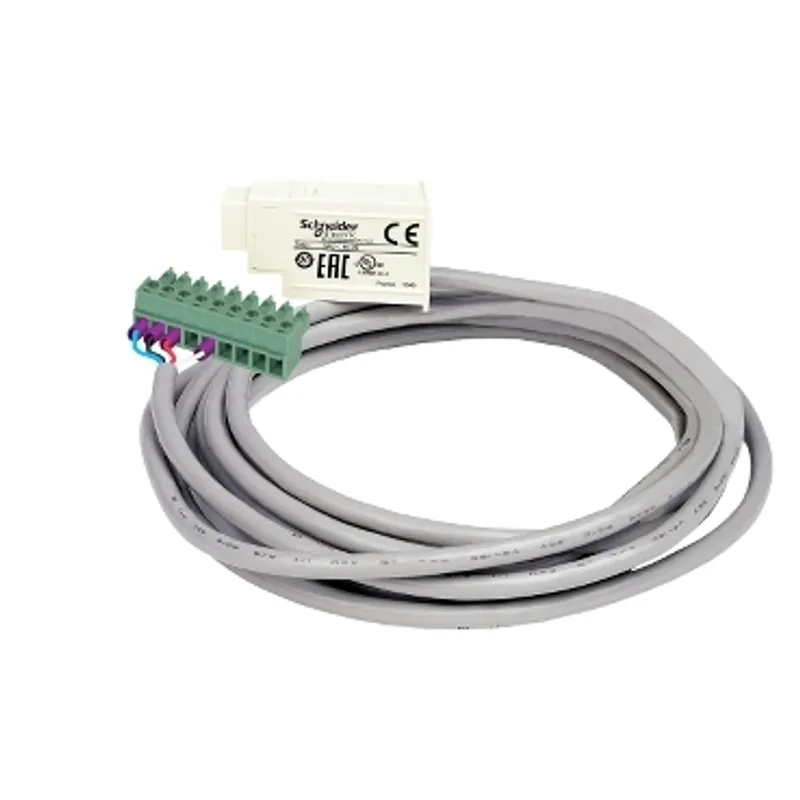

Schneider Electric SR2CBL09
Connecting cable, Zelio Logic Sr2 SR3, Magelis small panel, for smart relay
- MPN
- SR2CBL09
- EAN
- 3606480388583
- Category
- Zelio Logic SR2/SR3
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric SR2CBL09?
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. This connecting cable enables to link Magelis small panel to Zelio Logic smart relay. The length of this cable is 2.5m. This connecting cable is equipped with 3-pin connector and 9-pin terminal block. It offers RS232 physical interface. It is suitable for use with Vijeo Designer software and to link Magelis small panel to smart relay. This product is compatible with Zelio Logic compact and modular smart relay HMISTO501. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
Specifications
Specifications
| Range of product | Zelio Logic |
| Accessory / separate part type | Connecting cable |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | For smart relay |
| Product specific application | To be used with Vijeo Designer software, To link Magelis small panel to smart relay |
| Product compatibility | Zelio Logic compact and modular smart relay, HMISTO501, HMISTO705 |
| Cable length | 2.5 m |
| Connector type | 3-pin for a programming terminal, 9-pin terminal block |
| Physical interface | RS232 |
Packaging
| Package 1 | 1 PCE, 15.000 cm × 14.000 cm × 1.000 cm (L × W × H), 72.000 g |
| Package 2 | 30 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.466 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SR2CBL09: frequently asked questions
When can SR2CBL09 be shipped?
SR2CBL09 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SR2CBL09 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SR2CBL09 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SR2CBL09, subject to availability and destination.
