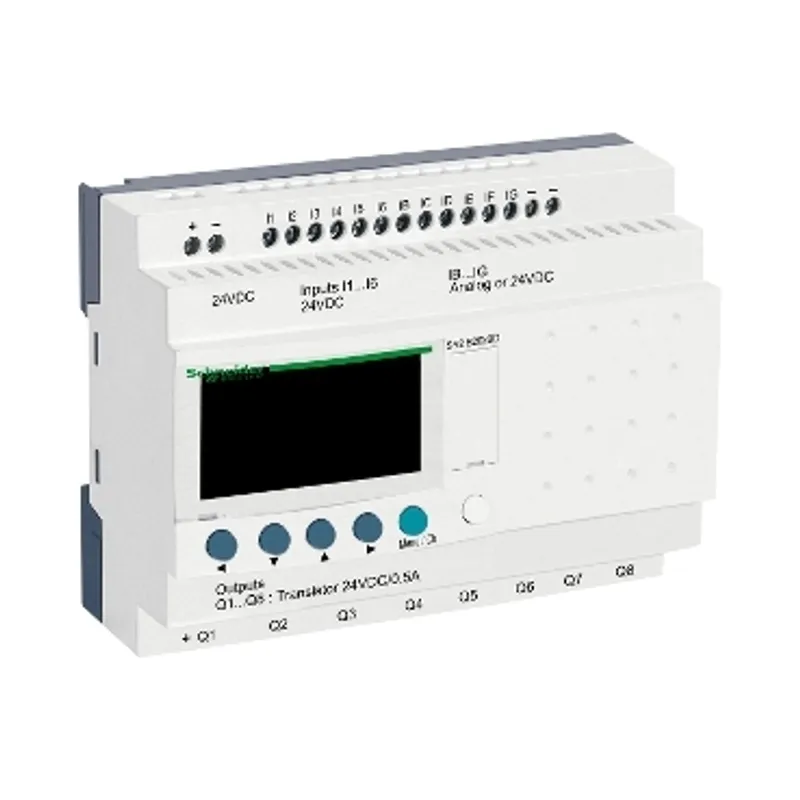

Schneider Electric SR2B202BD
Compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V DC, clock, display, 8 transistor outputs
- MPN
- SR2B202BD
- EAN
- 3389110549430
- Category
- Zelio Logic SR2/SR3
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric SR2B202BD?
This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic compact smart relay features 20 I/Os, local display, 0 to 240 with ladder and 0 to 500 with FBD programming control scheme lines. It is a module with rated supply voltage of 24V DC and cycle time of 6ms to 90ms. It offers 12 resistive discrete inputs with voltage of 24V DC, 6 analogue input ranges from 0V to 10V, 0V to 12V and 8 transistor outputs with voltage of 24V. It is an IP20 and IP40 rated product. It weighs 0.28kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Specifications
Specifications
| Range of product | Zelio Logic |
| Product or component type | Compact smart relay |
| Local display | With |
| Number or control scheme lines | 0…240 with ladder programming, 0…500 with FBD programming |
| Cycle time | 6…90 ms |
| Backup time | 10 years at 25 °C |
| Clock drift | 12 min/year at 0…55 °C, 6 s/month at 25 °C |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…30 V |
| Maximum supply current | 100 mA (without extension) |
| Power dissipation in W | 3 W without extension |
| Reverse polarity protection | With |
| Discrete input number | 12 conforming to IEC 61131-2 Type 1 |
| Discrete input type | Resistive |
| Discrete input voltage | 24 V DC |
| Discrete input current | 4 mA |
| Counting frequency | 1 kHz for discrete input |
| Voltage state 1 guaranteed | >= 15 V for I1...IA and IH...IR discrete input circuit, >= 15 V for IB...IG used as discrete input circuit |
| Voltage state 0 guaranteed | <= 5 V for I1...IA and IH...IR discrete input circuit, <= 5 V for IB...IG used as discrete input circuit |
| Current state 1 guaranteed | >= 1.2 mA (IB...IG used as discrete input circuit), >= 2.2 mA (I1...IA and IH...IR discrete input circuit) |
| Current state 0 guaranteed | <= 0.5 mA (IB...IG used as discrete input circuit), <= 0.75 mA (I1...IA and IH...IR discrete input circuit) |
| Input compatibility | 3-wire proximity sensors PNP for discrete input |
| Analogue input number | 6 |
| Analogue input type | Common mode |
| Analogue input range | 0...10 V, 0...24 V |
| Temperature probe type | NTC 10k at 25 °C, NTC 1000k at 25 °C, KTY81 210/220/221/222/250, Pt 500 |
| Maximum permissible voltage | 30 V for analogue input circuit |
| Analogue input resolution | 8 bits |
| LSB value | 39 mV for analogue input circuit |
| Conversion time | Smart relay cycle time for analogue input circuit |
| Conversion error | +/- 5 % at 25 °C for analogue input circuit, +/- 6.2 % at 55 °C for analogue input circuit |
| Repeat accuracy | +/- 2 % at 55 °C for analogue input circuit |
| Operating distance | 10 m between stations, with screened cable (sensor not isolated) for analogue input circuit |
| Input impedance | 12 kOhm for IB...IG used as analogue input circuit, 12 kOhm for IB...IG used as discrete input circuit, 7.4 kOhm for I1...IA and IH...IR discrete input circuit |
| Number of outputs | 8 transistor |
| Output voltage | 24 V transistor output |
| Output voltage limits | 19.2...30 V DC (transistor output) |
| Load current | 0.5…0.625 A transistor output |
| [Ures] residual voltage | 2 V at state 1 transistor output |
| Overload protection | With overload protection for transistor output |
| Short-circuit protection | With transistor output |
| Overvoltage protection | With overvoltage protection for transistor output |
| Clock | With |
| Response time | <= 1 ms (from state 0 to state 1) for transistor output, <= 1 ms (from state 1 to state 0) for transistor output |
| Connections - terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid, Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| tightening torque | 0.5 N.m |
| Overvoltage category | III conforming to IEC 60664-1 |
| Net weight | 0.28 kg |
| Immunity to microbreaks | 1 ms |
| Product certifications | CSA, UL, GOST, GL, C-Tick |
| Standards | IEC 61000-4-4 level 3, IEC 60068-2-27 Ea, IEC 61000-4-5, IEC 61000-4-6 level 3, IEC 61000-4-11, IEC 61000-4-2 level 3, IEC 61000-4-3, IEC 61000-4-12, IEC 60068-2-6 Fc |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529 |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone B, Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| Pollution degree | 2 conforming to IEC 61131-2 |
| Ambient air temperature for operation | -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2, -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3048 m |
| Relative humidity | 95 % without condensation or dripping water |
Packaging
| Package 1 | 1 PCE, 13.300 cm × 10.000 cm × 6.600 cm (L × W × H), 294.000 g |
| Package 2 | 20 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.370 kg |
