Schneider Electric RXZE2M114
Harmony, plugin relay socket, mixed contact, 10 A, 250 V, screw clamp, for RXM2 or RXM4 relays
- MPN
- RXZE2M114
- EAN
- 3389119404242
- Category
- Harmony Timer Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric RXZE2M114?
"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays, Harmony Timer Relays |
| Product compatibility | Plug-in relay RXM with 2 C/O contact, Plug-in relay RXM with 4 C/O contact, Plug-in relay REXL with 2 C/O contact, Plug-in relay REXL with 4 C/O contact, Plug-in relay 782H with 4 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 10 A |
| Product or component type | Socket |
| Contacts type and composition | 4 C/O |
| [Ue] rated operational voltage | < 250 V conforming to IEC, < 300 V conforming to UL |
| Connections - terminals | Screw clamp terminals, 1 x 0.34...1 x 1 mm² (AWG 22...AWG 17) flexible with cable end, Screw clamp terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Shape of pin | Flat |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel), Clip-on (35 mm symmetrical DIN rail) |
| Wire stripping length | 8 mm |
| Contact terminal arrangement | Mixed |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |

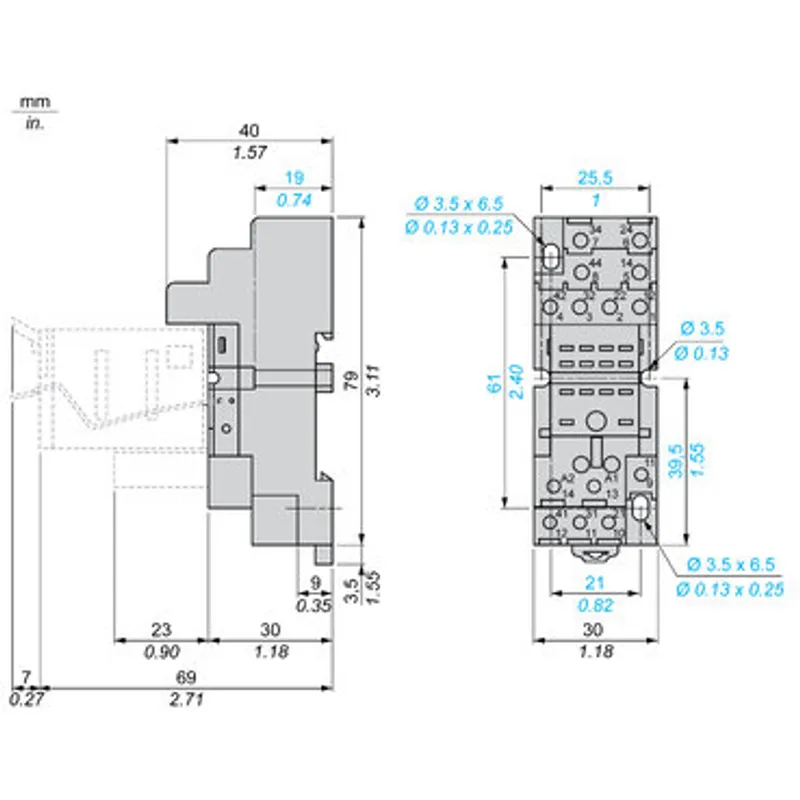

| Width | 30 mm |
| Net weight | 0.051 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | UL, CSA, Lloyd's |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
Packaging
| Package 1 | 1 PCE, 7.000 cm × 3.100 cm × 2.600 cm (L × W × H), 56.000 g |
| Package 2 | 10 BB1, 15.500 cm × 8.900 cm × 7.600 cm (L × W × H), 600.000 g |
| Package 3 | 200 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 12.449 kg |
