Schneider Electric RUZC3M
Socket, Harmony Electromechanical Relays, for RUMC3 relays, 10A, screw connec to rs, mixed contact
- MPN
- RUZC3M
- EAN
- 3389119403207
- Category
- Harmony Timer Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric RUZC3M?
"This Harmony RUZ plug-in relay socket has a coil control voltage of 250V AC and has mixed contacts with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays, Harmony Timer Relays |
| Device short name | RUZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RUM with 3 C/O contact, Plug-in relay RE48A with 2 C/O contact |
| [Ith] conventional free air thermal current | 10 A |
| [Ue] rated operational voltage | < 250 V |
| Contacts type and composition | 3 C/O |
| Connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Shape of pin | Cylindrical |
| Tightening torque | < 1 N.m for M3.5 screw(s) |
| Fixing mode | By screw (panel), Clip-on (35 mm symmetrical DIN rail) |
| Contact terminal arrangement | Mixed |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |

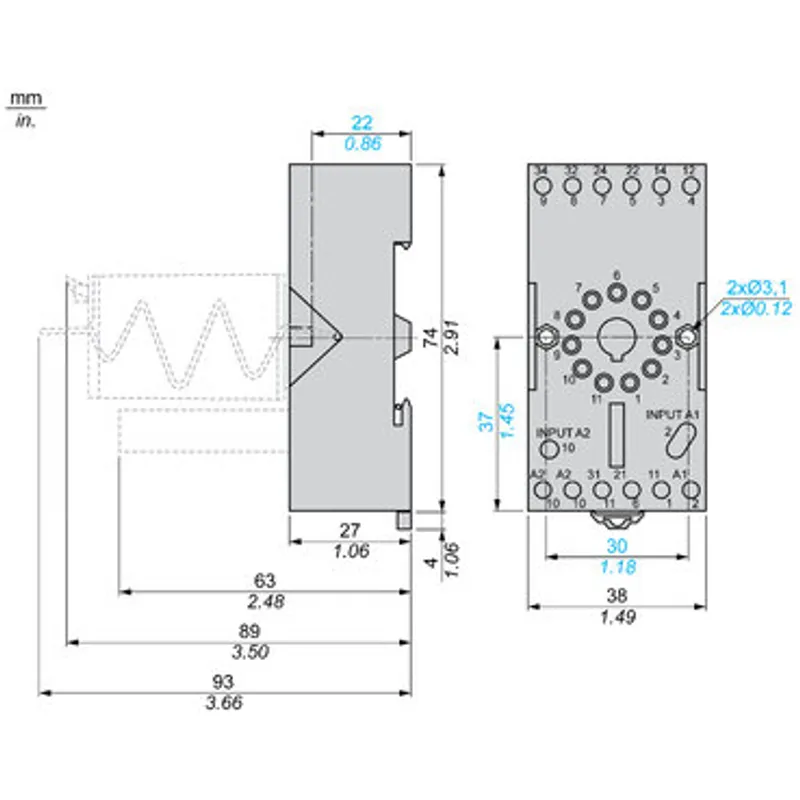

| Width | 38 mm |
| Net weight | 0.054 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC 61984 |
| Product certifications | CSA, UL |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
Packaging
| Package 1 | 1 PCE, 7.800 cm × 3.800 cm × 2.700 cm (L × W × H), 57.000 g |
| Package 2 | 10 BB1, 14.600 cm × 8.400 cm × 8.300 cm (L × W × H), 618.000 g |
| Package 3 | 200 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 12.600 kg |
