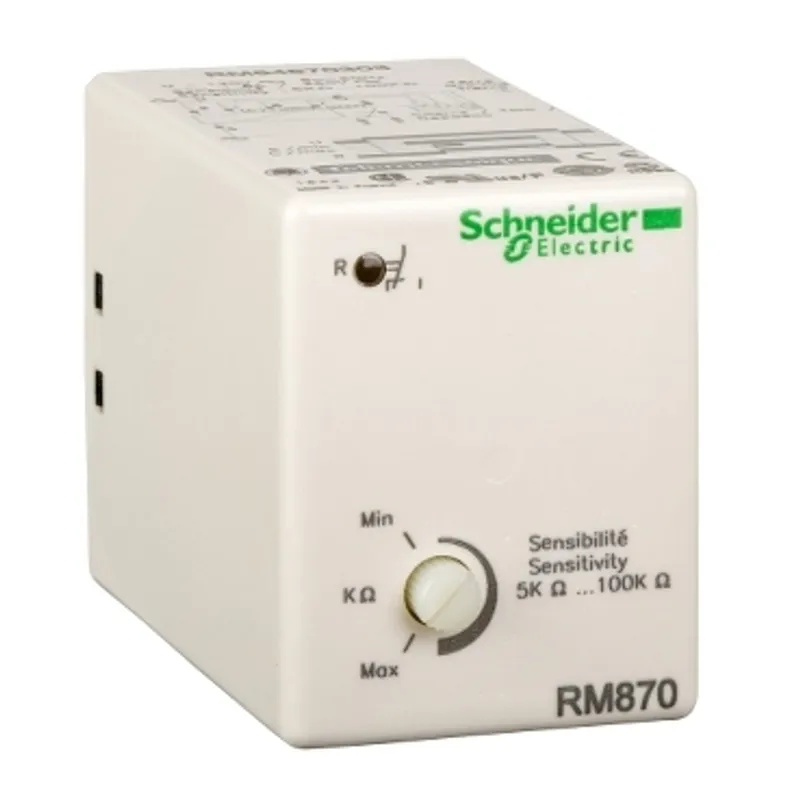

Schneider Electric RM84870301
Industrial measurement and relay, Harmony relay, plug-in liquid level control relay RM84, 8 pins, 24V AC, 1 C/O
- MPN
- RM84870301
- EAN
- 3389110282382
- Category
- Harmony Control Relays
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original RM84870301 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric RM84870301?
Schneider Electric Industrial measurement and relay, Harmony relay, plug-in liquid level control relay RM84, 8 pins, 24V AC, 1 C/O, manufacturer part number RM84870301. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Harmony Relay |
| Relay type | Plug-in liquid level control relay |
| Product or component type | Industrial measurement and control relays |
| Relay name | RM84870 |
| Relay monitored parameters | Detection by resistive probes |
| power consumption | 3 VA |
| Pin number | 8 |
| Voltage range | 0.85...1.15 x Un |
| Maximum electrode voltage | 24 V AC 50/60 Hz |
| Maximum electrode current | 1 mA 50/60 Hz |
| Measurement accuracy | 0...30 % |
| Maximum cable capacity | 0 mF |
| Response time | 300 ms high level, 500 ms low level |
| Contacts type and composition | 1 C/O for relay output, AgCdO, 1 C/O |
| Maximum output current | 8 mA AC AC-1 for resistive load |
| Isolation voltage | 2500 V AC contacts and electrodes from the supply |
| Sensitivity scale | 5...100 kOhm |
| Width | 39 mm |
| Product certifications | CSA, cULus |
| Ambient air temperature for storage | -30…70 °C |
| Ambient air temperature for operation | -20…60 °C |
Packaging
| Package 1 | 1 PCE, 13.500 cm × 9.400 cm × 6.000 cm (L × W × H), 171.900 g |
| Package 2 | 36 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.657 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
RM84870301: frequently asked questions
Can I still buy the RM84870301 now that it is discontinued?
Yes. Schneider Electric has discontinued the RM84870301, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can RM84870301 be shipped?
RM84870301 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RM84870301 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RM84870301 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RM84870301, subject to availability and destination.
