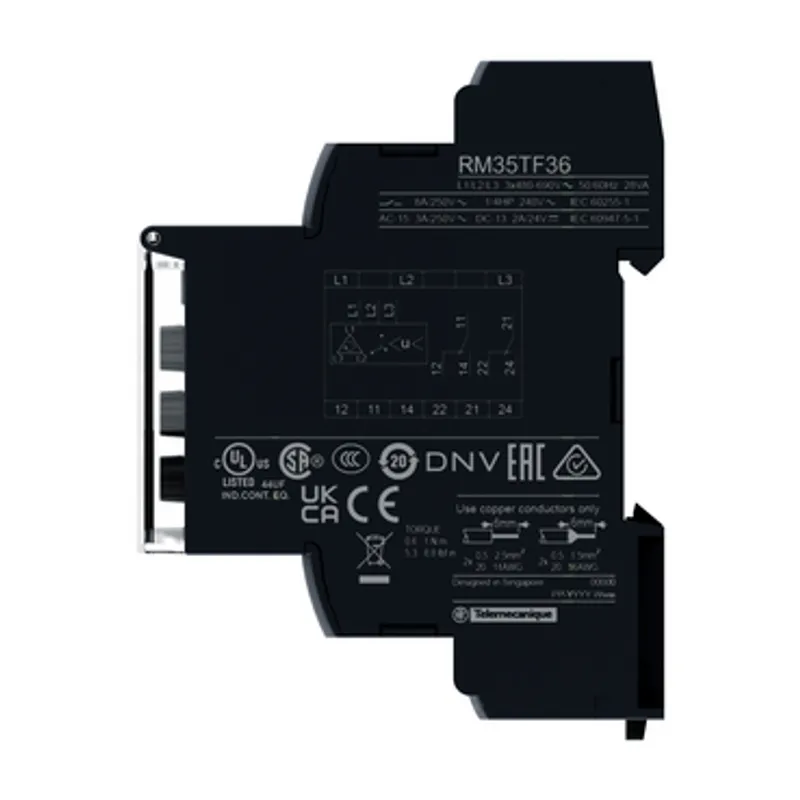

What is the Schneider Electric RM35TF36?
This Harmony RM35T multi-function control relay allows monitoring of power supply circuits in 3-phase networks. This modular multi-function 3-phase control relay is ideal for monitoring electrical values in industrial and building control panels. These Harmony Control Relays for 3-phase systems operate within a voltage range of 480 VAC up to 690V AC. It has one of the market medium form factors with 35 mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to the user for quick fault identification and troubleshooting. This is designed to monitor overvoltage and undervoltage conditions within a range of voltage range of 480 to 690V AC and weighs 120 grams. It applies to a wide range of industrial automation applications such as hoisting, mining, packaging, lifts, textile, and water. It conforms to international standards, UL, CSA, DNV-GL, CCC, CE, UKCA, and RCM certifications. Multi-function controller for a wide choice of selections in hard-wired logic automated systems, ideal for the refurbishment of old installations without using a PLC.
Specifications
Specifications
| Range of product | Harmony Control Relays |
| Relay type | Multifunction control relay |
| Product or component type | 3-phase control relay |
| Relay name | RM35TF |
| Relay monitored parameters | Undervoltage and overvoltage in window mode, Phase sequence, Phase failure detection, Asymmetry |
| Measurement range | 480...690 V AC |
| Time delay type | Adjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault |
| Output contacts | 2 C/O |
| nominal output current | 5 A |
| Contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 480...690 V |
| Product specific application | For 3-phase supply |
| [Us] rated supply voltage | 480...690 V AC, self-powered |
| Supply voltage limits | 384…828 V AC, 3 phases |
| Reset time | 1500 ms at 480 V |
| Maximum switching voltage | 250 V AC |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA at 12 V DC |
| Maximum switching current | 5 A AC, 5 A DC |
| Control circuit voltage limits | - 20 % + 20 % Un |
| Power consumption in VA | 0…22 VA at 690 V AC 50 Hz, 0…26 VA at 690 V AC 60 Hz |
| Voltage detection threshold | < 300 V |
| Control circuit frequency | 50...60 Hz +/- 5 % |
| Measurement voltage limits | 384…828 V AC |
| Hysteresis | 2 % fixed |
| delay at power up | 650 ms |
| Maximum measuring cycle | 140 ms measurement cycle as true rms value |
| Threshold adjustment voltage | -20...+20 % in the range 480...690 V AC |
| Voltage range | 480...690 V phase to phase |
| Adjustment of asymmetry threshold | 5...15 % of Un selected |
| Repeat accuracy | 3 % for time delay, 0.5 % for input and measurement circuit |
| Measurement error | < 1 % over the whole range with voltage variation, 0.05 %/°C with temperature variation |
| Response time | < 300 ms (in the event of a fault) |
| Insulation resistance | > 100 MOhm at 500 V DC conforming to IEC 60255-27 |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60664-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60664-1 |
| Supply frequency | 50/60 Hz +/- 5 % |
| Operating position | Any position without derating |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end, Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Housing material | Polycarbonate |
| Local signalling | LED (green) for power ON, LED (yellow) for relay ON, LED (yellow) for fault |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| Utilisation category | AC-12 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1 |

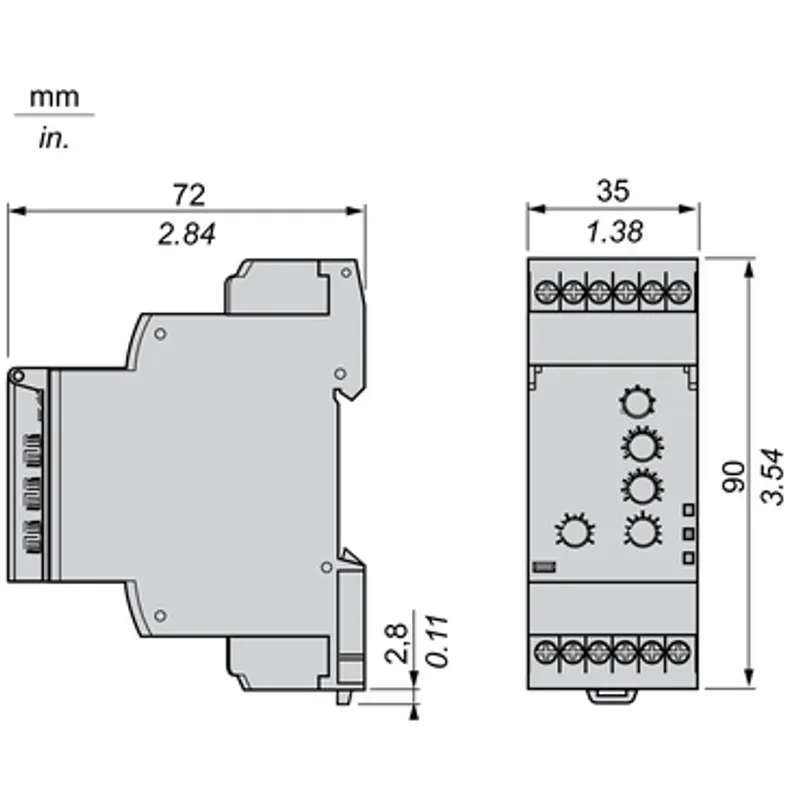

| Height | 90 mm |
| Width | 35 mm |
| Depth | 72 mm |
| Net weight | 0.12 kg |
| control type | Without test button |
| Tightening torque | 5.3...8.8 lb.in, 0.6...1 N.m |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4, Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, Immunity for industrial environments conforming to IEC 61000-6-2 |
| Standards | EN/IEC 60255-1 |
| Product certifications | DNV-GL, UL, CSA, RCM, CCC, CE, UKCA |
| Marking | WEEE, China RoHS, ROHS |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…60 °C |
| Relative humidity | 93…97 % at 25…55 °C conforming to IEC 60068-2-30 |
| Vibration resistance | 0.075 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6…150 Hz) |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529, IP30 (casing) conforming to IEC 60529, IP50 (front panel) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Overvoltage category | III conforming to IEC 60664-1 |
| Dielectric test voltage | 2.3 kV, 1 min AC 50/60 Hz conforming to IEC 60255-27 |
| Non-dissipating shock wave | 4 kV |
| Resistance to electrostatic discharge | 6 kV contact conforming to IEC 61000-4-2, 8 kV air |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
Packaging
| Package 1 | 1 PCE, 9.700 cm × 8.000 cm × 4.700 cm (L × W × H), 140.000 g |
| Package 2 | 48 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.465 kg |
