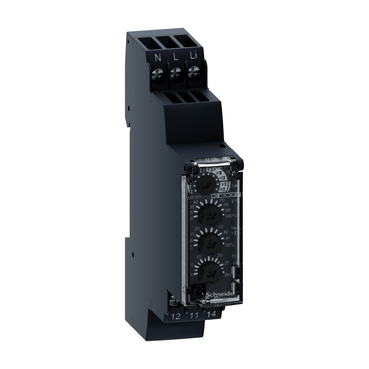

Schneider Electric RM17JA12M7
Current control relay, Harmony Control Relays, 5A, 1CO, overcurrent and undercurrent, 0.5...10A, 220 to 240V AC
- MPN
- RM17JA12M7
- EAN
- 3606487344629
- Category
- Harmony Control Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric RM17JA12M7?
This Harmony RM17JA relay allows monitoring of current control in single-phase networks. This modular multi-function single-phase current control relay is ideal for monitoring electrical values in industrial and building control panels. The Harmony Control Relays for single-phase systems operate within a voltage range of 220 to 240V AC. It has one of the market medium form factors with 17.5 mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to the user for quick fault identification and troubleshooting. This is designed to monitor overcurrent and undercurrent conditions within a range of 0.5 to 10A and weighs 70 grams. It applies to a wide range of industrial automation applications such as hoisting, mining, packaging, lifts, textile, and water. It conforms to international standards, cULus, DNV-GL, CE, UKCA, CCC, and RCM certifications. Multi-function controller for a wide choice of selections in hard-wired logic automated systems, ideal for the refurbishment of old installations without using a PLC.
Specifications
Specifications
| Range of product | Harmony Control Relays |
| Relay type | Current control relay |
| Product or component type | Current control relay |
| Relay name | RM17JA |
| Relay monitored parameters | Overcurrent or undercurrent in window mode, Overcurrent or undercurrent detection |
| Time delay type | Adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA at 12 V AC |
| Maximum switching current | 5 A AC/DC |
| Maximum power consumption in VA | 12 VA AC |
| Measurement range | 0.5...10 A current AC 50/60 Hz |
| Utilisation category | AC-15 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1, DC-1 conforming to IEC 60947-4-1, AC-1 conforming to IEC 60947-4-1 |
| Contacts type and composition | 1 C/O |
| Reset time | 1500 ms time delay |
| Maximum switching voltage | 250 V AC |
| Supply voltage limits | 198…264 V AC |
| operating voltage tolerance | - 10 % + 10 % Un |
| Maximum power consumption in W | 1.5 W AC |
| Control circuit frequency | 50...60 Hz +/- 5 % |
| Resistance across terminals | 0.005 Ohm at L - Li |
| Output contacts | 1 C/O |
| nominal output current | 5 A |
| Maximum measuring cycle | 100 ms measurement cycle as true rms value |
| Setting accuracy of the switching threshold | +/- 10 % of the full scale |
| Switching threshold drift | <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range |
| Time delay drift | <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range |
| Hysteresis | 5…50 % adjustable of threshold setting, 3 % fixed of full scale for window mode |
| delay at power up | 0.5 s |
| Measurement accuracy | +/- 10 % of the full scale value |
| Repeat accuracy | +/- 0.5 % for input and measurement circuit, +/- 2 % for time delay |
| Measurement error | < 1 % over the whole range with voltage variation, 0.5 %/°C with temperature variation |
| Threshold setting | 10...100 % |
| Marking | ROHS, WEEE, China RoHS |
| Overvoltage category | III conforming to IEC 60664-1 |
| Insulation resistance | > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1, > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5, > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 |
| Insulation | Between supply and measurement |
| Operating position | Any position without derating |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end, Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) flexible with cable end, Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end |
| Housing material | Polycarbonate |
| Local signalling | LED (green) for power ON, LED (yellow) for relay ON |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| [Us] rated supply voltage | 220...240 V AC/DC 50/60 Hz, self-powered |

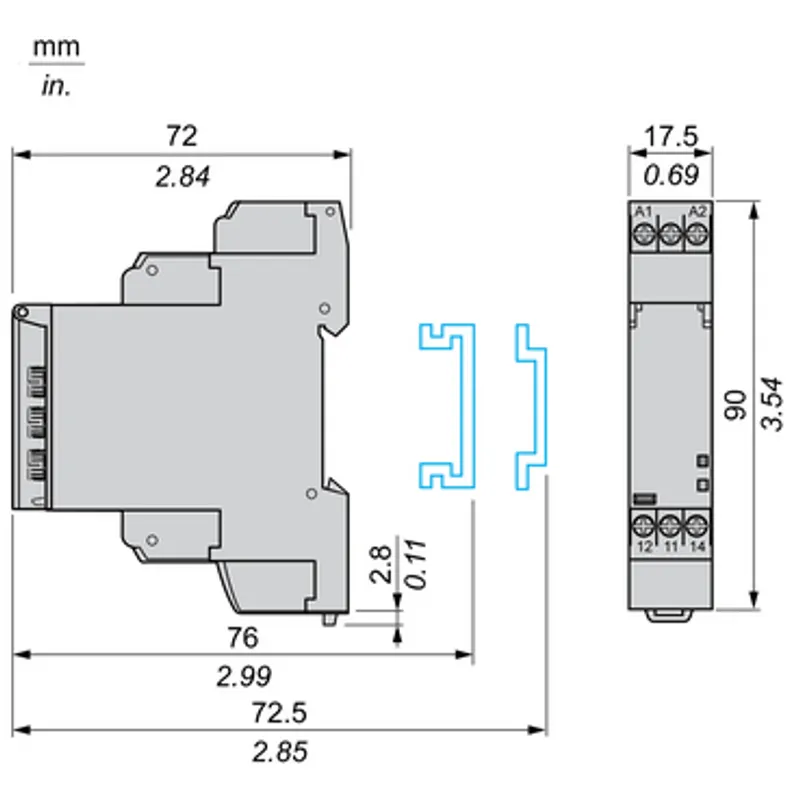

| Width | 17.5 mm |
| Height | 90 mm |
| Depth | 72 mm |
| control type | Without test button |
| Net weight | 0.07 kg |
| Tightening torque | 5.3...8.8 lb.in, 0.6...1 N.m |
| Immunity to microbreaks | 50 ms |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4, Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 |
| Standards | EN/IEC 60255-1, UL 508 |
| Product certifications | DNV-GL, cULus, UKCA, RCM, CE, CCC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…60 °C |
| Relative humidity | 93…97 % at 25…55 °C conforming to IEC 60068-2-30 |
| Vibration resistance | 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529, IP30 (housing) conforming to IEC 60529, IP50 (front panel) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Dielectric test voltage | 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5, 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1 |
| Non-dissipating shock wave | 4 kV conforming to IEC 60255-5, 4 kV conforming to IEC 60664-1, 4 kV conforming to IEC 61000-4-5 |
Packaging
| Package 1 | 1 PCE, 10.000 cm × 7.900 cm × 2.700 cm (L × W × H), 84.000 g |
| Package 2 | 48 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 4.352 kg |
| Package 3 | 1152 P06, 80.000 cm × 60.000 cm × 104.600 cm (L × W × H), 112.943 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
