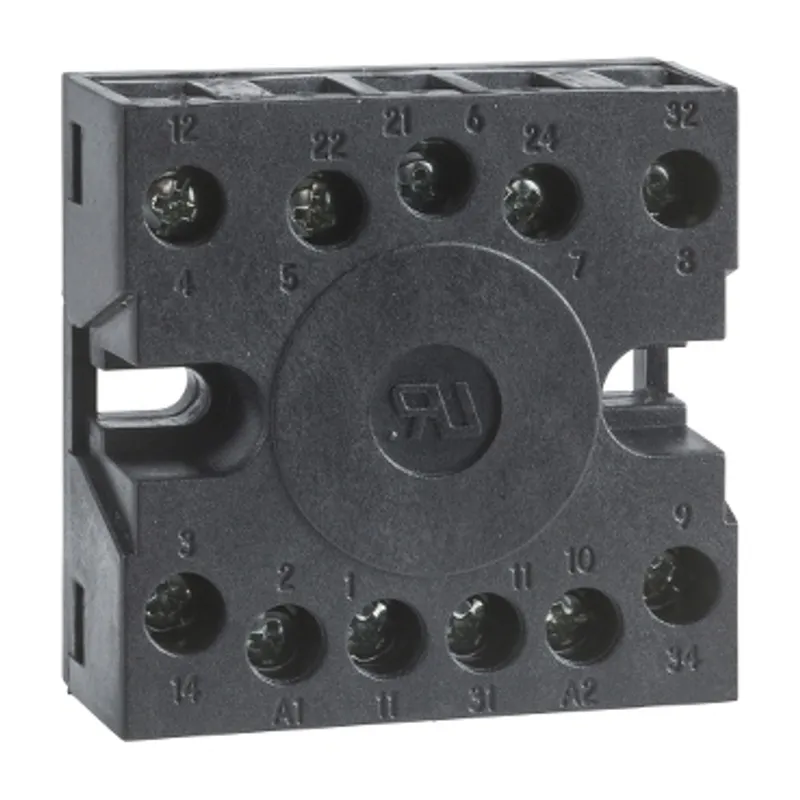

Schneider Electric RE48ASOC11AR
Socket, Harmony Timer Relays, for RE48 relays, screw terminals connections on rear face, 11 pins, IP 20
- MPN
- RE48ASOC11AR
- EAN
- 3389110740851
- Category
- Harmony Timer Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric RE48ASOC11AR?
RE48ASOC11AR is a Harmony Timer Relays socket designed as a connection accessory for compatible RE48 timing relays. This IP20-rated socket features 11 cylindrical pins and screw terminal connections on the rear face, providing secure and reliable wiring for industrial control applications. Designed to support relays with 2 changeover (2 C/O) contacts and a rated current of 5 A. The socket simplifies relay installation, replacement, and maintenance. RE48 timer relay range makes it an ideal accessory for timing and automation systems in industrial control panels.
Specifications
Specifications
| Range of product | Harmony Timer Relays |
| Product or component type | Socket |
| Product compatibility | RE48ACV12MW, RE48AML12MW |
| Accessory / separate part destination | Timing relay |
| Accessory / separate part designation | IP20 socket with screw terminal connections on rear face |
| Pin number | 11 pins |
| Accessory / separate part category | Connection accessories |
| Contacts type and composition | 2 C/O |
| Shape of pin | Cylindrical |
| Contact terminal arrangement | Mixed |
| IP degree of protection | IP20 |
Packaging
| Package 1 | 1 PCE, 4.700 cm × 4.700 cm × 2.200 cm (L × W × H), 47.000 g |
| Package 2 | 50 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 2.516 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
RE48ASOC11AR: frequently asked questions
When can RE48ASOC11AR be shipped?
RE48ASOC11AR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RE48ASOC11AR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RE48ASOC11AR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RE48ASOC11AR, subject to availability and destination.
