Schneider Electric NSYTSAKFL

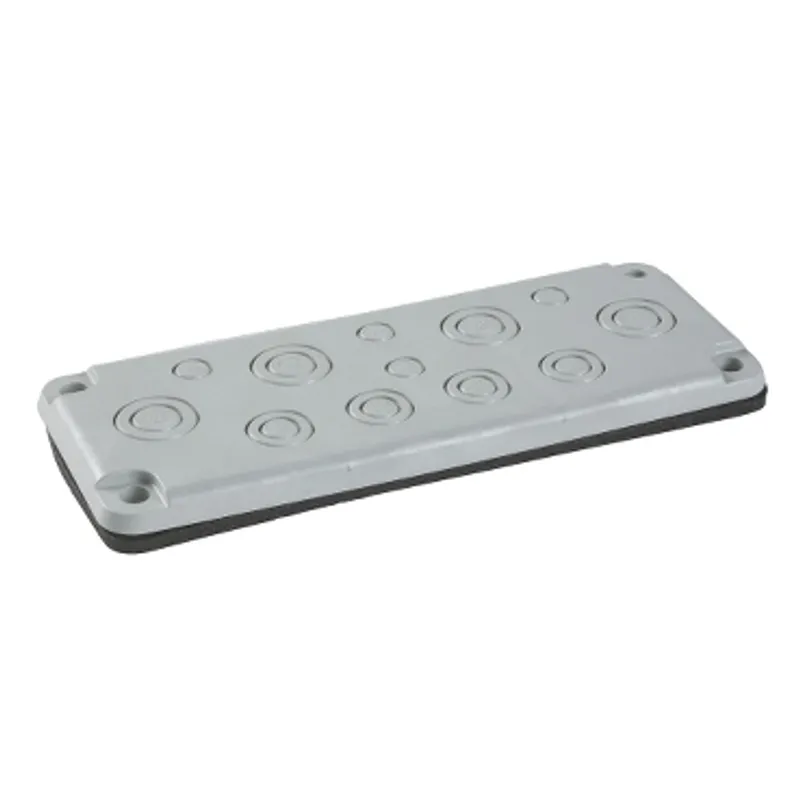

Membrane for cable entrance FL21 with 12 entrances IP65
- MPN
- NSYTSAKFL
- EAN
- 3606480326837
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYTSAKFL?
Membrane for cable entrance FL21 with 12 entrances IP65 The product is made from light grey PC (polycarbonate) reinforced with fibreglass (RAL 7035) Fixed on cable gland plate and body of enclosure The cable entry membrane has 12 cable entries The width is 215mm The height is 10mm The depth is 85mm The kit is made up of 1 membrane The fire resistance temperature is 750 °C Ambient air temperature for operation -40-80 °C Flame retardance V1 conforming to UL 94 Ingress protection rating IP65 conforming to IEC 60529
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable entry membrane |
| Accessory / separate part category | Cable management accessory |
| Device application | Multi-purpose |
| Range compatibility | PanelSeT S3D compact enclosure, PanelSeT S3CM control enclosure |
| Device composition | 1 membrane |
| Quantity per set | Set of 1 |
| Mounting support | Cable gland plate, Body of enclosure |
| Material | PC (polycarbonate) reinforced with fibreglass |
| Fixing mode | Clipped, By screws |
| Total cable entry number | 12 |
| Cable entry number | 4 x 12 mm, 4 x 12…20 mm, 4 x 16…25 mm |
| Height | 10 mm |
| Width | 215 mm |
| Depth | 85 mm |
| Colour | Light grey (RAL 7035) |
| Net weight | 0.15 kg |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Flame retardance | V1 conforming to UL 94 |
| Ambient air temperature for operation | -40…80 °C |
| Fire resistance | 750 °C |
Packaging
| Package 1 | 1 PCE, 2.000 cm × 8.500 cm × 22.500 cm (L × W × H), 180.000 g |
| Package 2 | 25 CAR, 40.000 cm × 30.000 cm × 20.000 cm (L × W × H), 4.768 kg |
| Package 3 | 350 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 87.000 kg |
