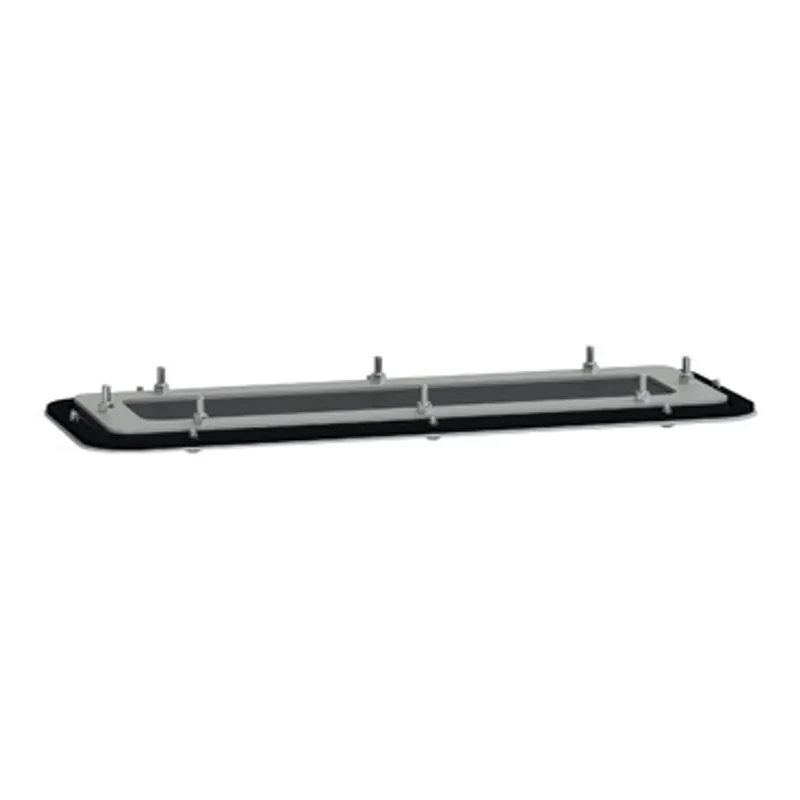

Schneider Electric NSYTLDME
PanelSeT S3D flexicable gland plate with membrane pearcable 278 x 63 mm
- MPN
- NSYTLDME
- EAN
- 3606480467646
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYTLDME?
Multi-purpose membrane flexicable gland plate for PanelSeT S3D enclosures The product is made of steel plate and HCE (heat curable elastomer) membrane The plate is 1,5mm thick The width is 345mm and real width is 360mm The height is 30mm The depth is 130mm The set contains 1 plate and membrane The flexicable gland plate is to be mounted on enclosure bottom The cable gland is undrilled Anti-corrosion protection is ensured by an epoxy-polyester powder coating
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Flexicable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT S3D |
| Mounting location | Enclosure bottom |
| Cable gland type | Pierceable by screwdriver |
| Type of gland plate | Membrane |
| Cable outer diameter | 10…26 mm |
| Cable entry | Without |
| Device composition | 1 plate, membrane |
| Quantity per set | Set of 1 |
| Material | Plate: steel, Membrane: HCE (heat curable elastomer) |
| Colour | Plate: grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Height | 30 mm |
| Width | 345 mm, Real: 360 mm |
| Depth | 130 mm |
| Net weight | 0.73 kg |
| thickness | 1.5 mm |
| Number of cut-out | Undrilled |
| Cut-out dimensions | 278 x 63 mm |
Packaging
| Package 1 | 1 PCE, 66.000 cm × 13.500 cm × 3.000 cm (L × W × H), 750.000 g |
| Package 2 | 100 P12, 120.000 cm × 80.000 cm × 41.000 cm (L × W × H), 87.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTLDME: frequently asked questions
When can NSYTLDME be shipped?
NSYTLDME is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTLDME in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTLDME and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTLDME, subject to availability and destination.
