Schneider Electric NSYTBS885
ABS industrial box, PanelSeT TBS, 89x54x89mm, int. 80x47x80mm, low plain cover, IP66, IK07, RAL 7035
- MPN
- NSYTBS885
- EAN
- 3606480165214
- Category
- PanelSeT TBS
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYTBS885?

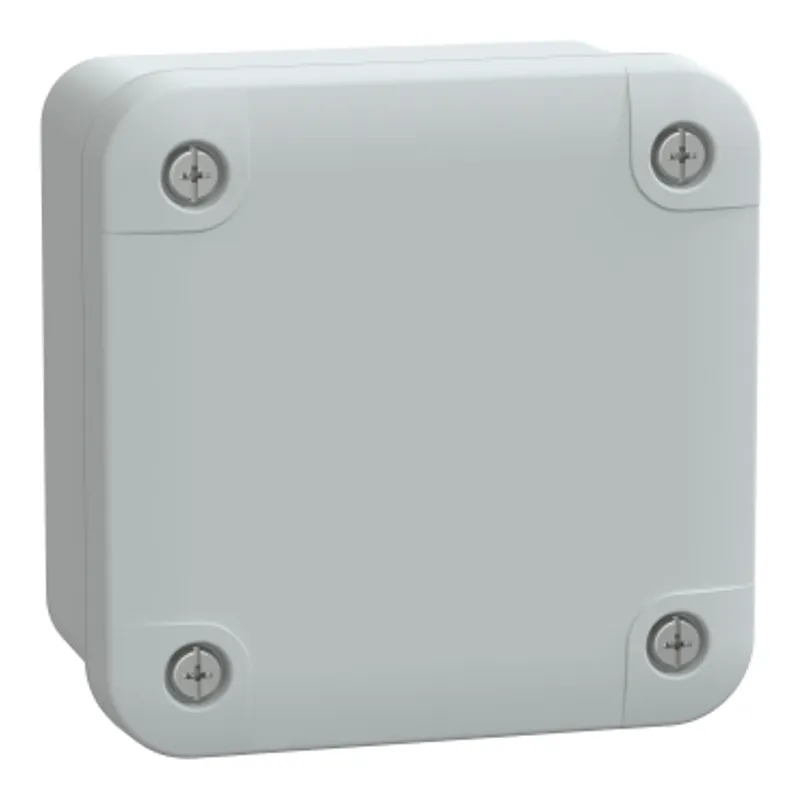

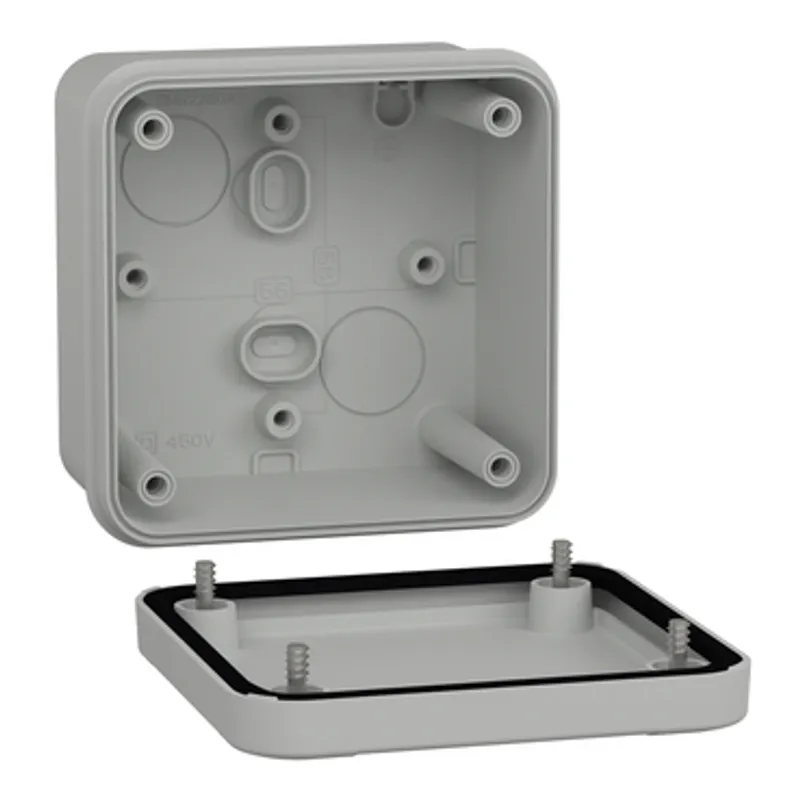

This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications The box has a height, width, and depth of 89 mm, 89 mm, and 54 mm, respectively The internal dimensions of the box are 80 mm x 80 mm x 47 mm The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact and high temperatures The box comes in a grey (RAL 7035) color It has a low plain cover that is fixed with metal screws The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions
Specifications
Specifications
| Range | PanelSeT |
| Device application | Multi-purpose |
| Category | Industrial box |

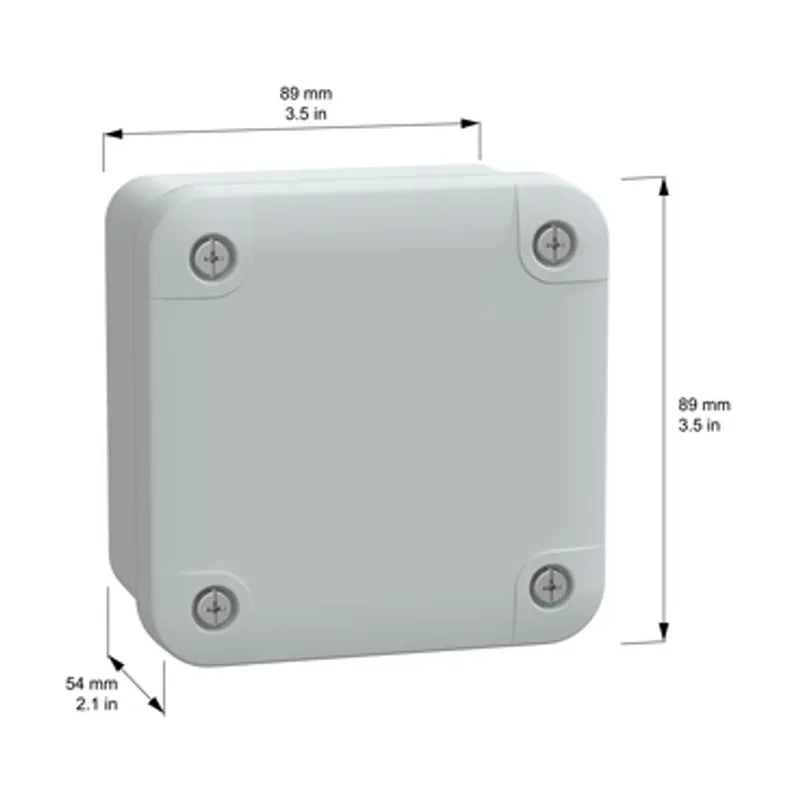

| Height | 89 mm |
| Width | 89 mm |
| Depth | 54 mm |
| Internal height | 80 mm |
| Internal width | 80 mm |
| Internal depth | 47 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Quantity per set | Set of 5 |
| Body type | One piece moulded |
| Type of front cover | Low plain cover |
| Cover fixing | Metal screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | ABS with 45% of post-industrial recycled content |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | TÜV |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Glow wire resistance | 650 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for storage | -15…40 °C |
| Operating temperature | -25…60 °C |
| Net weight | 0.096 kg |
Packaging
| Package 1 | 1 PCE, 8.900 cm × 8.900 cm × 5.400 cm (L × W × H), 94.000 g |
| Package 2 | 160 CAR, 60.500 cm × 40.500 cm × 40.000 cm (L × W × H), 16.360 kg |
| Package 3 | 1920 P12, 120.000 cm × 80.000 cm × 134.500 cm (L × W × H), 207.000 kg |
