Schneider Electric NSYTBP19168T
PC box IP66 IK08 RAL7035 Int.H175W150D80 Ext.H193W164D87 Transp.cover H20
- MPN
- NSYTBP19168T
- EAN
- 3606480165825
- Category
- PanelSeT TBP
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYTBP19168T?

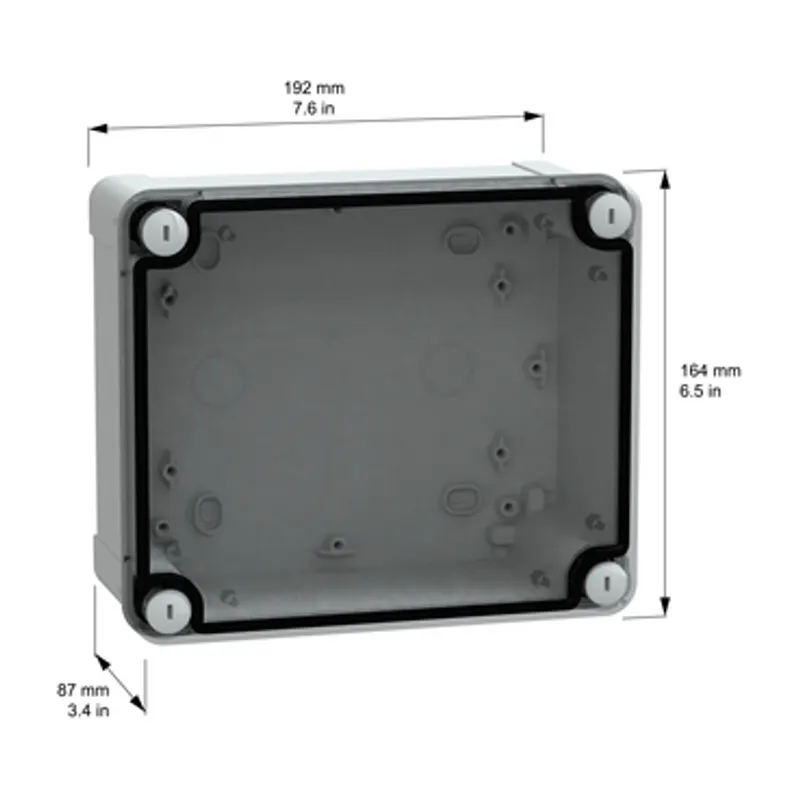

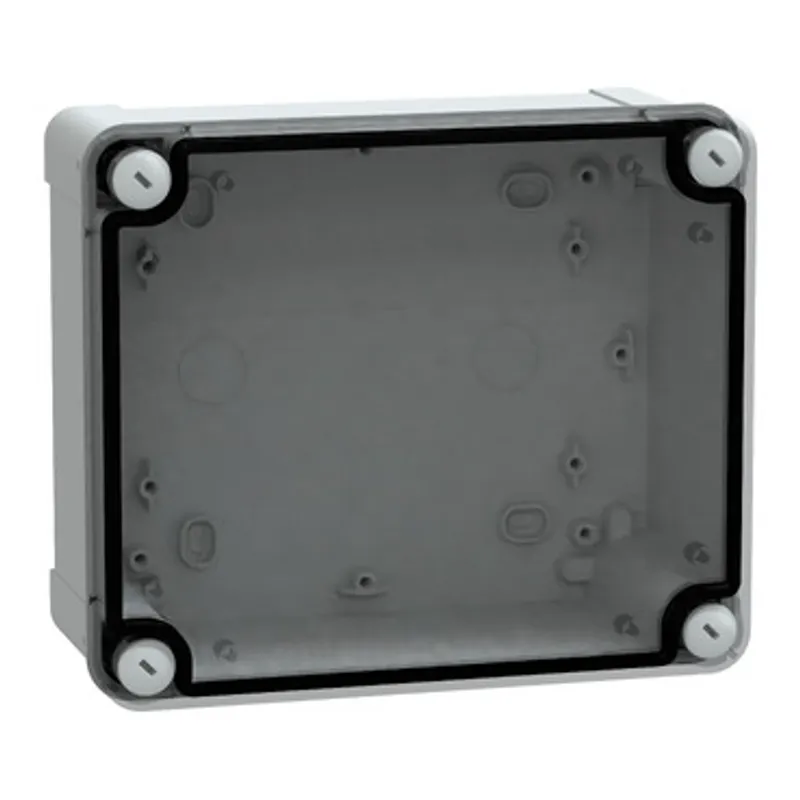

This TBP is a wall-mounted box made of polycarbonate It is designed for multi-purpose applications and can be used indoor or outdoor The box has a grey (RAL 7035) body and a low transparent cover The enclosure has a nominal height, width, and depth of 192 mm, 164 mm, and 87 mm, respectively The internal dimensions of the box are 175 mm x 150 mm x 80 mm The cover is closed by four captive flat screws located outside the sealed area of the box to maintain IP The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT TBP |
| Device application | Multi-purpose |
| Category | Industrial box |
| Height | 192 mm |
| Width | 164 mm |
| Depth | 87 mm |
| Internal height | 175 mm |
| Internal width | 150 mm |
| Internal depth | 80 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Body type | One piece moulded |
| Type of front cover | Low transparent cover |
| Cover fixing | Plastic screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Polycarbonate |
| Colour | Grey (RAL 7035), Transparent |
| Standards | IEC 62208, UL 508 A |
| Product certifications | TÜV, UL |
| Electrical insulation class | Class II |
| Mounting location | Outdoor (with canopy or shelter and anticondensation valve) |
| Net weight | 0.46 kg |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Fire resistance | 960 °C |
| Ambient air temperature for storage | -15…60 °C |
| Operating temperature | -25…80 °C |
Packaging
| Package 1 | 1 PCE, 20.900 cm × 17.400 cm × 10.000 cm (L × W × H), 520.000 g |
| Package 2 | 20 CAR, 60.500 cm × 40.500 cm × 40.000 cm (L × W × H), 11.360 kg |
| Package 3 | 240 P12, 120.000 cm × 80.000 cm × 135.000 cm (L × W × H), 149.000 kg |
