Schneider Electric NSYSFND2082D

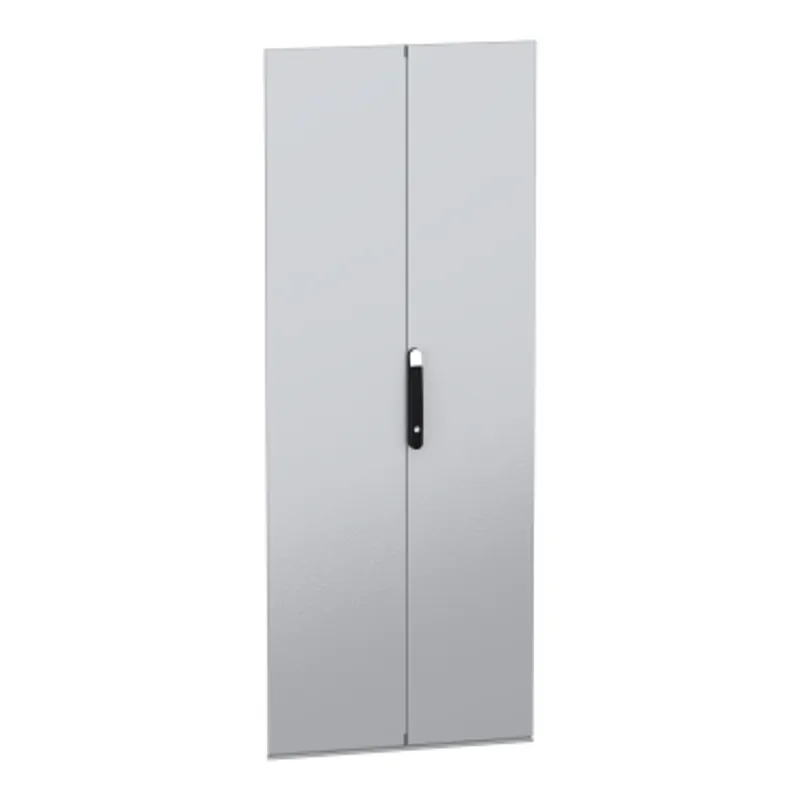

Double plain door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2000 W800mm
- MPN
- NSYSFND2082D
- EAN
- 3606486378137
- Category
- PanelSeT SFN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSFND2082D?
"This steel double door is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications." "It is compatible with PanelSeT SM floor standing steel enclosure." "It has a nominal height and width of 2000 mm and 800 mm, respectively." "The doors are made of steel sheet, while the handle is made of polyamide 6 with 30% fiberglass." "An epoxy-polyester powder finish provides a smooth appearance." "It has a grey (RAL 7035) color with a black (RAL 9005) handle." "They have an aperture up to 120 degrees." "The main door has a four-point lock with a handle that has a 5 mm double-bar insert for security, while the secondary door has a locking bar system with a handle." Minimal use of hazardous substances.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - H: 2000 mm W: 800 mm |
| Mounting location | Front |
| Range compatibility | PanelSeT SFN |
| Device composition | 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 2 door, 1 locking bar system 2 points, 2 reinforcement frame, 8 hinges |
| Quantity per set | Set of 1 |
| Material | Sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Lock type | Lock 5 mm double bar |
| Number of locks | 1 |
| Door type | External plain |
| Door opening side | Reversible (120 °) |
| Maximum load | 60 kg/m² |
| Height | Nominal: 1966 mm |
| Width | Nominal: 769 mm |
| Net weight | 32 kg |
| IK degree of protection | IK10 |
Packaging
| Package 1 | 1 PCE, 201.000 cm × 48.000 cm × 10.000 cm (L × W × H), 36.500 kg |
| Package 2 | 12 PAL, 201.000 cm × 120.000 cm × 78.000 cm (L × W × H), 472.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSFND2082D: frequently asked questions
When can NSYSFND2082D be shipped?
NSYSFND2082D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSFND2082D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSFND2082D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFND2082D, subject to availability and destination.
