Schneider Electric
NSYSFNC88Bottom and top frame, PanelSeT SFN, for electrical enclosure W800 D800mm, roof included
Schneider Electric NSYSFND128T
Glazed door, PanelSeT SFN, for electrical enclosure H1200 W800mm
- MPN
- NSYSFND128T
- EAN
- 3606486378250
- Category
- PanelSeT SFN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSFND128T?
"This glazed door is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications." "It has a nominal height and width of 1200 mm and 800 mm, respectively." "It has a nominal height and width of 1800 mm and 800 mm, respectively." "The door is made of steel sheet and Securit glass, while the handle is made of polyamide 6 with 30% fiberglass." "An epoxy-polyester powder finish provides a smooth appearance." "It has a grey (RAL 7035) color with a black (RAL 9005) handle." "It has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side." "The door has a four-point lock with a handle that has a 5 mm double-bar insert for security." Minimal use of hazardous substances.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |

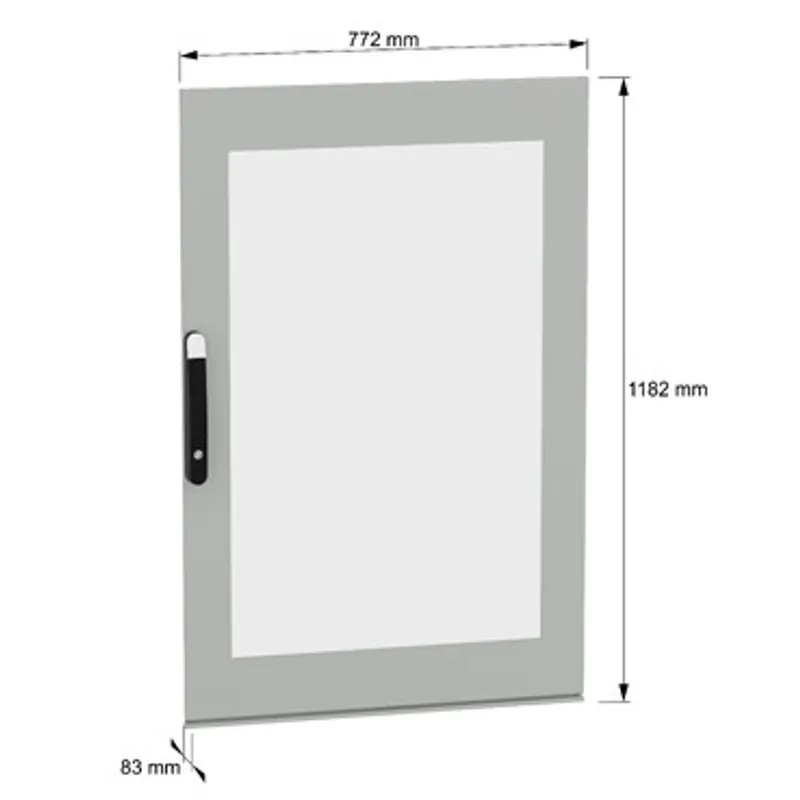

| For enclosure nominal dimensions | - H: 1200 mm W: 800 mm |
| Mounting location | Front, Side |
| Range compatibility | PanelSeT SFN |
| Device composition | 1 door, 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 4 hinges, 4 locking bar catches |
| Quantity per set | Set of 1 |
| Material | Door: Securit glass, Door: sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |

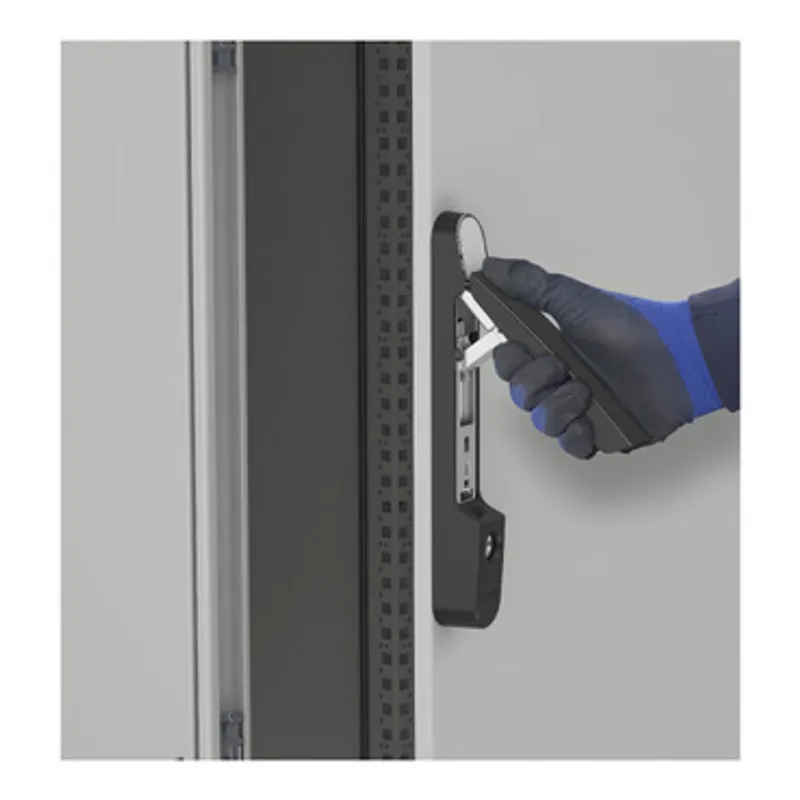

| Lock type | Lock 5 mm double bar |
| Number of locks | 1 |
| Door type | Glazed |
| Door opening side | Reversible (120 °) |
| Height | Nominal: 1200 mm |
| Width | Nominal: 769 mm |
| Net weight | 14 kg |
| IK degree of protection | IK08 |
Packaging
| Package 1 | 1 PCE, 123.000 cm × 78.000 cm × 5.000 cm (L × W × H), 15.500 kg |
| Package 2 | 10 PAL, 123.000 cm × 80.000 cm × 69.000 cm (L × W × H), 181.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSFND128T: frequently asked questions
When can NSYSFND128T be shipped?
NSYSFND128T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSFND128T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSFND128T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFND128T, subject to availability and destination.
