Schneider Electric NSYS3D4320PK3

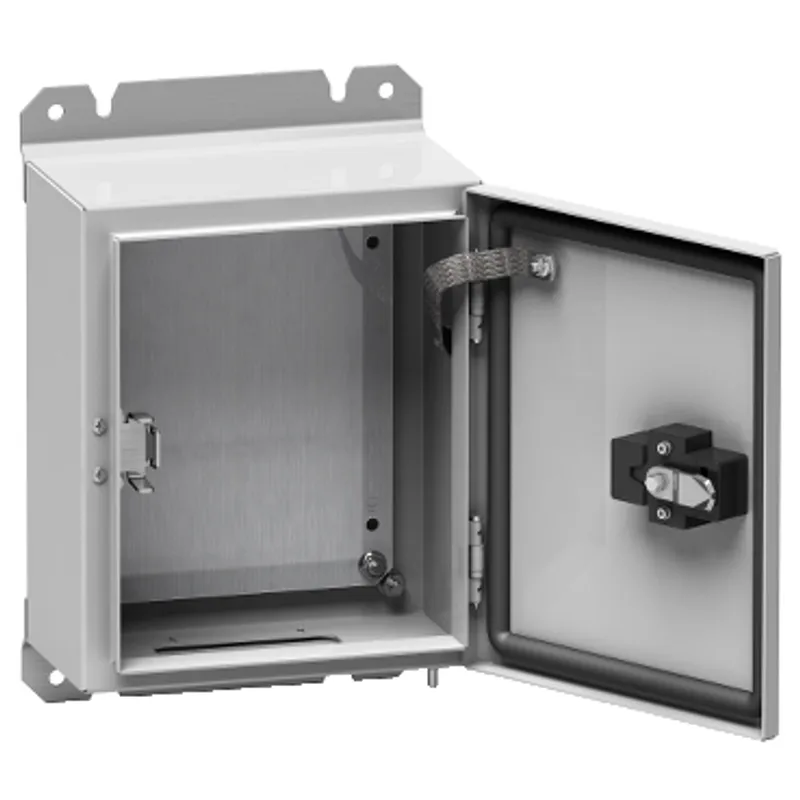

Spacial S3D nuclear plain door with mount.plate - H400xW300xD200 - IP65 - IK10
- MPN
- NSYS3D4320PK3
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYS3D4320PK3?
Schneider Electric Spacial S3D nuclear plain door with mount.plate - H400xW300xD200 - IP65 - IK10, manufacturer part number NSYS3D4320PK3. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | S3D 6G K3 |
| Enclosure application | Nuclear, Seismic |
| Product or component type | Enclosure |
| Enclosure nominal height | 400 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 200 mm |
| Door type | Plain |
| Mounting plate description | Reinforce |
| Enclosure mounting | Wall mounted |
| Device composition | 1 x body, 1 x door, 1 x lock, 2 x fixing bracket, 1 x mounting plate, 1 x earthing components door and lock, 2 x face to face stud inside outside, 1 x cable gland plate |
| Continuity of earth | Earthing connection between body and door |
| Body type | Single piece body, Gutter-shaped front rail |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Right (120 °) |
| Lock type | 1-point closure |
| Type of keylock | EDF 1600 |
| Type of operating handle | Lock button |
| Accessibility for operation | Front |
| Removable parts | Cable gland plate by screws |
| Material | Steel |
| Thickness | Body: 2 mm, Door: 2 mm, Cable gland plate: 1.5 mm |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Surface treatment | Decontaminable painting 0.06 mm series PID 100 conforming to CCTR 90.C.031.06. |
| Standards | S3D 6G K3 manufactured process answers to the K3 requirements according to the RCCE 2012, CCTR 90.C.031.06, IEC 62208, EDF CRT 91 C 112 00 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Seismic performance | Seismic tests 6G conforming to EDF CRT 91 C 112 00 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 33.0 cm × 26.0 cm × 49.0 cm (L × W × H), 14.0 kg |
