NSYS3D3215Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 300x200x150mm, IP66, IK10
Schneider Electric NSYS3D32515PK3

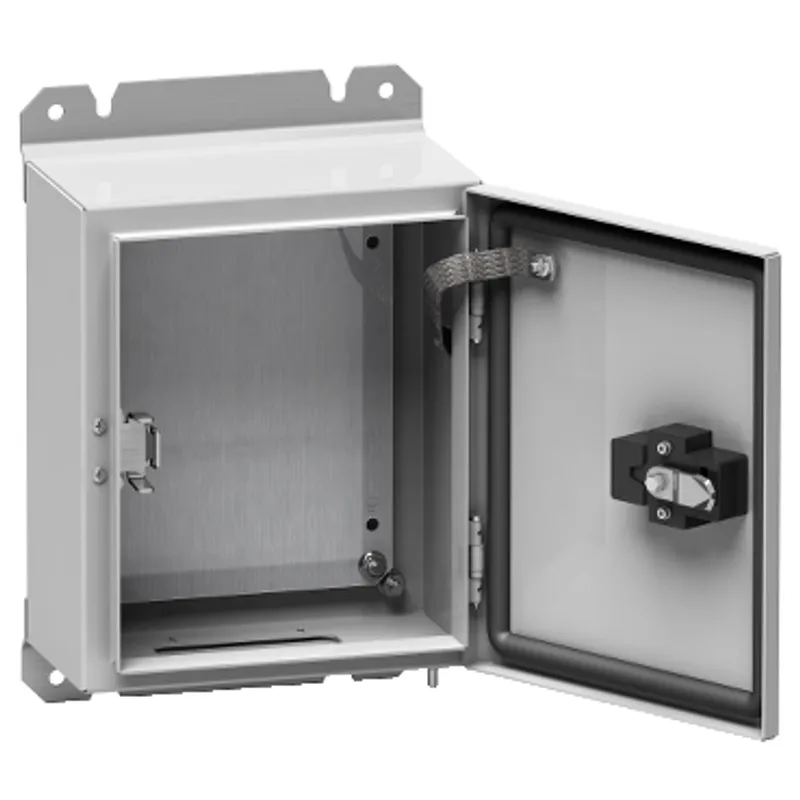

Spacial S3D nuclear plain door with mount.plate - H300xW250xD150 - IP65 - IK10
- MPN
- NSYS3D32515PK3
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYS3D32515PK3?
Schneider Electric Spacial S3D nuclear plain door with mount.plate - H300xW250xD150 - IP65 - IK10, manufacturer part number NSYS3D32515PK3. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | S3D 6G K3 |
| Enclosure application | Nuclear, Seismic |
| Product or component type | Enclosure |
| Enclosure nominal height | 300 mm |
| Enclosure nominal width | 250 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Plain |
| Mounting plate description | Reinforce |
| Enclosure mounting | Wall mounted |
| Device composition | 1 x body, 1 x door, 1 x lock, 2 x fixing bracket, 1 x mounting plate, 1 x earthing components door and lock, 2 x face to face stud inside outside, 1 x cable gland plate |
| Continuity of earth | Earthing connection between body and door |
| Body type | Gutter-shaped front rail, Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Right (120 °) |
| Lock type | 1-point closure |
| Type of keylock | EDF 1600 |
| Type of operating handle | Lock button |
| Accessibility for operation | Front |
| Removable parts | Cable gland plate by screws |
| Material | Steel |
| Thickness | Body: 2 mm, Door: 2 mm, Cable gland plate: 1.5 mm |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Surface treatment | Decontaminable painting 0.06 mm series PID 100 conforming to CCTR 90.C.031.06. |
| Standards | S3D 6G K3 manufactured process answers to the K3 requirements according to the RCCE 2012, CCTR 90.C.031.06, IEC 62208, EDF CRT 91 C 112 00 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Seismic performance | Seismic tests 6G conforming to EDF CRT 91 C 112 00 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 28.0 cm × 21.0 cm × 39.0 cm (L × W × H), 9.0 kg |
NSYS3D32515PK3: frequently asked questions
When can NSYS3D32515PK3 be shipped?
NSYS3D32515PK3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3D32515PK3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3D32515PK3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3D32515PK3, subject to availability and destination.
