Schneider Electric NSYPLAZT573G

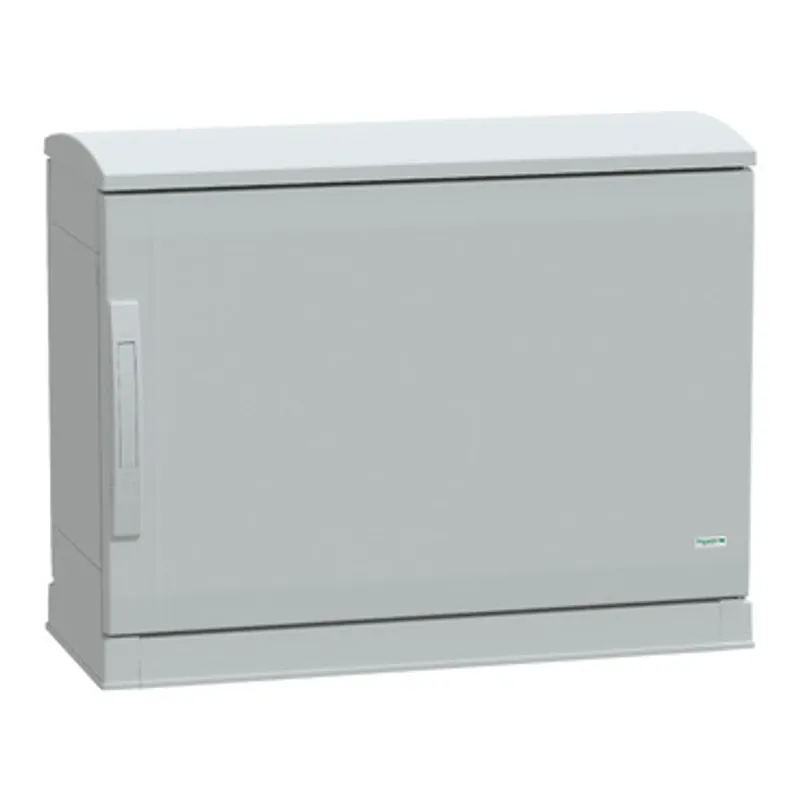

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 500x750x320mm, IP44, IK10
- MPN
- NSYPLAZT573G
- EAN
- 3606480776250
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYPLAZT573G (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYPLAZT573G?
Schneider Electric Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 500x750x320mm, IP44, IK10, manufacturer part number NSYPLAZT573G. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLAZT |
| Nominal height | 500 mm |
| Nominal width | 750 mm |
| Nominal depth | 320 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 canopy, 1 plinth |
| Body type | Open top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (180 °) |
| Lock type | 2 points handle lock, 5 mm double-bar |
| Accessibility for operation | Bottom, Front, Rear, Top |
| Removable parts | Door by hinges, Rear panel by fixing element, Canopy by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | Veritas |
| Electrical insulation class | Class II |
| IP degree of protection | IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
Packaging
| Package 1 | 1 PCE, 78.000 cm × 60.000 cm × 37.000 cm (L × W × H), 22.000 kg |
| Package 2 | 6 PAM, 120.000 cm × 100.000 cm × 135.000 cm (L × W × H), 144.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYPLAZT573G: frequently asked questions
Can I still buy the NSYPLAZT573G now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYPLAZT573G, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYPLAZT573G be shipped?
NSYPLAZT573G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPLAZT573G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPLAZT573G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLAZT573G, subject to availability and destination.
