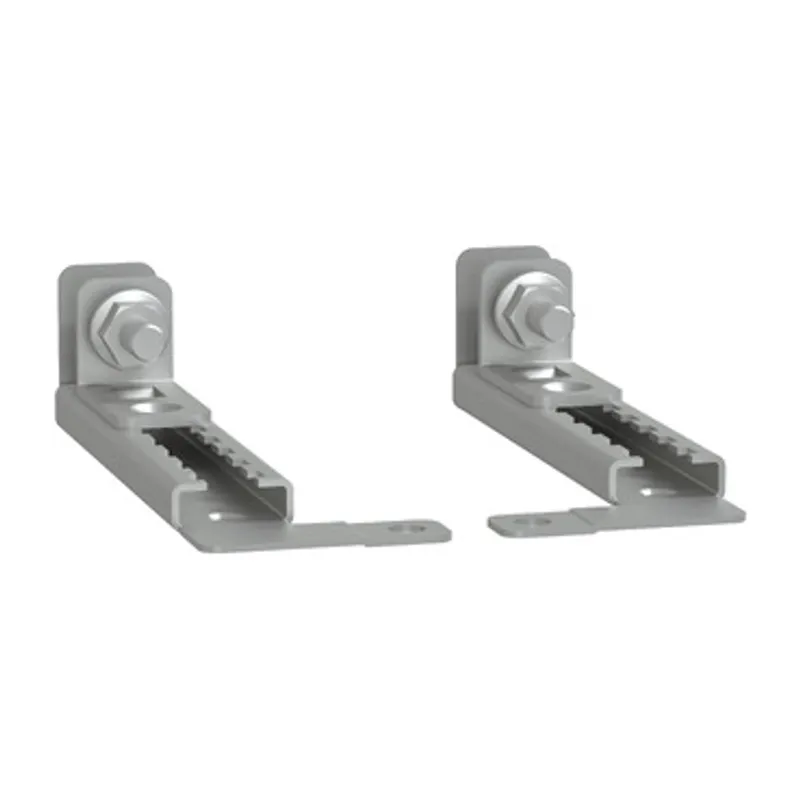

Schneider Electric NSYDPLM200
Set of 4 step slides with brackets for adjustment of m.plate in PLM 43and 54
- MPN
- NSYDPLM200
- EAN
- 3606480191831
- Category
- PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYDPLM200?
Set of 4 step slides with brackets for adjustment of mounting plate in PLM 43/54. Max depth adjustment is 156 mm, Min depth adjustment is 94 mm. Multi-purpose mounting accessory. Mounting on sides of enclosure. Adjustment is In depth of the plate or other accessories in steps of 12.5 mm. Galvanised Steel. 4 sliding rails and 4 sliding support incl.
Specifications
Specifications
| category | Mounting accessory |
| Product or component type | Step slide |
| Range compatibility | PanelSeT PLM |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | Sides of enclosure |
| Device composition | 4 sliding rails, 4 sliding support, fixing elements |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing element - enclosure boss location |
| Adjustment | In depth of the plate or other accessories in steps of 12.5 mm |
| Depth | Maximum depth adjustment : 156 mm, Minimun depth adjustment : 94 mm |
Packaging
| Package 1 | 1 PCE, 18.500 cm × 8.500 cm × 7.000 cm (L × W × H), 664.000 g |
| Package 2 | 128 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 104.480 kg |
