Schneider Electric
NSYCTL500DLPGPlain front panel insulating material for DLP in PLA enclosure W500mm H146mm
Schneider Electric NSYCTL750DLPG
Plain front panel insulating material for DLP in PLA enclosure W750mm H146mm
- MPN
- NSYCTL750DLPG
- EAN
- 3606480773792
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

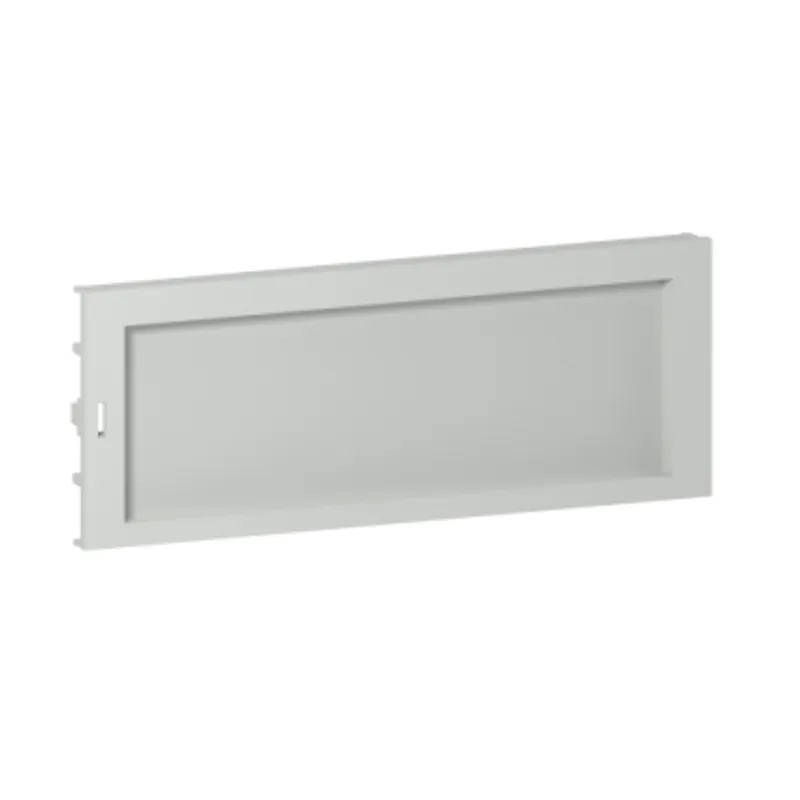

What is the Schneider Electric NSYCTL750DLPG?
Plain grey cover plate (RAL 7035) made from PS (polystyrene) for PanelSeT PLA enclosures Mounted by fixing-clips on DL chassis The nominal width is 750mm and real width is 652mm The nominal height is 150mm and real height is 146mm The plate is 2mm thick Suitable for enclosures of 750mm width The kit is made up of 2 panels The product can be used in modular distribution applications
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Cover plate |
| Anwendung | Modular distribution application |
| Range compatibility | PanelSeT PLA |
| Nominal dimensions of the housing | - W: 750 mm |
| Mounting location | On DL chassis |
| Device composition | 2 panel |
| Material | PS (polystyrene) |
| Colour | Grey (RAL 7035) |
| Fixing mode | Clipped |
| Type of front plate | Plain |
| Height | Nominal: 150 mm, Real: 146 mm |
| Width | Nominal: 750 mm, Real: 652 mm |
| thickness | 2 mm |
Packaging
| Package 1 | 1 PCE, 78.000 cm × 16.000 cm × 2.500 cm (L × W × H), 400.000 g |
| Package 2 | 2 CAR, 78.000 cm × 16.000 cm × 5.000 cm (L × W × H), 800.000 g |
| Package 3 | 20 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 8.000 kg |
