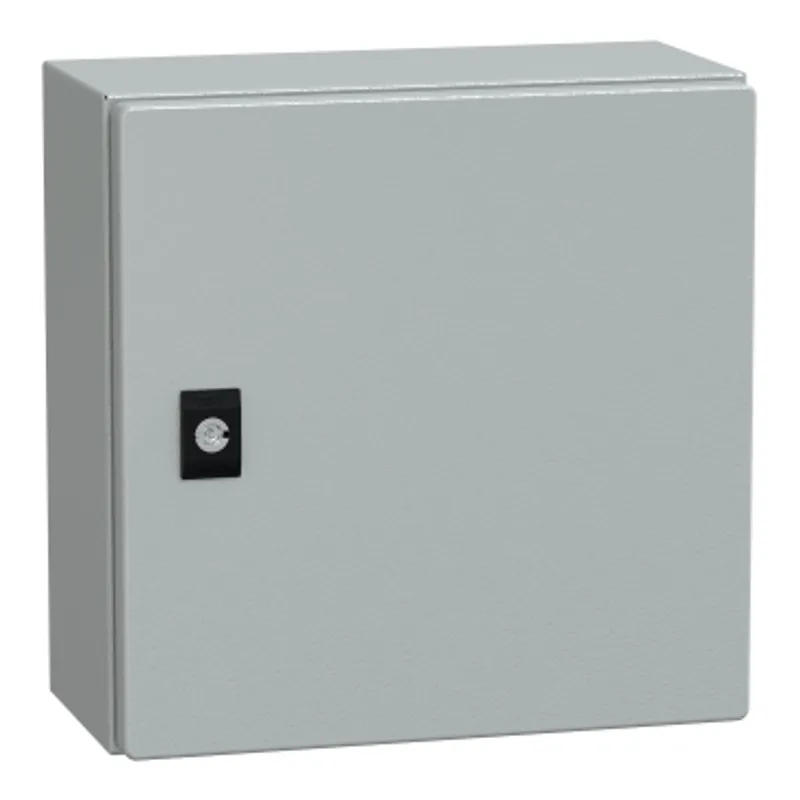

PanelSeT CRN plain door w/o mount.plate. H300xW300xD150 IP66 IK10 RAL7035..
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4.25 kg |
Shipping & availability
When can NSYCRN33150 be shipped?
NSYCRN33150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCRN33150 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCRN33150 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN33150, subject to availability and destination.

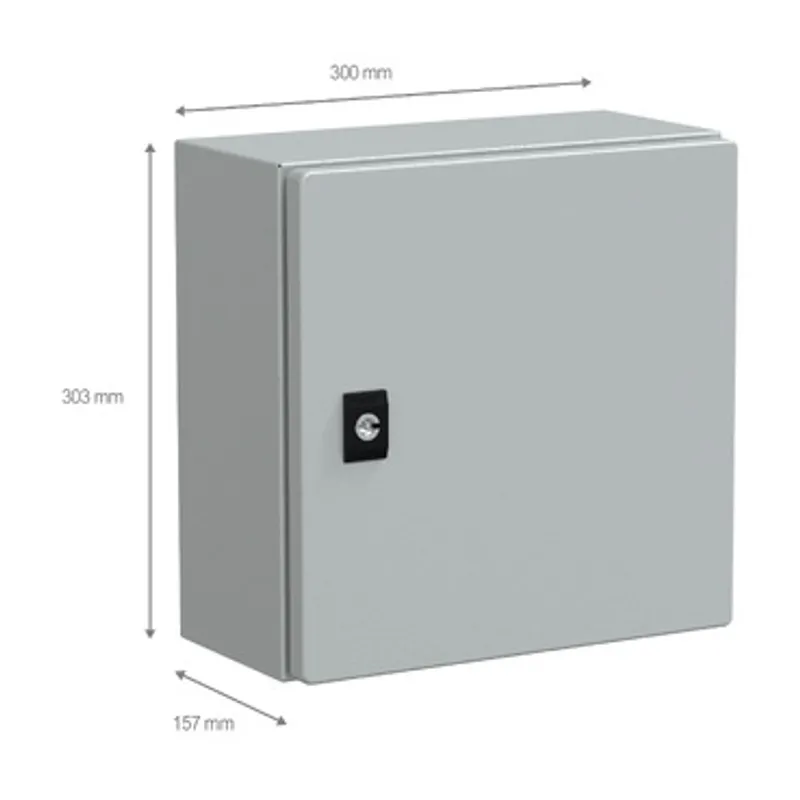

Spacial CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 300mm, 300mm, and 150mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door, and a lock It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 4,25kg It is certified by cUL, UL, and DNV-GL standards The variant particularity of the enclosure is that the back is welded with double profiles forming a protected sealed area and the sides are made from a single folded section
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 300 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 150 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 cable gland plate, 1 door, 1 lock |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| body type | Back welded with double profile forming a protected sealed area, Sides made from a single folded section |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, UL, DNV-GL |
| Net weight | 4.25 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.500 cm |
| Package 1 Width | 31.000 cm |
| Package 1 Length | 31.000 cm |
| Package 1 Weight | 4.250 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 126 |
| Package 2 Height | 198.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 548.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
