Schneider Electric
NSYCRN108300TPanelSeT CRN tspt door w/o mount.plate. H1000xW800xD300 IP66 IK08 RAL7035..
Schneider Electric NSYCRN1210400D
Double plain steel door, PanelSeT CRN, without mounting plate, 1200x1000x400mm, IP55, IK10, RAL7035
- MPN
- NSYCRN1210400D
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

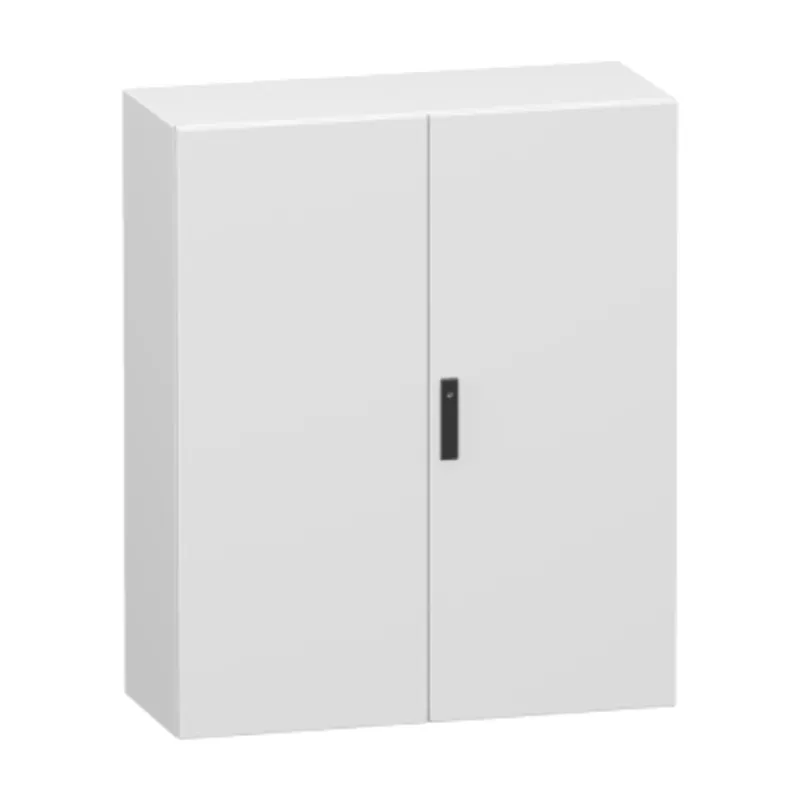

What is the Schneider Electric NSYCRN1210400D?
This PanelSeT CRN is a double-door wall-mounting double-door enclosure that is suitable for multi-purpose applications. It has a nominal height, width, and depth of 1200 mm, 1000 mm and 400 mm, respectively. The body of the enclosure are made of galvanized steel for durability. The doors are made of steel sheets, have an aperture up to 120 degrees and are reversible, meaning they can be opened from either side. It has a 3-mm standard double-bar lock. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color. The enclosure has IP55 and UL Types 1, 12 and 13 rating, which makes it resistant to dust, water and oil ingress. The enclosure has IP55 and UL Types 1, 12 and 13 rating, which makes it resistant to dust, water and oil ingress.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |

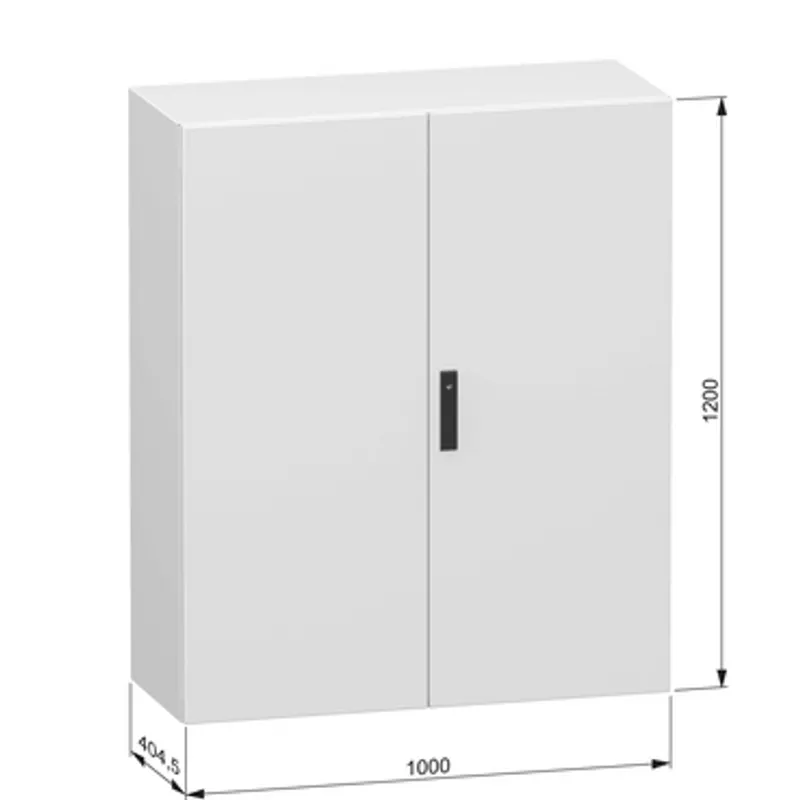

| Enclosure nominal height | 1200 mm |
| Enclosure nominal width | 1000 mm |
| Enclosure nominal depth | 400 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 lock, 2 cable gland plate: bottom, 2 door |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| body type | Single piece body |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 5 mm double-bar |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, UL |
| Net weight | 63.5 kg |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 49.000 cm × 104.500 cm × 133.000 cm (L × W × H), 65.500 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCRN1210400D: frequently asked questions
When can NSYCRN1210400D be shipped?
NSYCRN1210400D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCRN1210400D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCRN1210400D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN1210400D, subject to availability and destination.
